Operating and display elements, operating modes
Operating and display elements
5 Operating and display elements, operating modes
5.1 Operating and display elements
5.1.1 Overview
1 Main switch.
See chapter "5.1.2 Main switch".
2 Control panel.
See chapter "5.1.3 Control panel".
3 TOUCHSCREEN.
See chapter "5.1.6 Touchscreen structure"
4 Control panel, web guide (optional).
See chapter "5.1.4 Control panel, web guide (optional)".

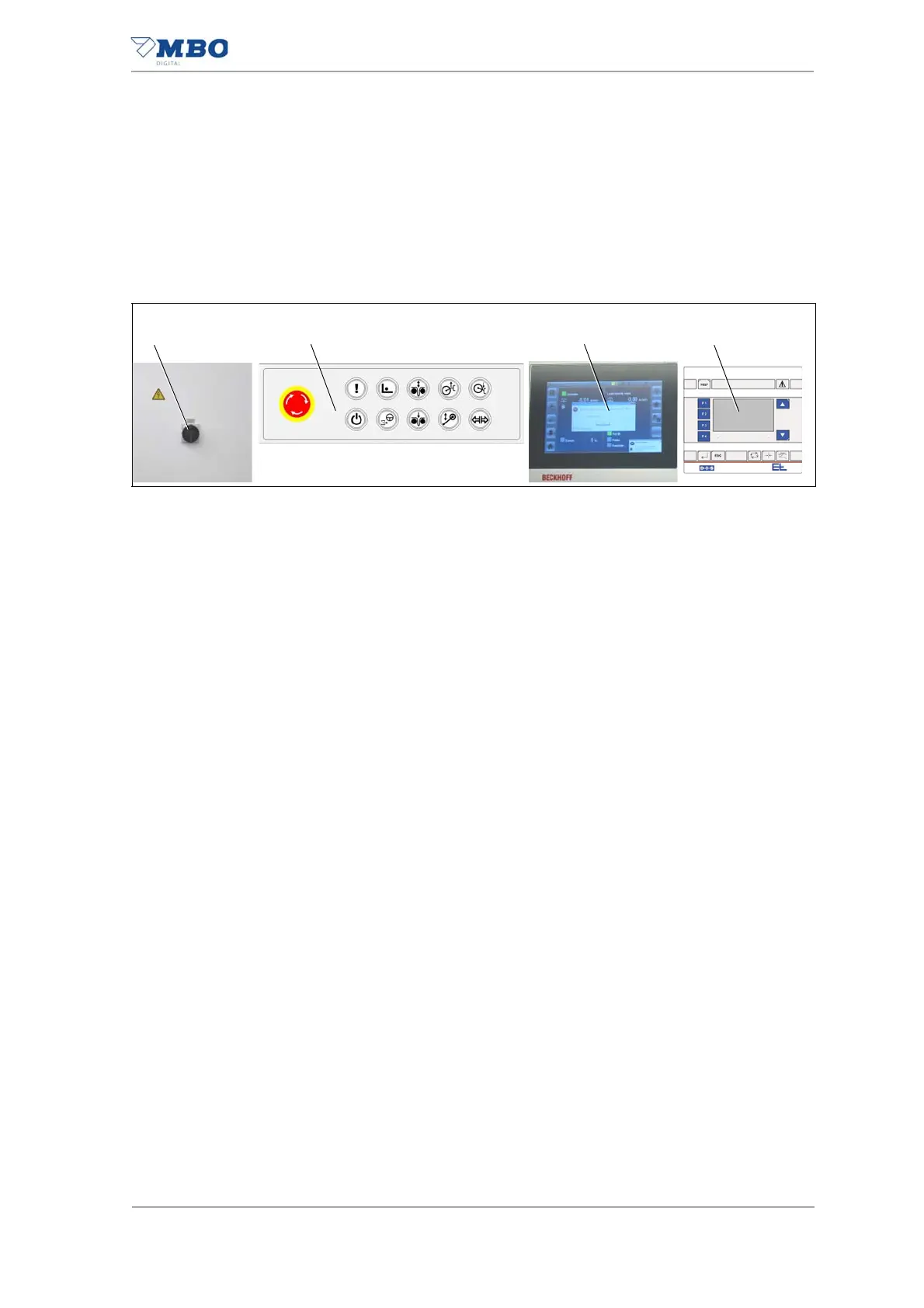

Illustration 24: Overview, operating and display elements
2
1
3
4
