Rewinder RW500
Operating and display elements, operating modes
Operating and display elements
5.1.11.1 <Software diagnosis> page
5.1.11.2 <Diagnosis/input signals> page
This page displays the signals of the inputs.
Active inputs are displayed in green.
Inactive inputs are displayed in gray.
1 <Scroll diagnostic pages forwards> function key
2 <Scroll diagnostic pages backwards> function key

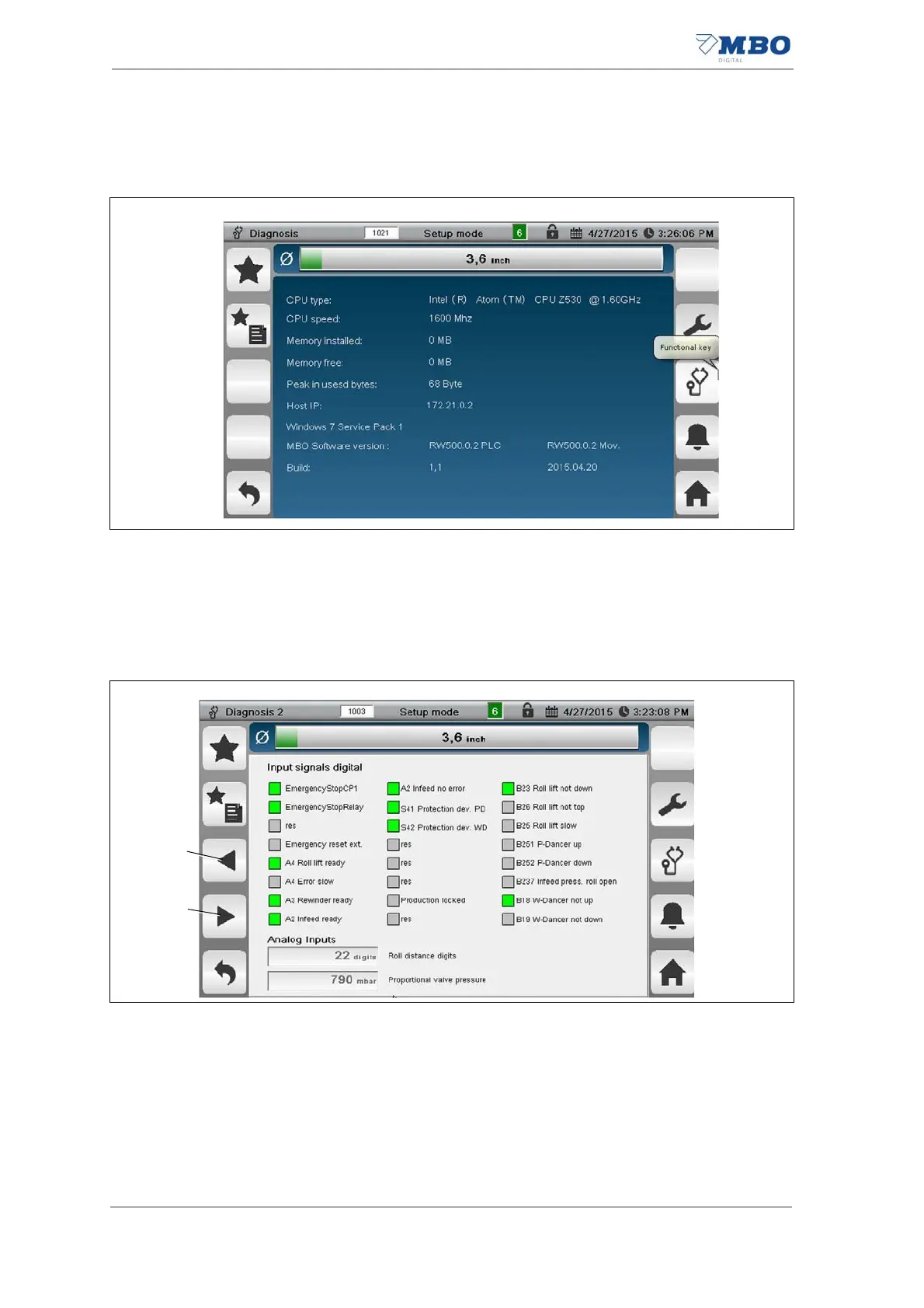

Illustration 38: <Software diagnosis> page
Illustration 39: <Diagnosis/input signals> page
