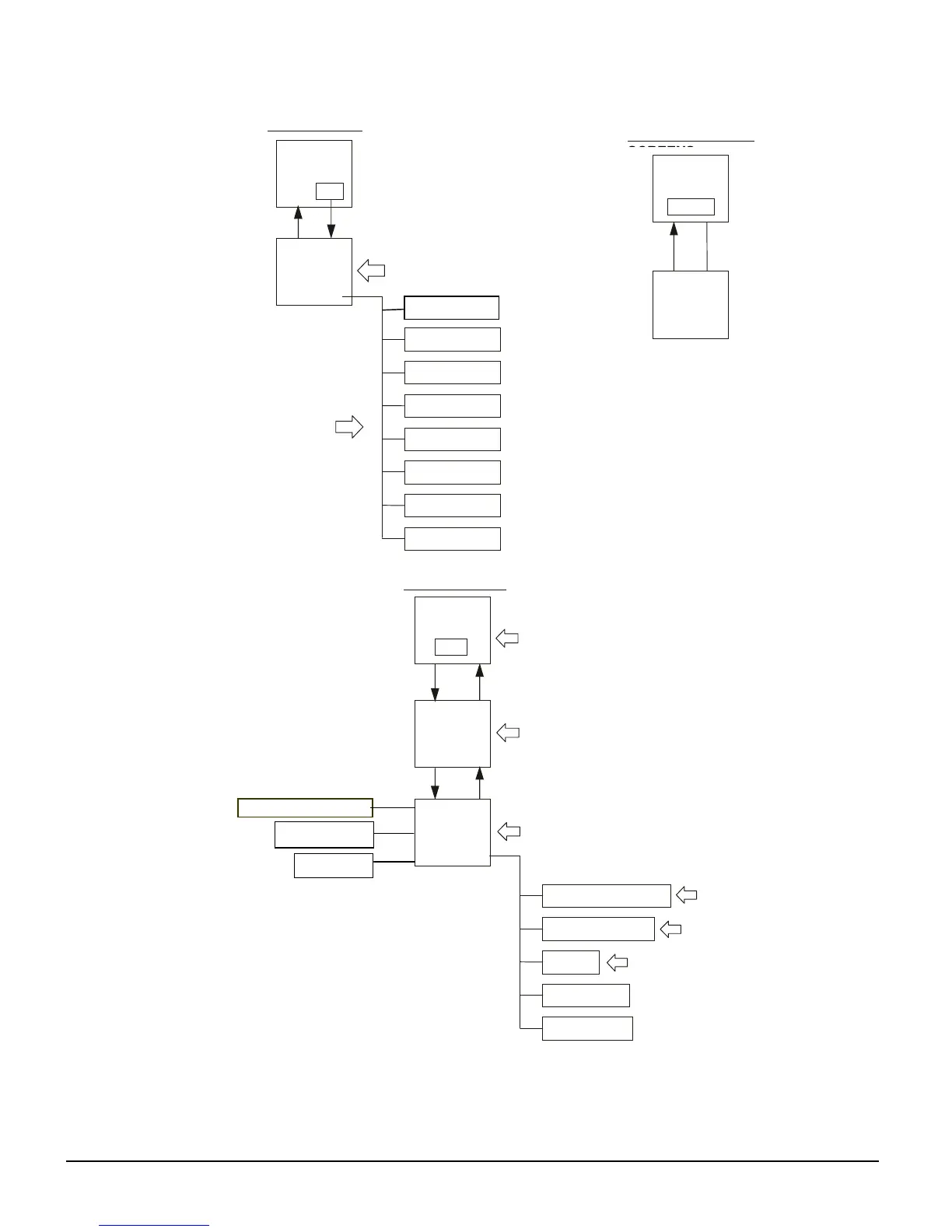

Figure 4, OTIS Screen Layout
HOME
SCREEN
SETPOINTS
HOME
SCREEN
TREND
OR
ALARM
HISTORY
TIMERS
ALARMS
VALVE (TOWER)
TOWER (FANS)
MOTOR
MODES
WATER
SET
PRESS SET
PRESS VIEW
SEE FIGURE 12
EACH GROUP OF
SETPOINTS HAVE
SETTING AND RANGE
EXPLAINED ON SCREEN
HISTORY
PRESS HISTORYPRESS VIEW
SET SCREENS
HOME
SCREEN
DETAIL
VIEW
SCREEN
COMPRESSOR STATE
COMPRESSOR I/O
UNIT I/O
EVAPORATOR
CONDENSER
VIEW
PRESS VIEW
PRESS VIEW
SEE FIGURE 5
SEE FIGURE 8
SEE FIGURE 9
SEE FIGURE 10
Pressing VIEW from any sub-menu will toggle back to the home screen.
Pressing MENU when in any sub-menu will return to the view screen.
Pressing SET or HISTORY will go to these groups of menus.
VIEW SCREENS
HISTORY
SCREENS
SEE FIGURE 4
PRESS VIEW
PRESS MENU
MENU
LABELED BAR GRAPHS
SEE FIGURE 7
BAR GRAPHS
CHILLER
POWER
