Optional Starter Screens

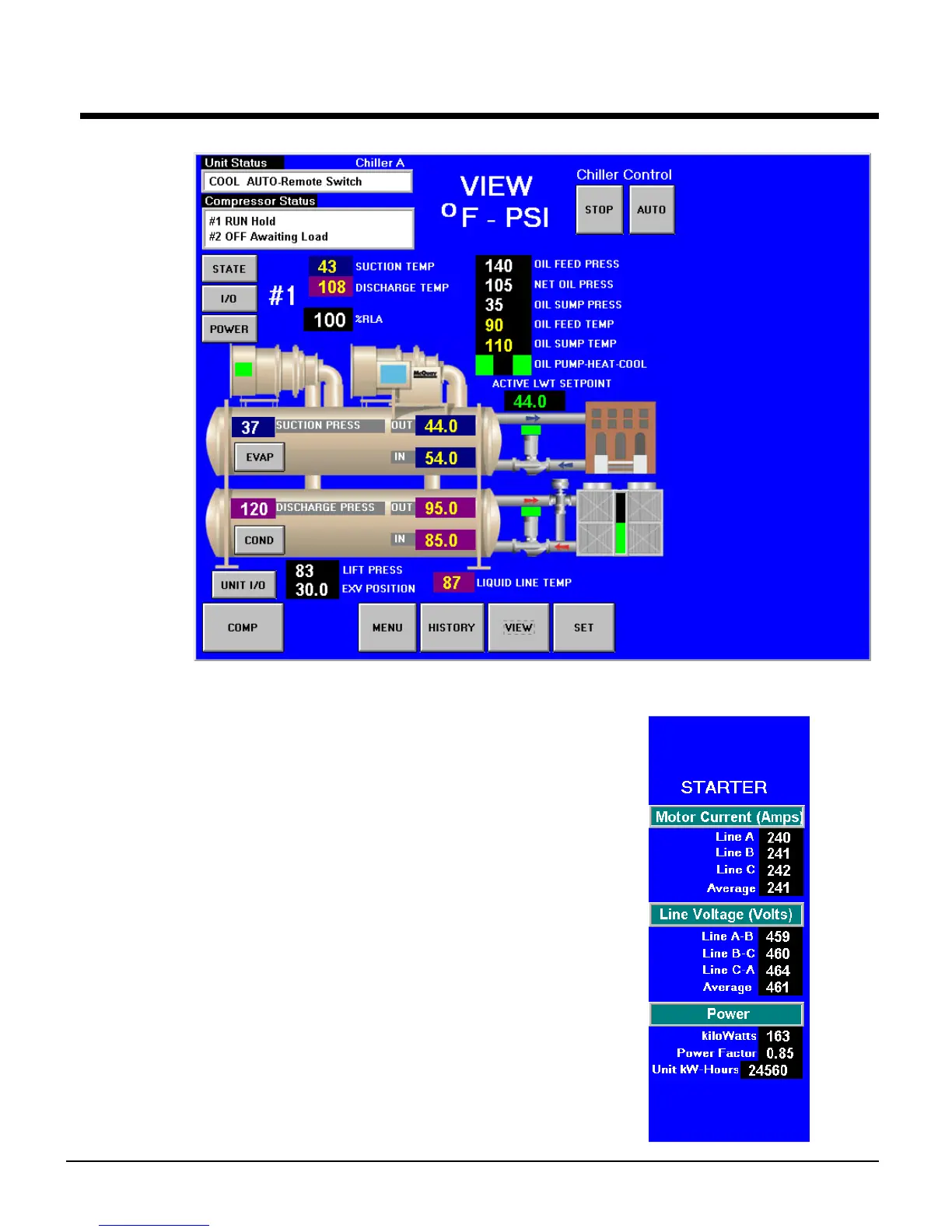

Figure 34, Optional Starter View Screen
The ability to view the starter(s) electrical performance and to set starter setpoints on the operator
interface screen is an optional extra available at the time of purchase.
If the option is supplied on the unit, the “STARTER” button will be
visible on the upper left side of the VIEW screen as shown above.
Pressing the button will open the screen shown to the right.
Figure 35, Expanded Starter View Screen
The screen shown to the right will be superimposed on the right side
of the VIEW screen shown in Figure 35 when the optional “Full
Meter Display” is included with the unit.
If the “Full Meter Display” package is not ordered, only the Percent
Unit RLA amps will appear on the Home screen. This screen will
remain visible until another display button; such as STATE, I/O, etc,
is selected.
