McQuay TSC User Manual

OM Centrif Micro ΙΙ-5 83
Medium/High Voltage Starters, 2300V – 7.2KV
This section contains information on medium voltage, across-the-line and solid state starters as
manufactured by Benshaw Inc. for McQuay centrifugal Chillers. Medium voltage starters have
similar software (Micro II) and are grouped together in this manual. Model numbers are as
follows:
MVSS36 to MVSS30 Solid State, 2300V, Free Standing
MVSS50 to MVSS21 Solid State, 3300V, Free Standing
MVSS40 to MVSS20 Solid State, 4160V, Free Standing
HVSS42 to HVSS05 Solid State, 5.1KV to 7.2KV, Free Standing
MVAT12 to MVAT36 Across-the-Line, 2300V, Free Standing
MVAT16 to MVAT25 Across-the-Line, 3300V, Free Standing
MVAT13 to MVAT26 Across-the-Line, 4160V, Free Standing
HVAT27 Across-the-Line, 6600V, Free Standing

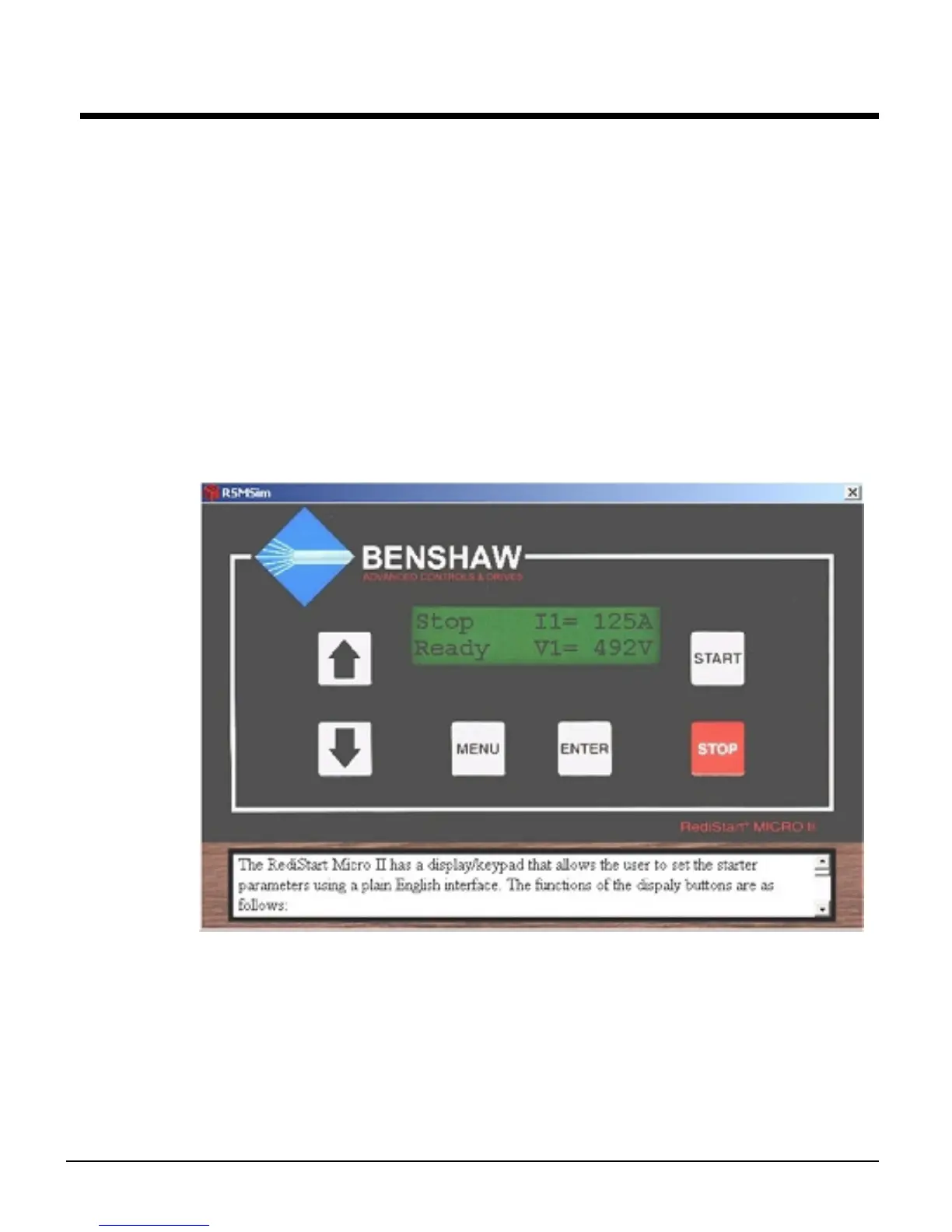

Figure 39, LED Display/Keypad
