14 PACKING

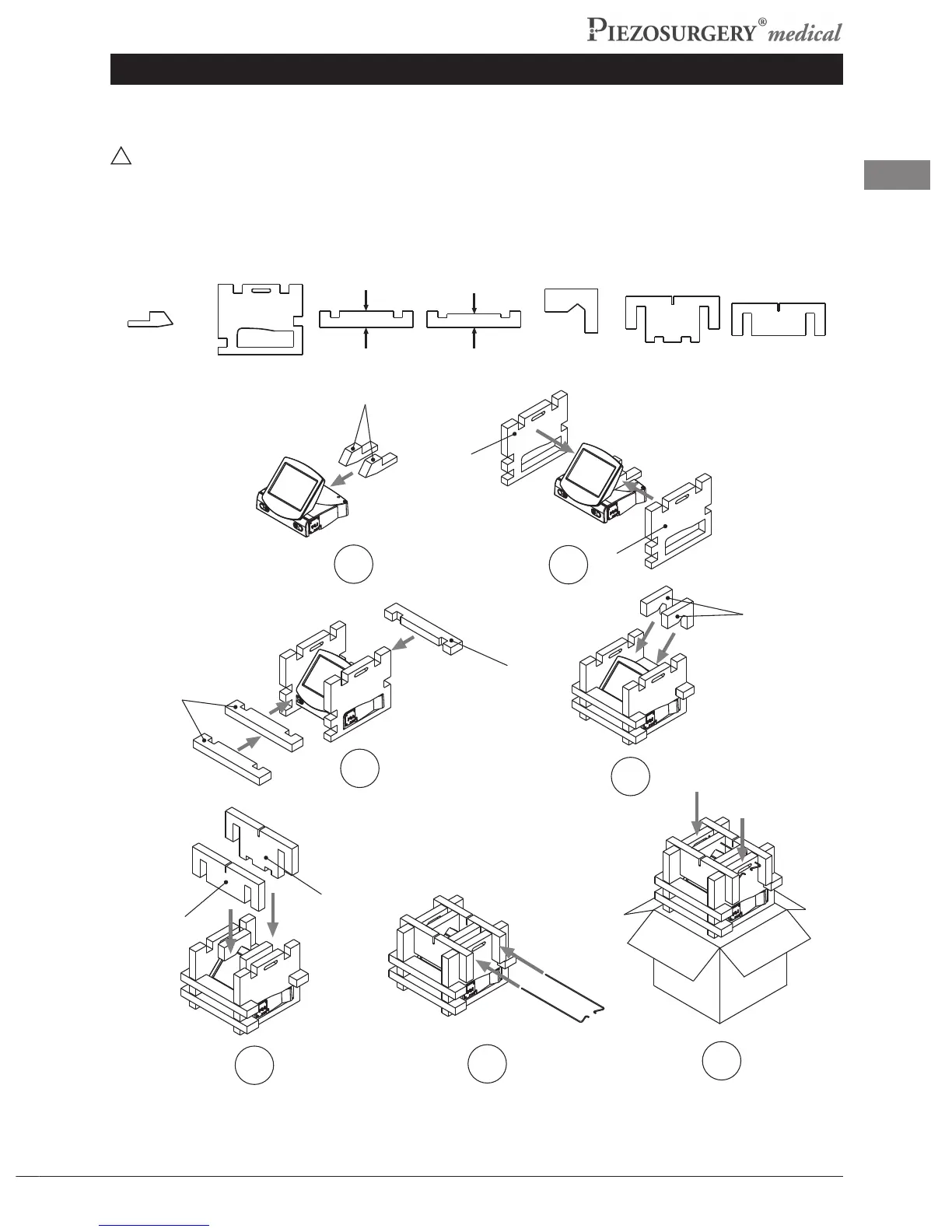

TopackthedevicefollowthestepsindicatedinPic.27,afterhavingremovedtheperistalticpumps.
Thestepsarealsoillustratedonthecardboardlidofthepacking.

WARNING:
When packing, place particular attention on parts C and D since these are similar but differ in
size and position in the packing.
A B C D E F G
x2 x2 x2 x1 x1 x1 x1
7 cm
9 cm
A
1
B
B
2
4
E
C
D
3
7
6
G
F
5
Pic.27
