Medifab Shuttle Discovery - Assembling the Discovery Seat; Attaching the thoracic laterals; Attaching the footplate over hanging padding; Attaching the seat padding

16

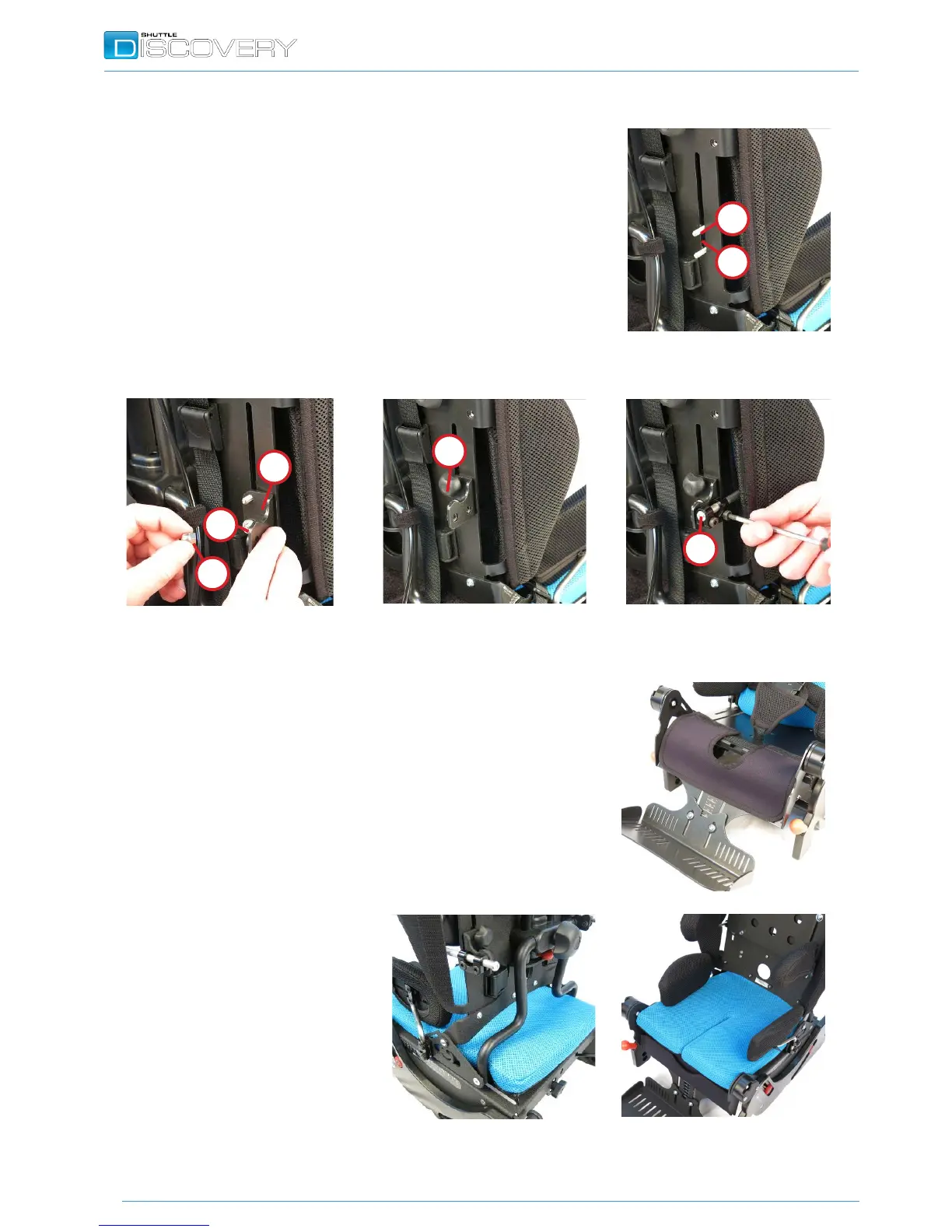

Attaching the thoracic laterals
Raise the backrest height (see Page 21) and lift the backrest foam out of the way
(if attached). Place the two plastic washers (B) onto the thread of the clamping
plate (A), insert the clamping plate into the slots.
Slide the thoracic height bracket (C) onto the exposed threads.
Secure the lower thread with a metal washer (D) and lightly tighten the nut (G)
with a ring spanner/socket. Secure the top thread with a metal washer (D) and
the knob (E).
Ensure the thoracic height bracket (C) slides up and down smoothly. (The
bracket height is set using the knob (E).)
Secure the thoracic pad to the thoracic bracket (C) with screws (F).
Follow the same procedure to secure the opposite thoracic lateral.
Attaching the footplate over hanging padding
Attach the over-hanging padding to the front edge of the seat using the Velcro.
Attaching the seat padding
Secure the padding to the seat base and rear of the seat base using the Velcro.
NOTE:
Ensure the Velcro on the seat base and
padding is regularly cleaned (refer page
57).
A
B
C
D
E
F
G
Assembling the Discovery Seat
