Independent Hip Guide

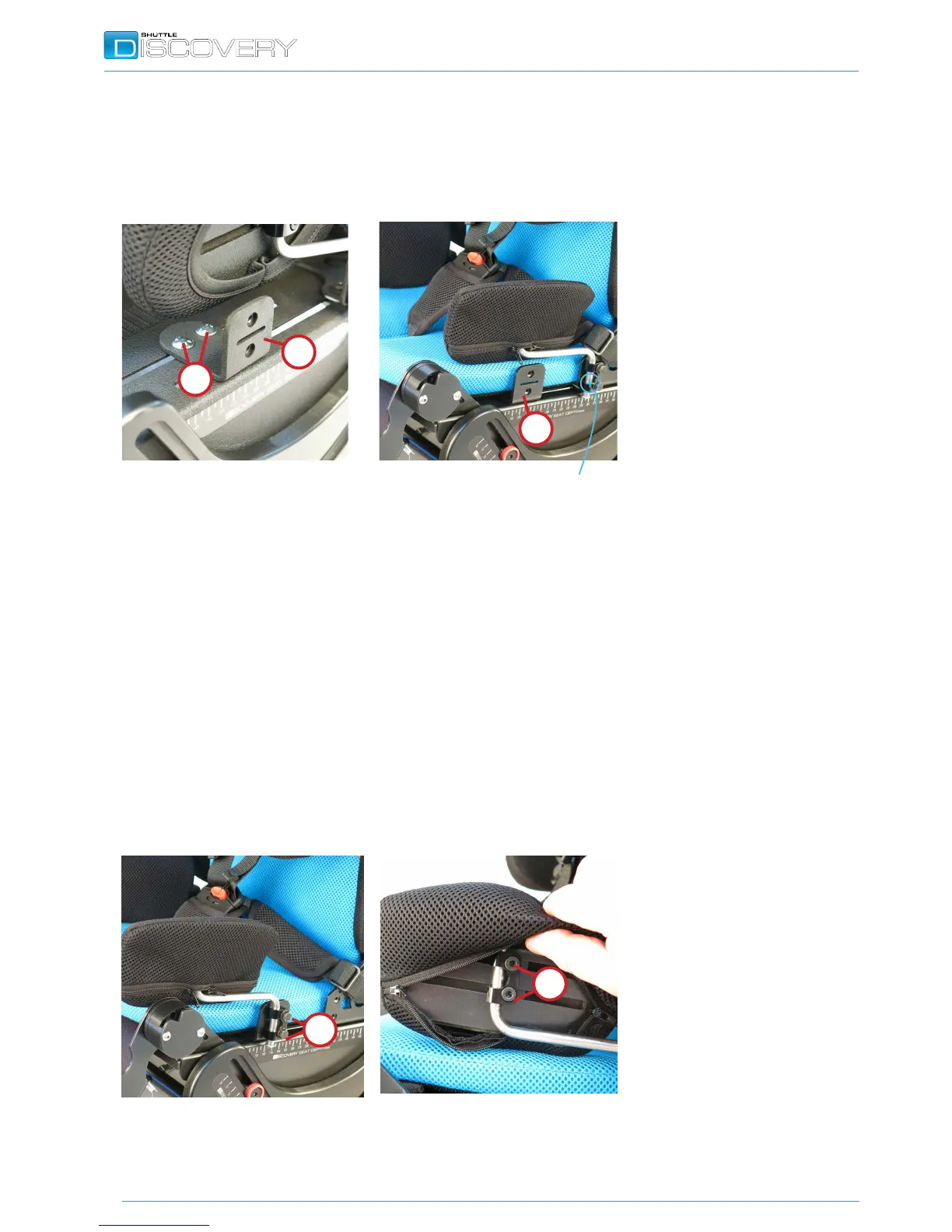

Attach the two brackets (A) to the seat base through the inner slot.
Place the 2 coach bolts (B) in the bracket and secure with the nuts and washers
under the seat base. Position the bracket as required and tighten the nuts.
Securing the Hip Guide
Detach the hip guide from the backrest by completely undoing the bolts and re-
secure it to the bracket (A). Follow the same procedure for the opposite side.
Hip guide / Seat width Adjustment
Loosen the two screws (D) and two bolts (C) by a few turns. Now the hip guide
width, depth and angle can be adjusted.
Once an optimum position is attained retighten the screws (D) and bolts (C).
To adjust hip guides front to back loosen bolts (B). Tighten the bolts (B) after
adjustment.
NOTE:
Ensure both hip guides are central to the backrest
clamping
bracket
A
B
A
D
C
