Fitting the Tray Mounting Bracket
NOTE:
The mounting block (A) is right and left handed. The slot in the mounting block (B)
should be facing towards the front.

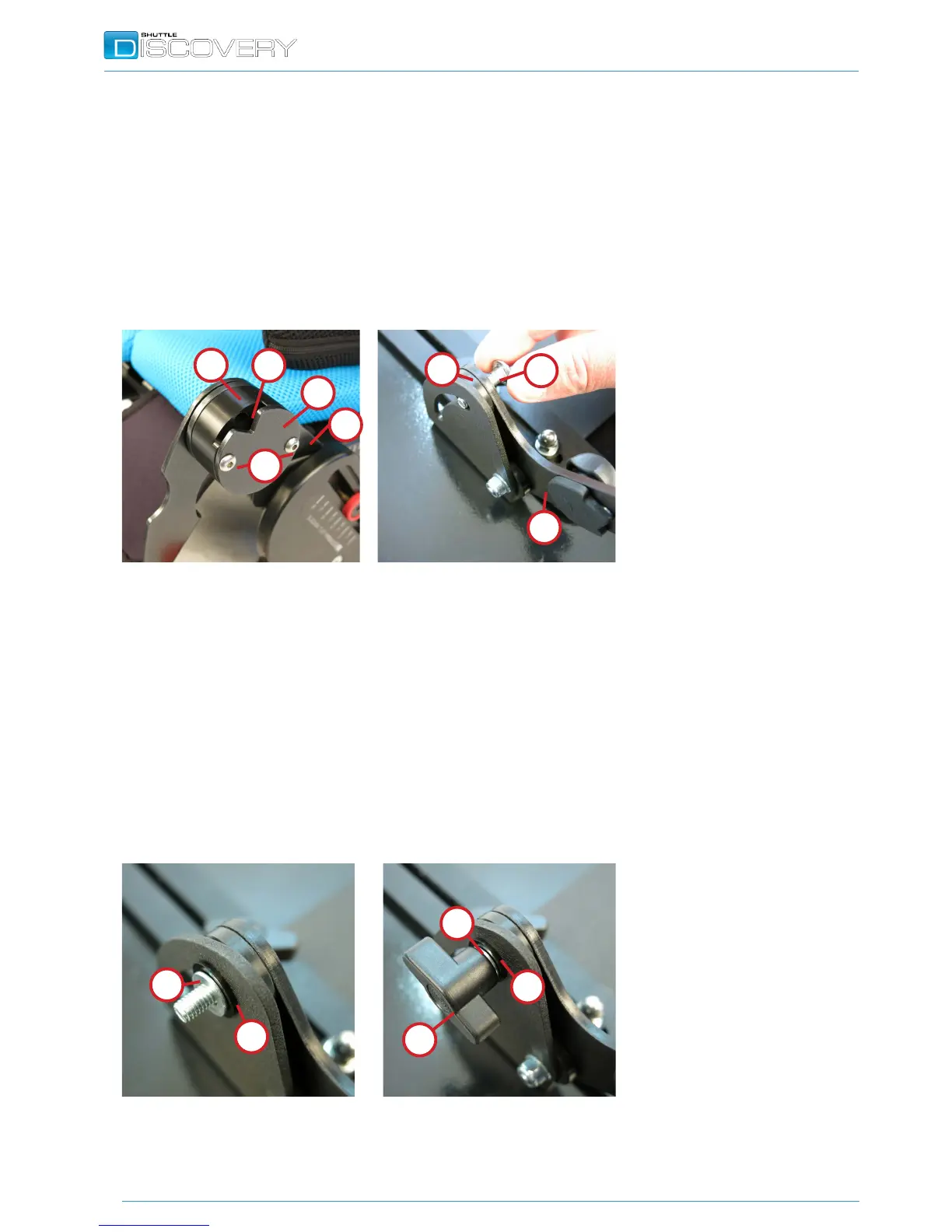

Secure the mounting block (A) and the height stop plate (D) to the footrest hinge
bracket (C) using the bolts (E).
Ensure the bolts are tight.
Assembling the Tray
Place the tray at and remove the knob (F), metal washer (G) and the thin plastic
washer (H).
Pull the bolt (J) out until the height adjustment leg (I) is free to rotate up. Rotate
the height adjustment leg (I) until it is in line with the curved slot. Push the bolt
through the slot.
Slide the thick plastic washer (K), thin plastic washer (G) and the metal washer (F)
onto the bolt (J) in the order shown in the images. Secure the assembly with the
knob (F).
Follow the same procedure to assemble the opposite tray height adjustment leg
(I).
