Hip guide / Seat width

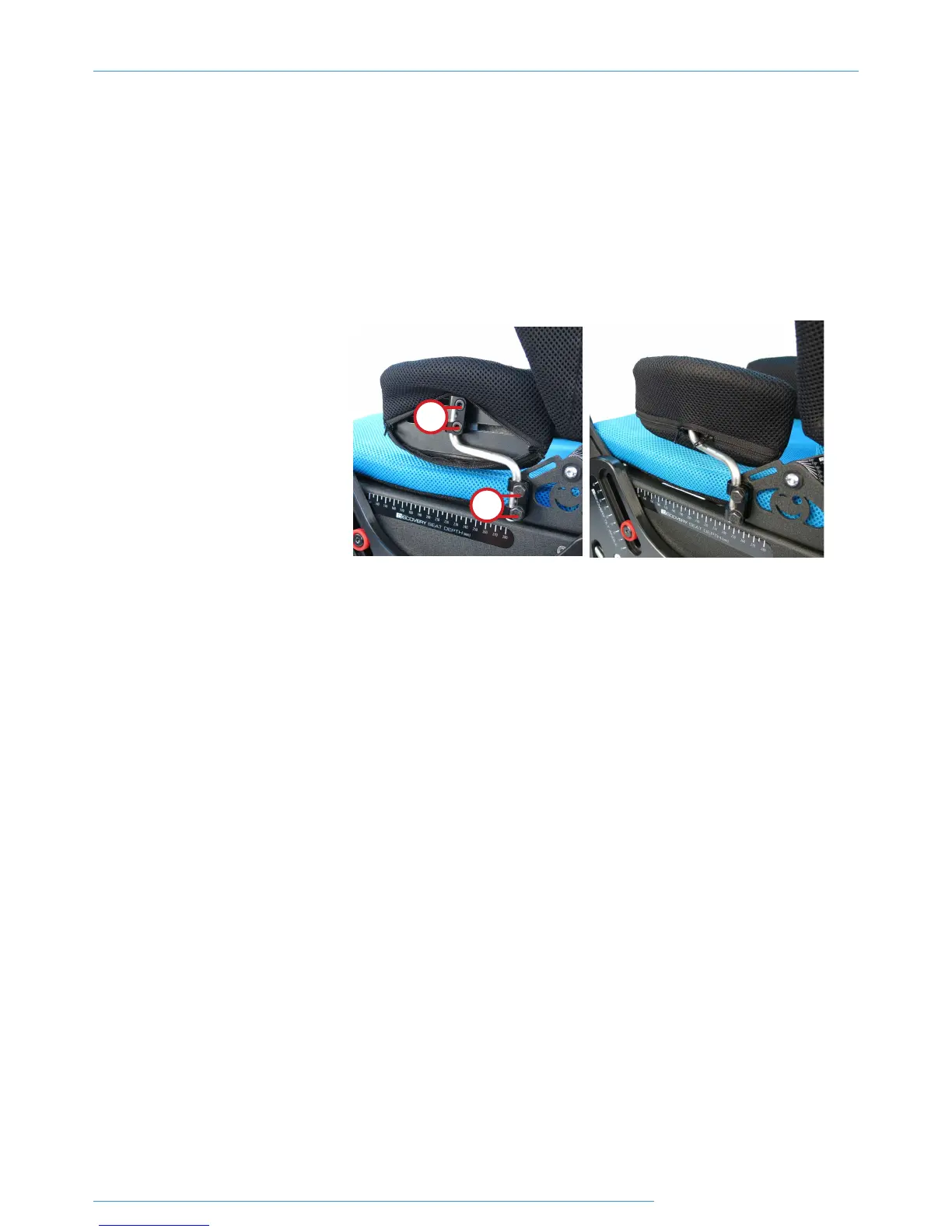

Loosen the two screws (A) and two bolts (B) by a few turns. Now the hip guide
width, depth and angle can be adjusted. Once an optimum position is attained
retighten the screws and bolts.
Setting up the Discovery Seat
NOTE:
Ensure both hip guides are central to the backrest to align the user’s pelvis
correctly.
A
B
