40
IV Pole Mounting Assembly
Mount IV mounting assembly (F) to the Mounting Bracket (A) using the
M6 x 10mm countersunk screws. Loosen knob on IV mounting assembly
(F) and slide the IV pole (G) into the bracket, secure at the desired
height by re-tightening the knob rmly by hand. Tighten countersunk screws rmly.
WARNINGS
Ensure all screws are tightened rmly.
Ensure the knob is tightened rmly to ensure the IV pole cannot slide.
Oxygen Bottle Holder Mounting Assembly
Mount Oxygen Bottle Holder (H) to the Mounting Bracket (A) using the M6 x 10mm
countersunk screws. Tighten countersunk screws rmly.
WARNINGS
Ensure all screws are tightened rmly.
Ensure the knob is tightened rmly to ensure the IV pole cannot slide.
IV Pole & Oxygen Bottle Holder Mounting Assembly
If both IV Pole and Oxygen Bottle Holder are to be mounted to the Verve Stroller, x
the IV Pole mounting assembly behind the Oxygen Bottle Holder using the M6 x 15mm
countersunk screws, in place of the M6 x 10mm screws.
WARNINGS
Ensure all screws are tightened rmly.
Ensure the knob is tightened rmly to ensure the IV pole cannot slide.

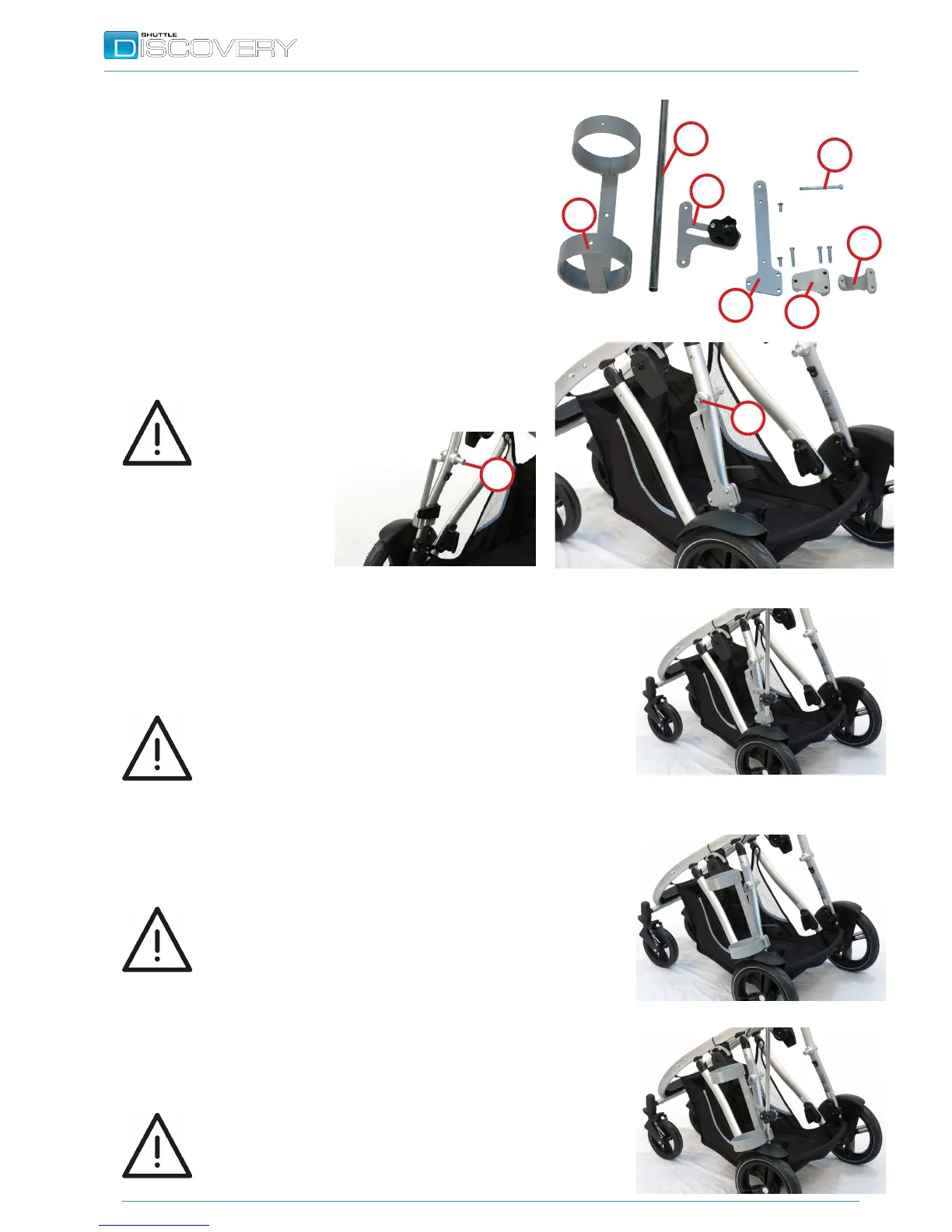

IV and Oxygen Bottle Mounting
The mounting hardware can only be tted on the left hand rear of the
driving direction on the Verve Stroller.
Both the IV Pole and Oxygen Bottle Holder require the Mounting
Bracket (A) to be xed to the Verve Stroller.
Remove Qstraint peg (B) and M6 x 70mm cap screw (C) and replace
with M6 x 75mm cap screw (D).
Loosely mount top hole in the bracket using 75mm cap screw (D) and
Qstraint peg (B).
Mount lower end of the bracket using the inner and outer rear tie-down
clamps (E) and (I) respectively using the M6 x 35mm button head screw
on the front hole and M6 x 30mm on the rear holes.
Tighten all bolts/screws (including peg (B)) once mounted.
WARNINGS
Ensure all screws are tightened rmly.
C
B
A
F
E
D
H
G
IV Pole & Oxygen Bottle Holder
I
To Next Page
