30
H
I
J
J
L
K

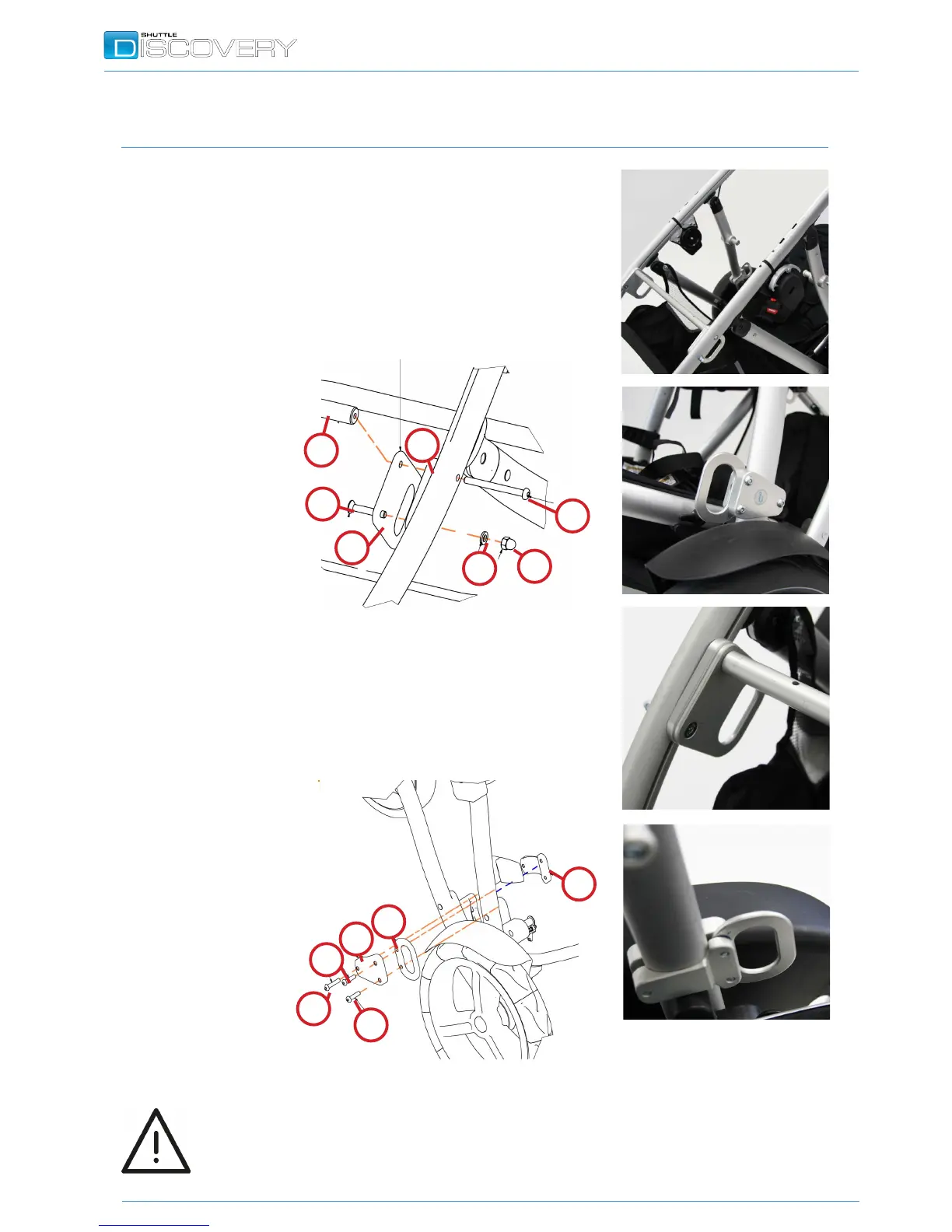

Securement latch brackets
This page is relevant to all countries outside the United States of America. Fitting
the securement latch brackets must be installed by a competent technician.
In the U.S. these brackets only come pre-installed.
Front securement bracket installation
Remove the securement plate spacer and replace with the securement plate (D).
• (A) Front mounting bar
• (B) Button head cap screw
• (C) Front frame spacer
• (D) Front securement plate
• (E) Countersunk screw
• (F) Flat washer
• (G) Hexagon domed
cap nut
Ensure all the fasteners are
torqued to 5 Nm (44 lb-in)
once installed.
Rear securement bracket installation
• (H) Verve Stroller rear securement plate
• (I) Button head screw - 30mm
• (J) Button head screws - 25mm
• (K) Verve Stroller Rear Inner clamp
• (L) Verve Stroller Rear Outer clamp
Ensure all the fasteners are torqued to
5 Nm (44 lb-in) once installed.
WARNING
Ensure fasteners are checked as per the 6-monthly maintenance checks. Failure to t the securement
brackets properly may cause severe injury or death to the user or to other persons in an event of an
accident.
F
G
B
A
C
D
E
Using Shuttle Discovery for Transport in Motor Vehicles
