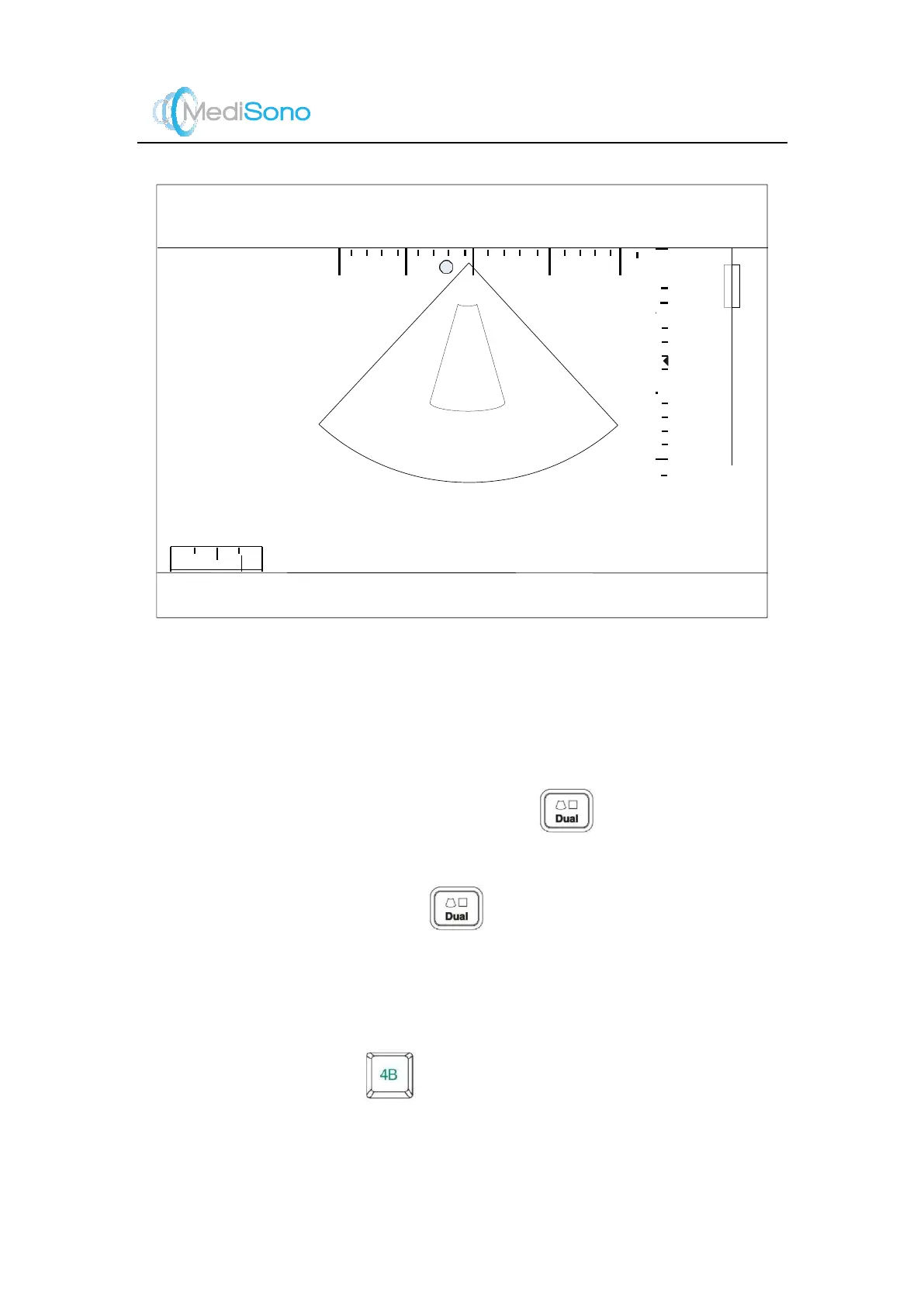

7.3.2 Image Magnification
See Section 6.3.2.
7.3.3 B+CFM Real Time Dual Format
Dual display format facilitates you to compare the two images in the B mode and CFM mode.
To activate B+ CFM real tim e dual format mode, press twice in a real time CFM
mode. The left part of screen displays the image in real time B mode, and the right part of t he
screen displays the image in real time CFM mode.
To return single display CFM mode, press again.
7.3.4 Quad Display Format
Quad display format facilitates you to compare the images which are acquired at different
times.
1. In a real time B mode, press on the keyboard to activate the quad display form at.
The image is reduced to a quarter of its original size and m oved to the top left to leave
space for displaying other images, as shown below.
