3.5 NetAgent Mini Out looking
NetAgent Mini External
NetAgent Mini Internal Module
Light signal application of NetAgent Mini - Status LED
Light color Signal definition Condition description
Green Power state On: Normal power
Red Connection state with UPS Flash: no connection with UPS
Orange Correspondence state
Light flashes when Netagent transmits
command to UPS
Light signal application of NetAgent Mini - LAN Port LED
Light color Condition description
Green
On: Internet correspond speed is 100M
Flash: Data transmmiting
Yellow
On: Internet correspond speed is 10M
Flash: Data transmmiting

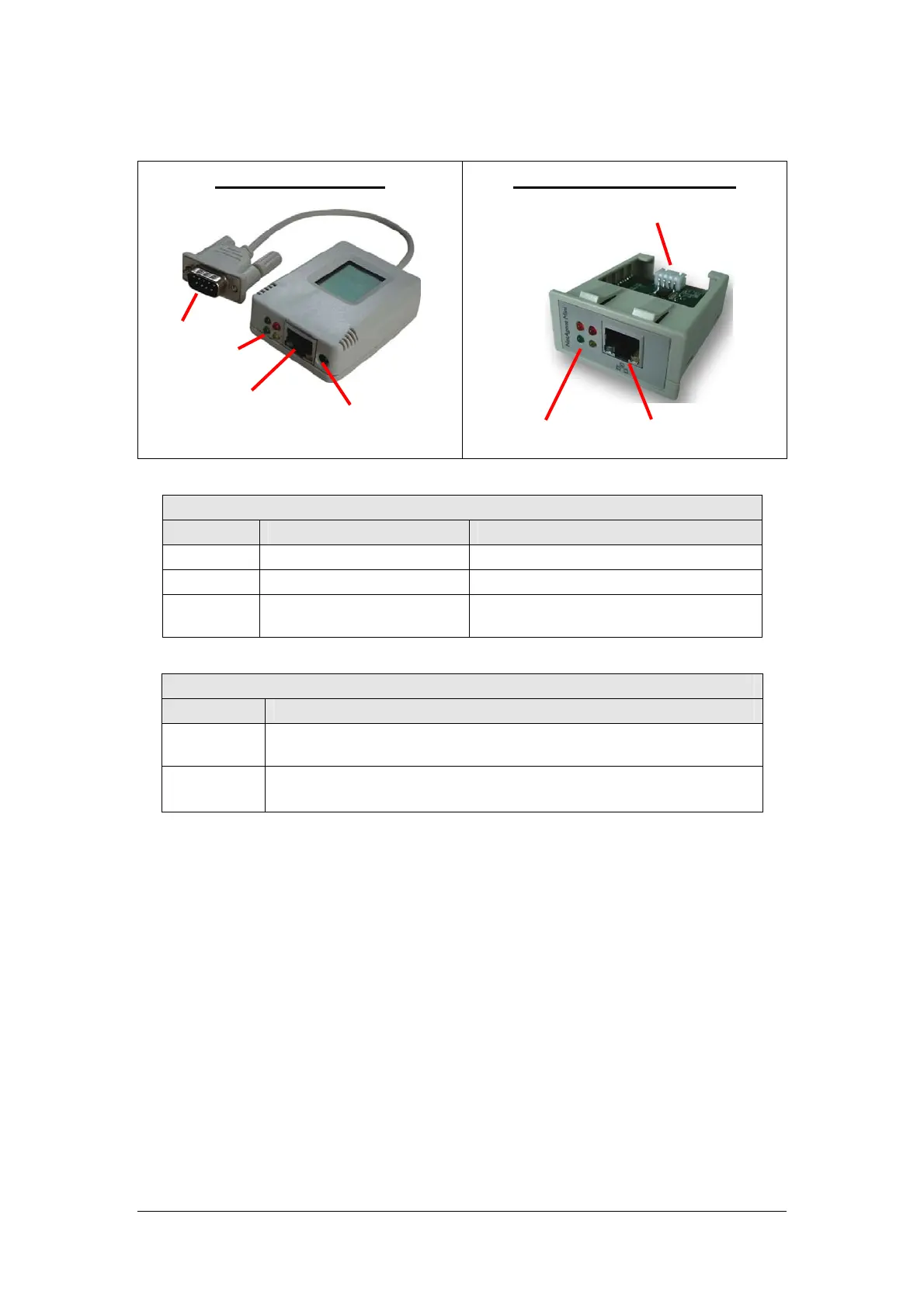

Fig.6 NetAgent Mini Out looking
To UPS
To LAN
(LAN Port LED)
Status LED
Status LED
To LAN
(LAN Port LED)
To DC ada
p
ter
To UPS
