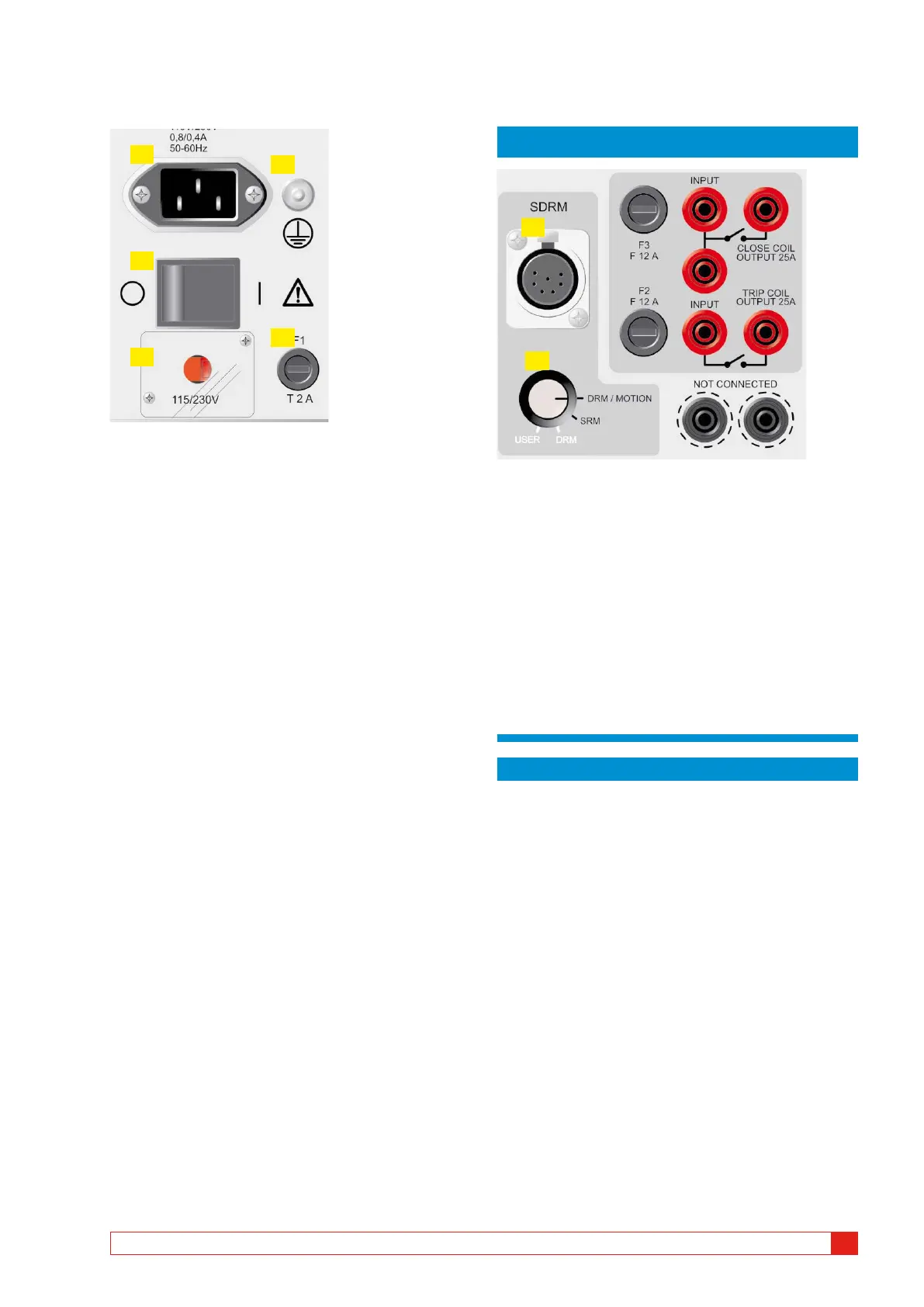

6.1 Power supply
➌
2
5
4
➊
1. Connector for mains voltage
2. Mains voltage ON/OFF
3. Mains voltage switch 115 V 60 Hz or 230 V
50 Hz
4. Ground (earth) terminal
5. F1, Main fuse, 2 A F (quick acting)
6.2 SDRM (option)
Option - >
➊
2
1. SDRM input
2. SDRM mode selector
DRM/MOTION: Dynamic resistance meas-
urement and motion measurement. U and I
divided externally.
SRM: Static resistance measurement. U and I
measured and R calculated in CABA Win.
DRM: Dynamic resistance measurement. For
more precise resistance values. U and I are
measured and R is calculated in CABA Win.
No motion measurement.
USER: Custom designed option.
Option - End
BM0087OE ZP-BM01E EGIL
21
6 CONTROL PANEL
