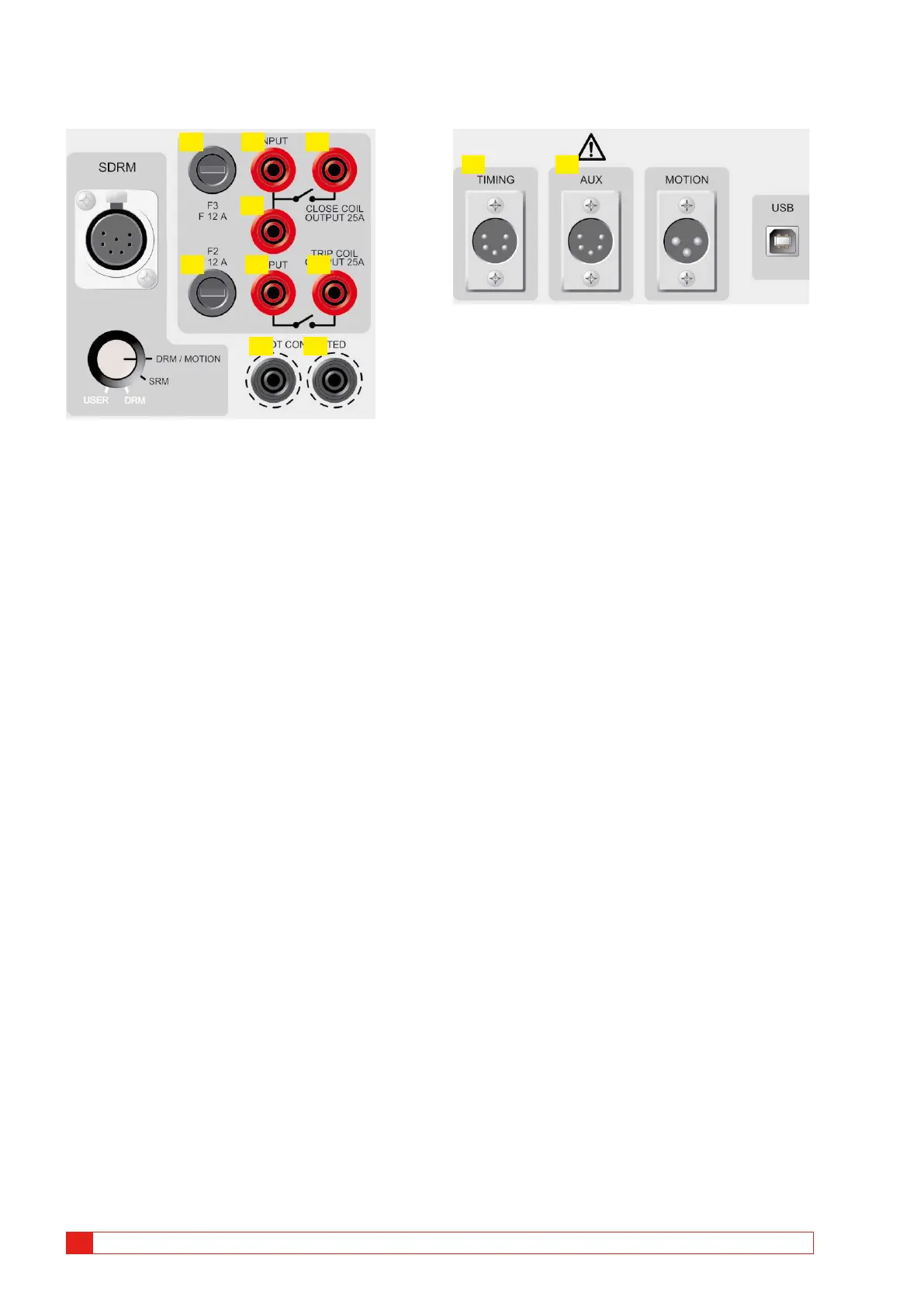

6.3 Breaker control outputs
➊
2
❾
4 5
➐
❽
6
➌
1. Fuse (F2) for breaker control outputs, 15 A F
(quick acting)
2. Fuse (F3) for breaker control outputs, 15 A F
(quick acting)
3. Close Coil input to internal contact (Close).
Makes it possible to connect a jumper be-
tween 3 and 6.
4. Close Coil input to internal contact (Close).
5. Close Coil output from current measurement
circuit back to the breaker.
6. Trip Coil input to internal contact (Trip).
7. Trip Coil output from current measurement
circuit back to the breaker.
8. Not connected terminals for safe disconnec-
tion of breaker control wires. Not connected
to internal circuits.
9. Same as 8.
6.4 Timing inputs
➊ 2
1. XLR5 - Three time channels. Signals can be
measured at both main contacts and pre-in-
sertion resistor contacts on the same channel.
2. XLR5 - Two galvanically isolated time chan-
nels, intended for contact-sensing or voltage-
sensing.
22 EGIL ZP-BM01E BM0087OE
6 CONTROL PANEL
