Space for your
report data
Space for your
comments
Parameters you
have selected for
breaker opera-
tion
Parameters you
have selected for
travel (motion)
measurement
Filtering you have
selected for time
results
Tabular printout
of time measure-
ments at main
contacts
Tabular printout
of time measure-
ments at auxiliary
contacts
Tabular printout
of travel (motion)
calculations
Graphical
printout
Auxiliary contact,
close circuit
Main contacts
Auxiliary contact,
trip circuit

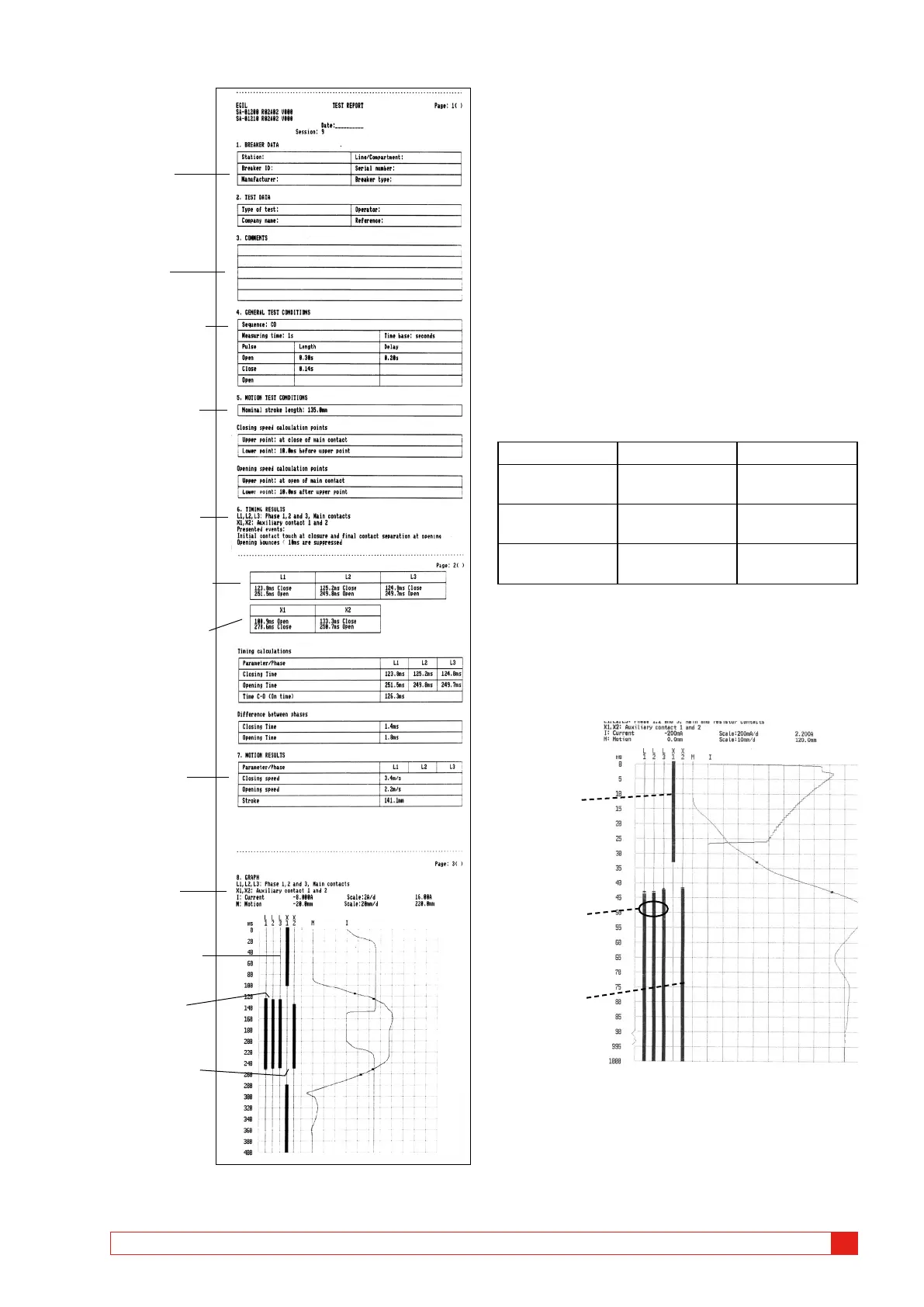

The graphical printout
The graphical printout shows the current, the motion
and the contact events in relation to the measured
time.
The timing printout matrix is 3 x 20, and the current/
motion matrix is 12 x 20 divisions.
The printout scale for the current and voltage is 5 x
5 mm. This gives a possibility to copy the graph on a
copying machine by a factor 2, to enlarge the result
on a A4 format page. The scale of the graph will then
be 10 x 10 mm (1 x 1 cm).
The contact events (3 timing inputs and 2 auxiliary
inputs) in relation to time are shown on the first five
lines. The 3 timing inputs sense the type of contact
and is printed as follows:
Type of contact Input values Printed line
No contact -
Open
∞ Fine line
Resistor contact
closed
10 to 3000 1 mm line
Main contact
closed
< 10 2 mm line
The scale for the current is written on the second part
of the graph: for example 10 A/div.
The scale for the motion (option) is written on the
same graph as the current: for example 50 mm/div.
Part 8 is illustrated below:
Auxiliary contact,
trip circuit
Main contacts
Auxiliary contact,
close circuit
BM0087OE ZP-BM01E EGIL
61
13 THE PRINTER
