2.6.1 FTB-101

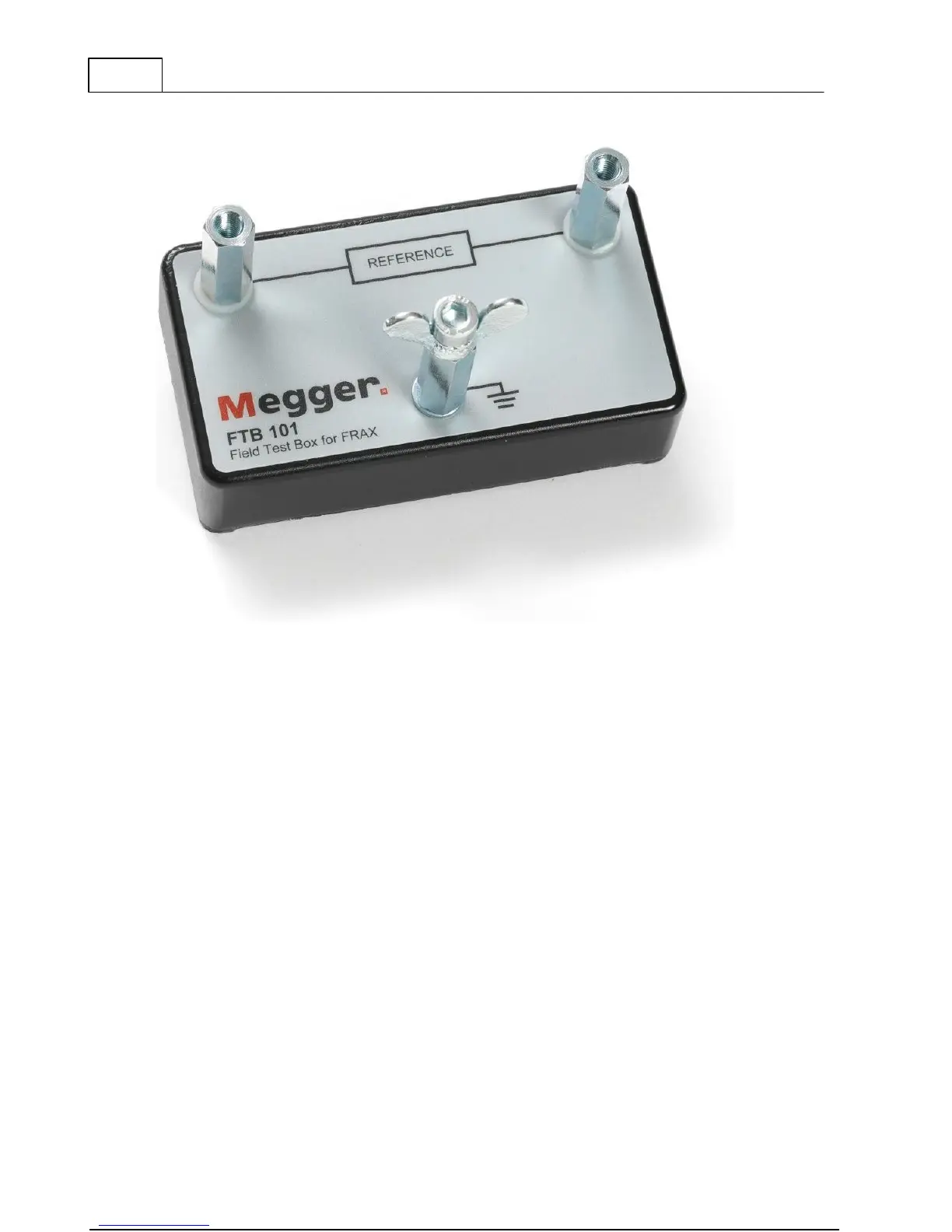

FTB-101 is a field test box that is intended to be used to verify the leads and the equipment as
recommended by CIGRE and several others. Use the FTB-101 and make a test sweep. If the
hook-up and the equipment is is good working order the sweep should look as the picture.
You can compare the results with the file
FTB-101.frax
that is shipped with the FRAX software
and is available from the installation folder, usually
C:\Program
Files\Megger\FRAX\M easurem ent exam ples
