Megger frax 101 User Manual

3
FRAX
© 2011 Megger Sweden AB
Operating System
Windows 2000, Windows XP or Windows Vista
Processor
Pentium 500 MHz or higher
Memory/Hard Drive
256MByte / 30MByte free or more
Interface
Bluetooth (FRAX-101 only) and USB
Specifications are subject to change without notice.
1.3 Instrument Panels
1.3.1 FRAX-101/FRAX-99
1.3.1.1

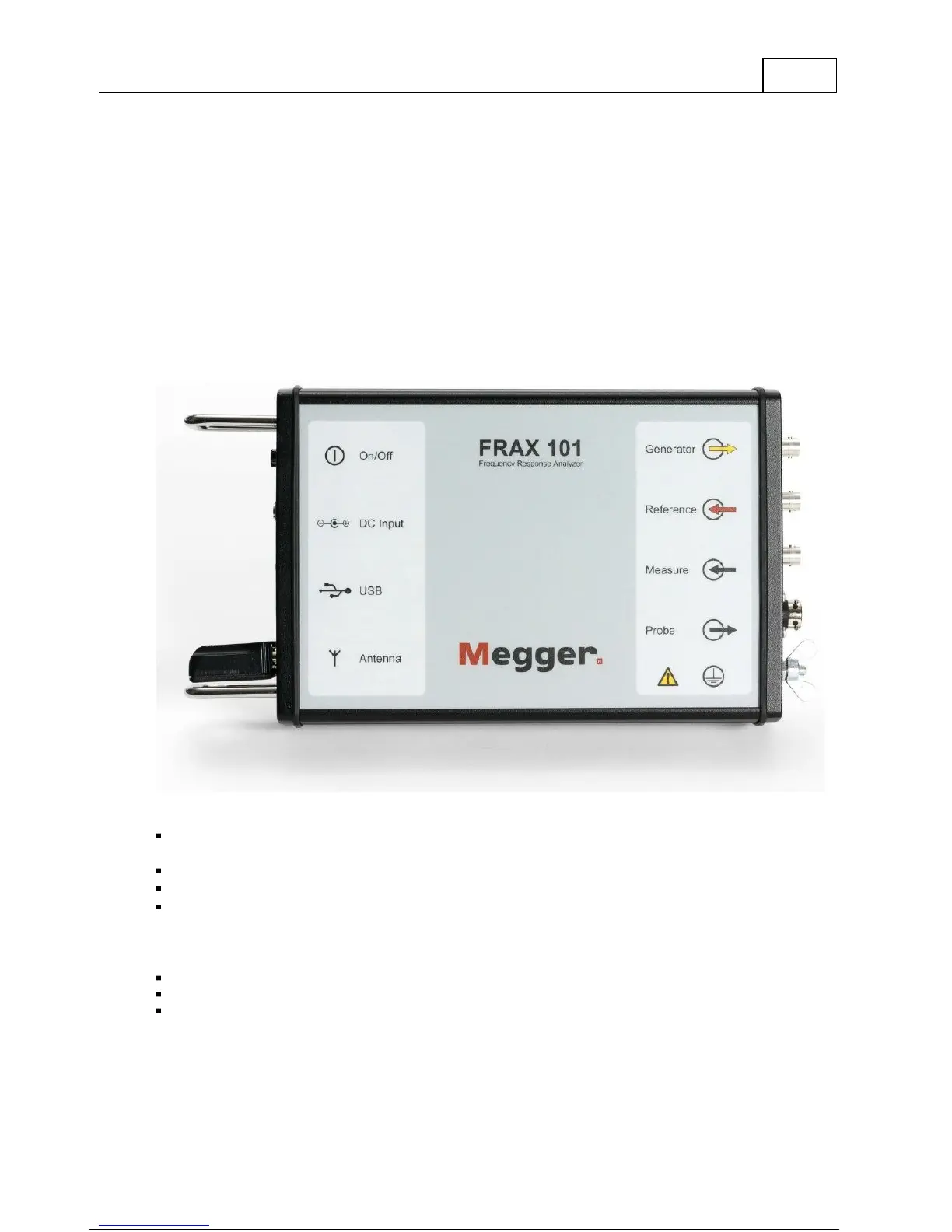

Front Panel
Left-hand side, top down:
On/Off:
On/Off-switch, to turn the instrument On/Off, Switch labeled
I (On) and 0 (Off).
DC Input:
DC-input, to connect the AC/DC adapter.
USB:
USB-connector type B, to connect a USB cable to PC
Antenna (only FRAX-101):
Bluetooth module, enables Bluetooth communication
Right-hand side, top
down:
Generator (Yellow):
Generator output connected to Reference at Red Clip
Reference (Red):
Reference input connected to Generator at Red Clip
Measure (Black):
Measure input Connected to Black Clip
