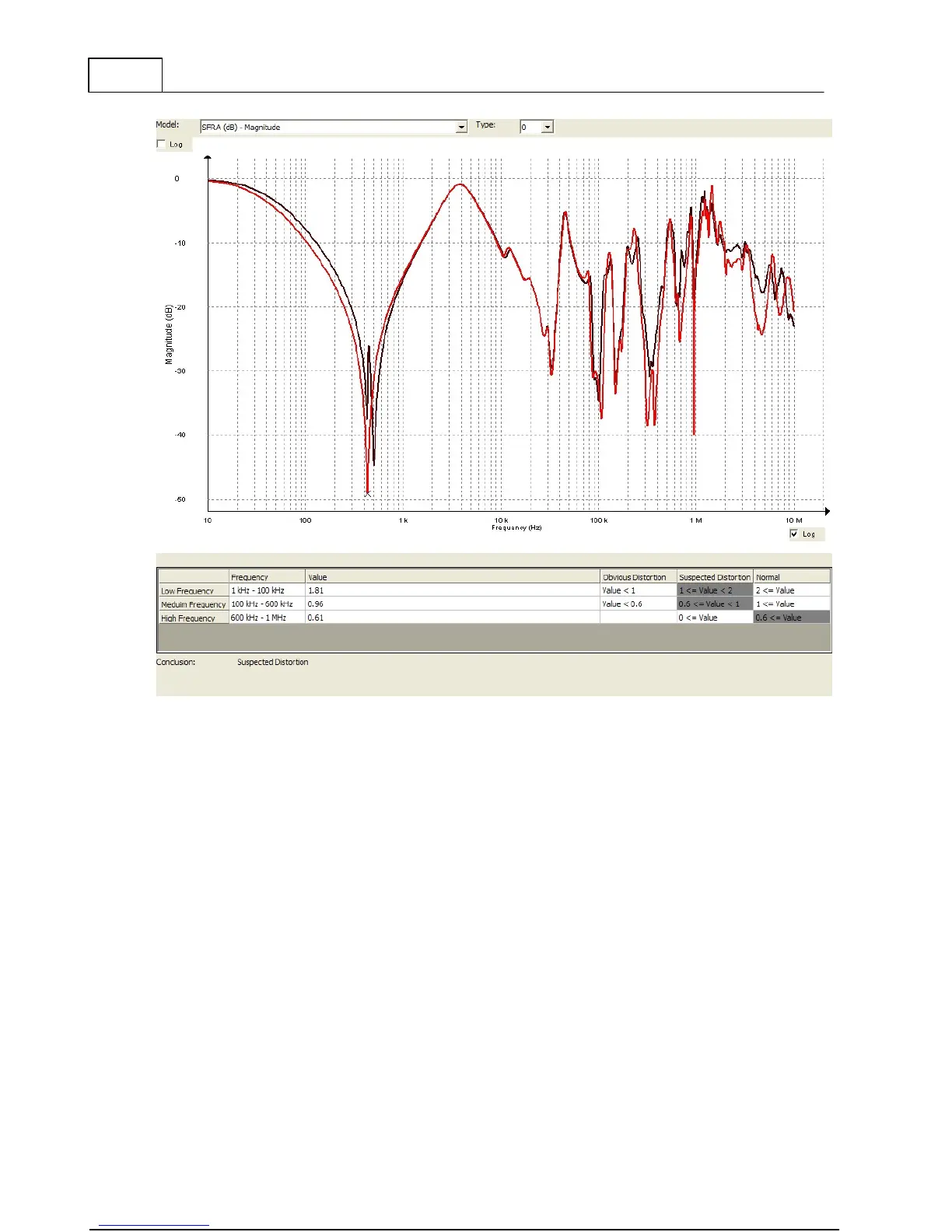

To change the settings for the analysis click the "Settings" button in the analyzer selection
dialog. This brings up a dialog where the settings can be adjusted. In bottom right corner you
select if the evaluation variable is the correlation coefficient (LRxy) or the Rxy-factor. You can
add or remove frequency ranges; you can modify the frequency settings and interpretation
criteria.
