Edit Nameplate
Same as the menu item "Edit Nameplate... (Ctrl+E)". This button is only enabled when a le is selected in the
Legend.
Connect
Same as the menu item Connect (F7).
Start

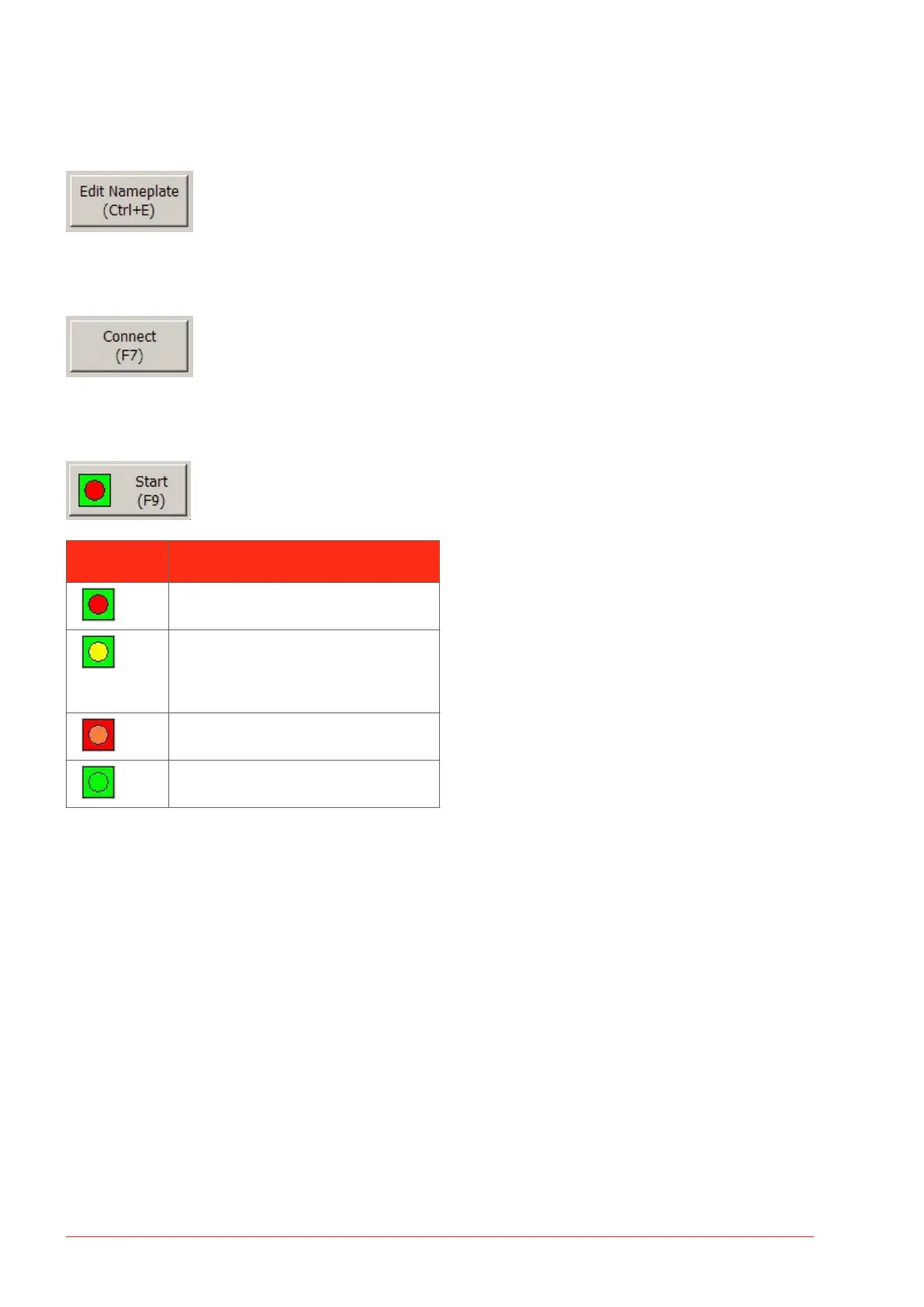

The start button is a multi-functional button. Action suggestions can be obtained by pressing the button.
Button
icon
Description
This icon means that FRAX is not con-
nected to the system.
▪ No le is selected in the Legend.
▪ No sweep is selected in the Legend.
▪ The selected sweep is already
measured.
Measurement in progress.
Ready to start measurement.
Start button can be pressed at any time. The application provides suggestions in case unsure of what action
to take.
5.8. Legend
The legend or Test Browser is where most of the time is spent. Here the measurement settings can be
changed, and the Graphs controlled. Below a typical legend view.
FRAX Software
48 FRAX-series www.megger.com
