Test func-
tion button
Description
or
Enable / Disable the test. The col-
or and line width can be set for
each test. Color and line width can
be changed by right clicking on the
icon.
or
Measured / Empty test. Clicking on
this icon change the measurement
settings for the test.

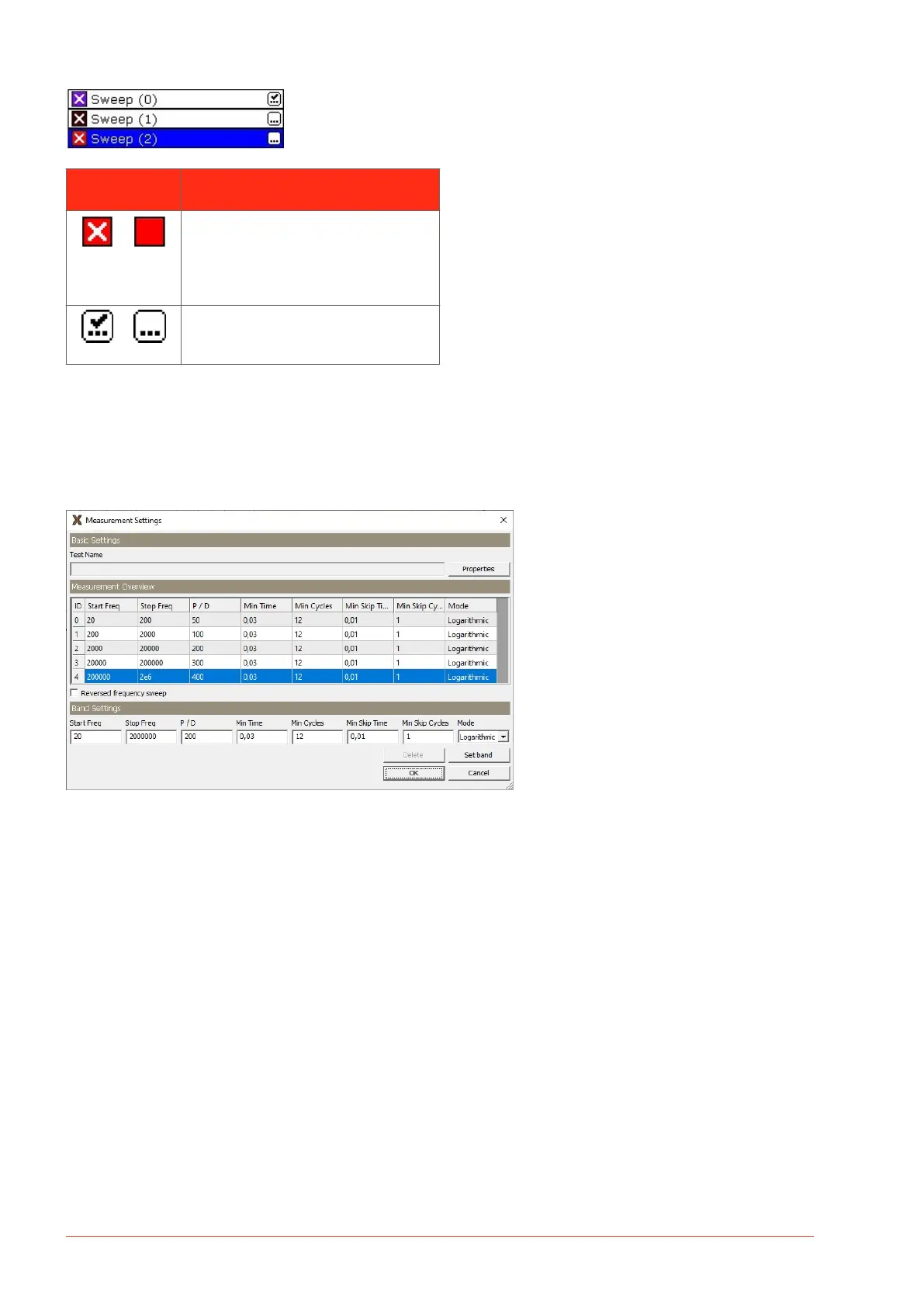

5.12. Measurement settings
This window allows for changing the settings for the test. It is possible to change only the settings for
“empty” tests (containing no measurement data).
Press Ctrl+M to change the default measurement settings for new tests.
5.13. Views
There are several views available. The Nameplate view is always present and the “Magnitude (Alt-M), Phase
(Alt+P) and Magnitude / Phase (Alt+B) are also present when software is started rst time. The view can
easily be changed by clicking the view-tab above the view. It is also possible to change views and create
custom views, see further Graph views...
Below the Magnitude view with one measurement loaded is shown.
FRAX Software
50 FRAX-series www.megger.com
