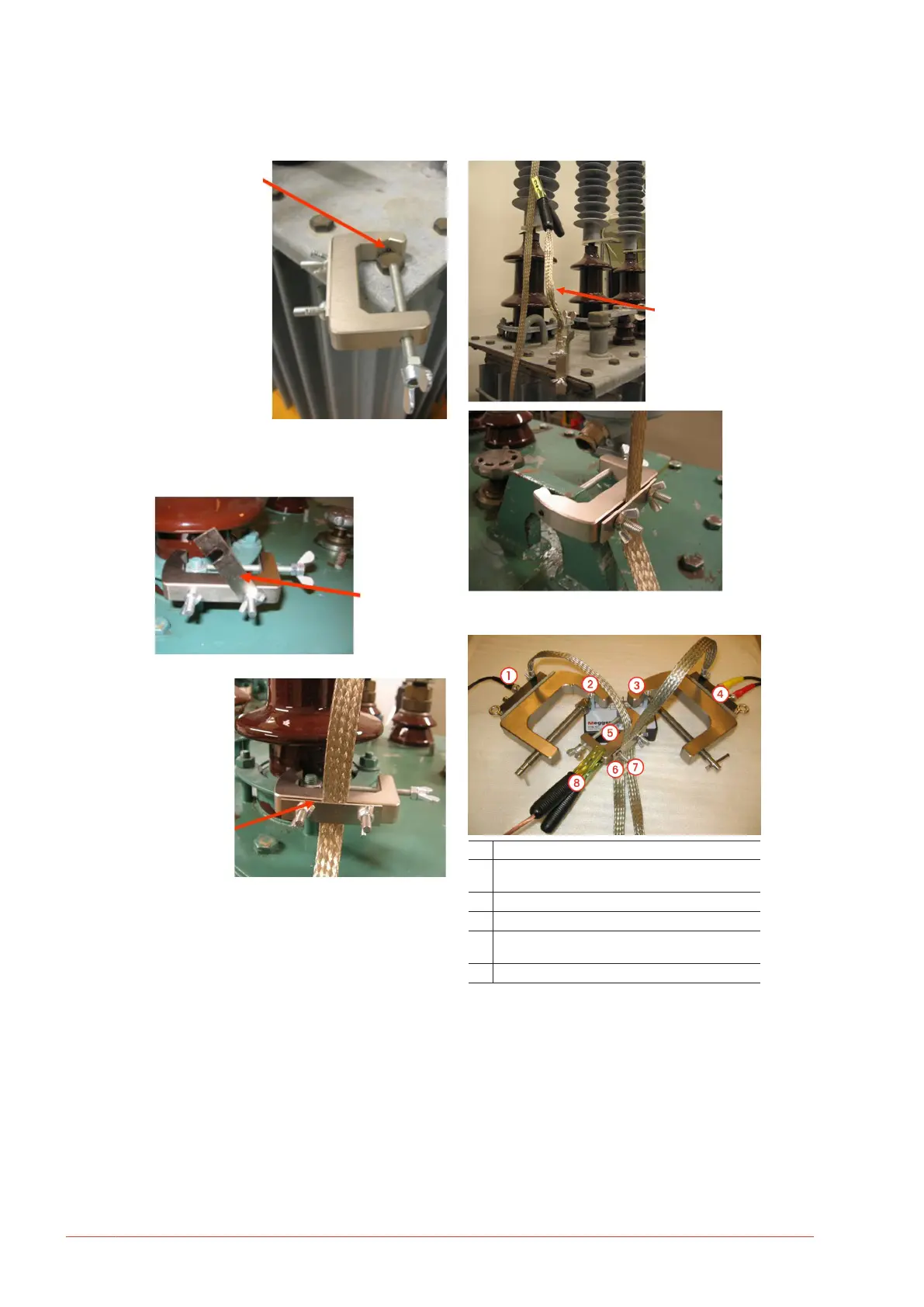

The sharp, adjustable M4
pin screw penetrates any
paint or oxide, making it
easy to get a good, solid
ground connection on
almost any surface.
Ground braid connection
The clamp can be attached to ground in many ways.
See previous section.
To attach and
tighten the braid:
open up the braid
plate by loosening
the wing nuts.
Place the braid
between the
G-clamp and
the braid plate.
Tighten the
braid to create a
straight line from
the C-clamp to the
G-clamp. Tighten
the wing nuts.
For extra flexibility when
connecting the braids to
ground, the short braid
with clamp included in
the ground braid set can
be used.
Field Test Box FTB 101
❶❶
1. Connect the measure cable
2.
3.
Connect C-clamps to FTB101
4. Connect the generator cables
5. Attach the G-clamp to ground on the FTB101
6.
7.
Connect the braids to the G-clamp
8. Connect the ground cable from FRAX to the G-clamp
