20
SVERKER 750/760
Programma Electric AB
ZP-CD01E R05A
Indication Condition required for timer stop
INT a) Internal. Used when ON+TIME or
OFF+TIME is selected.
b) When voltage is applied or when a
contact is closed.
c) When applied voltage vanishes or
when a contact is opened.
+ d) When the state of the input changes.
Select the desired option using the ← button (blue).
It is the leftmost of the two buttons located under
STOP on the control panel.
In the setting mode (MODE activated): The ←
button provides a move to the left on the display.
Indication Mode
Voltage mode. Detects if voltage is
applied or not.
Contact mode. Detects if circuit is
closed or not.
Select either the voltage mode or the contact mode
using the → button (blue). It is the rightmost of the
two buttons beneath STOP on the control panel.
In the setting mode (MODE activated): The →
button provides a move to the right on the display.

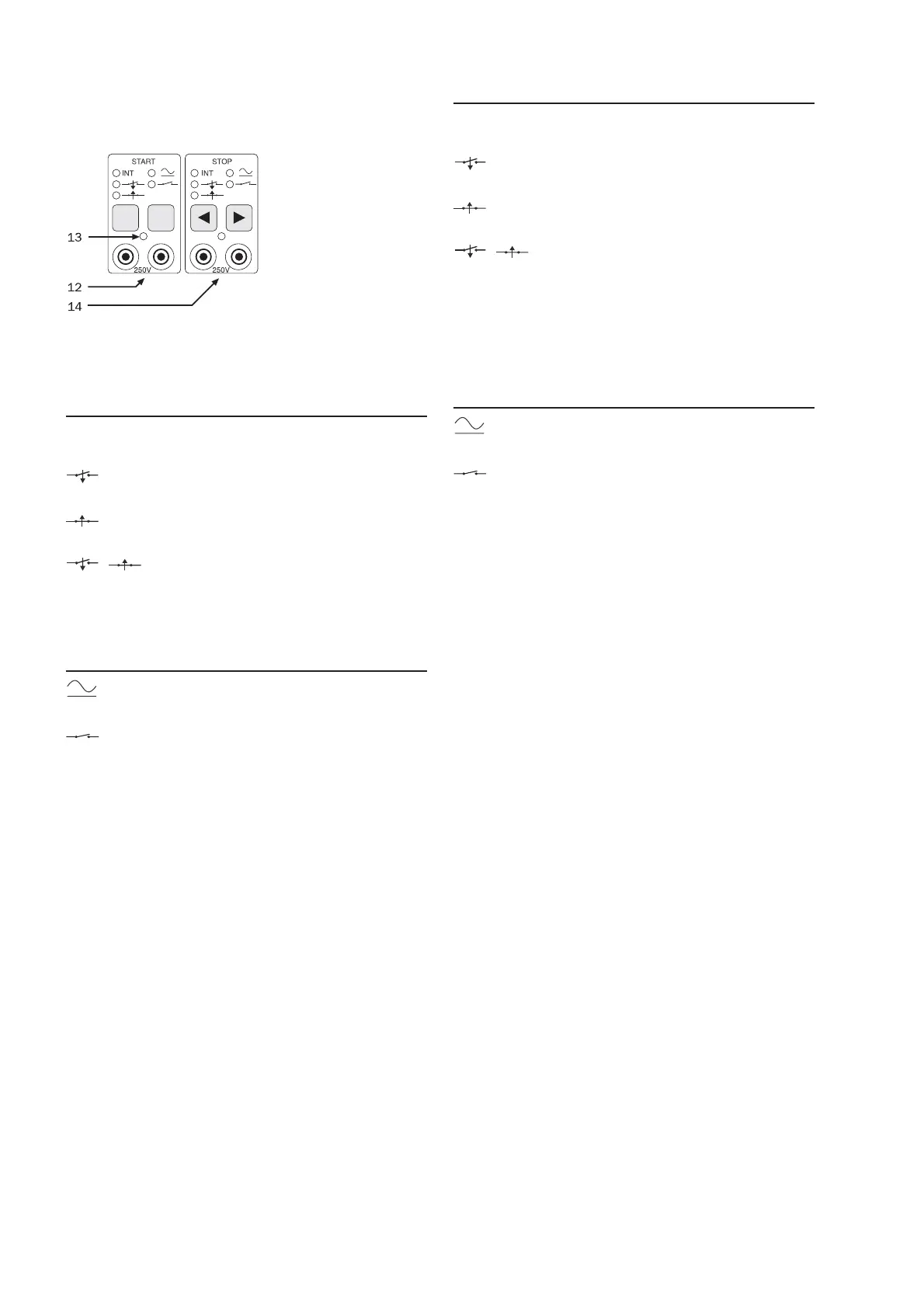

4.3 Timer
12. START input. This is used to start the
timer. Max 250 V (AC or DC). The time is
shown in the display
Indication Condition required for timer start
INT a) Internal. Used when ON+TIME or
OFF+TIME is selected.
b) When voltage is applied or when a
contact is closed.
c) When applied voltage vanishes or
when a contact is opened.
+ d) When the state of the input changes.
Select the desired option using the leftmost of the
two blank-faced buttons located under START on
the control panel.
Indication Mode
Voltage mode. Detects if voltage is
applied or not.
Contact mode. Detects if circuit is
closed or not.
Select either the voltage mode or the contact mode
using the rightmost of the two blank-faced buttons
located under START on the control panel.
13. Indicator lamp. This lamp indicates the
state of the timer input. When this indica-
tor lamp is lighted voltage is present at the
input (voltage mode) or the circuit is closed
(contact mode).
14. STOP input. This is used to stop the timer.
Max 250 V (AC or DC). The time is shown
in the display.
