4.12 Other
41. SERIAL. Serial port for communication with
computers and the Sverker Win software.
42. Terminals marked with black dots all have
the same polarity (used for AC voltage
sources).
Note! CHG, ESC and SEL are imprinted on the
faces of the buttons marked HOLD,
MODE and A respectively. These im-
prints (CHG, ESC and SEL) apply only
when Sverker is in the setting mode. The
panel markings (HOLD, MODE and A)
apply when Sverker is in its normal
mode, i.e. the measurement mode.

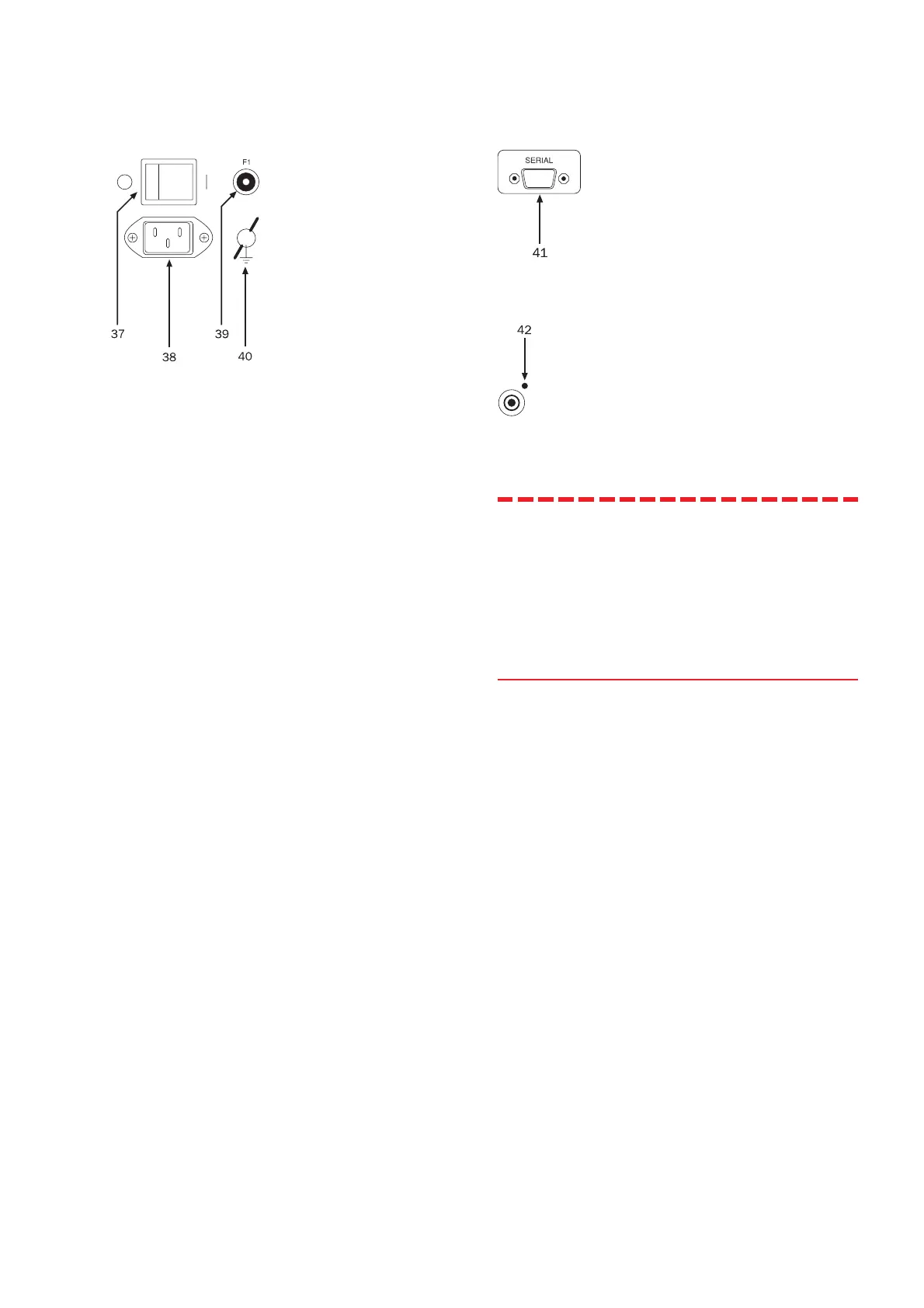

4.11 Power supply
37. Mains voltage ON/OFF.
38. Connector for mains voltage.
39. F1: Miniature circuit breaker for the power
supply. 4 A (230 V), 8 A (115 V).
40. Ground (earth) terminal.
