23
SVERKER 750/760
Programma Electric AB
ZP-CD01E R05A

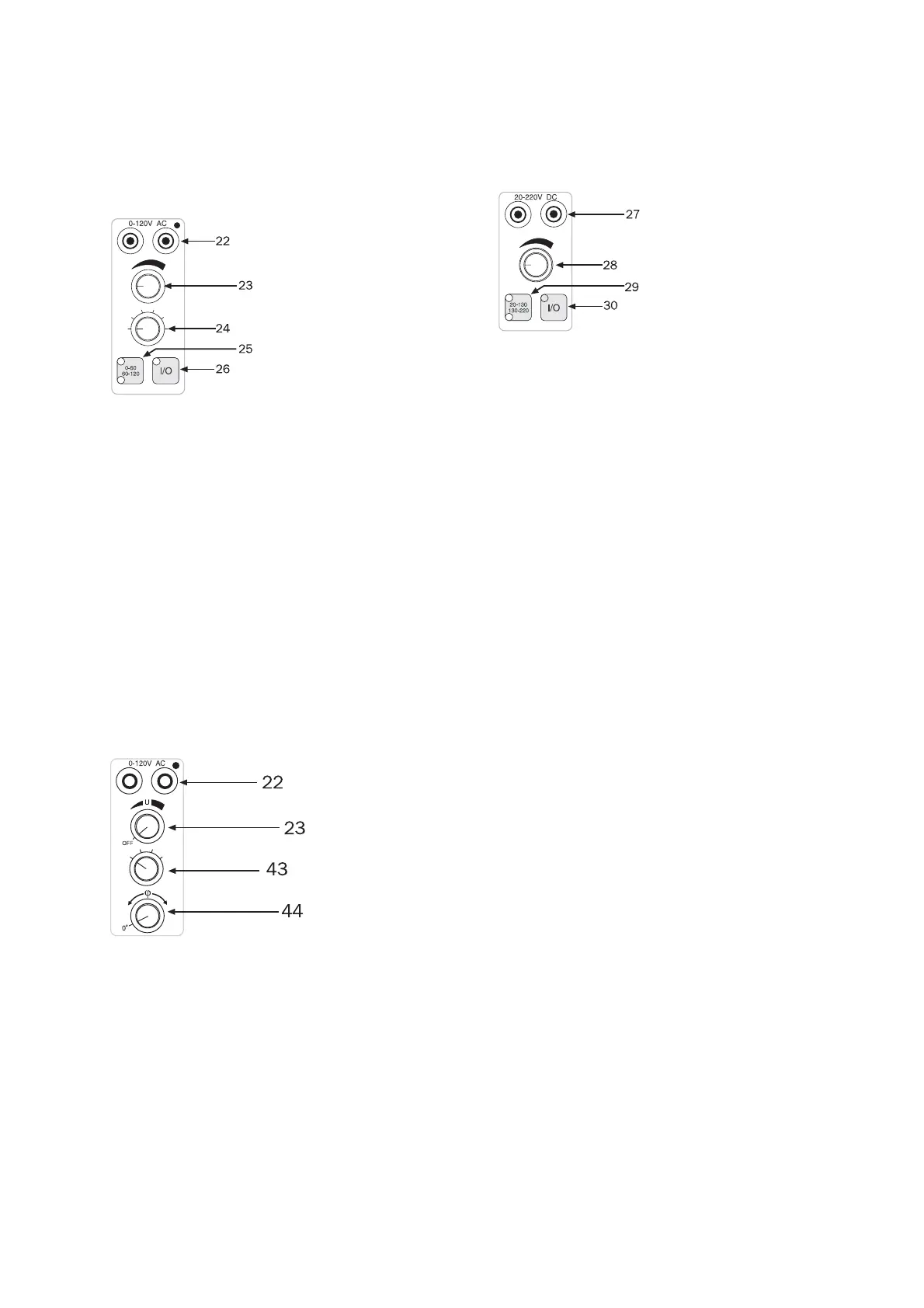

4.7 AC Voltage source
Sverker 750
22. 0-120 V AC. Separate, independent output
for AC voltage. Can be varied from 0 to
120 V using knobs (23) and (24).
23. Knob used for fine adjustment of AC
voltage (22).
24. Knob used for rough adjustment of AC
voltage (22).
25. 0-60, 60-120 switch. This is used to toggle
between the 0-60 V and 60-120 V AC
voltage ranges.
26. I/O. ON/OFF switch used for the AC voltage
source.
Sverker 760
22. 0-130 V AC. Separate, independent output
for AC voltage.
23. Knob used for setting the AC amplitude.
When not in use set to OFF position.
43. Knob used for rough adjustment (about 90°
steps) of the phase-angle.
44. Knob used for fine adjustment of the
phase-angle. Turn this to 0° position (most
left) to get 0° phase shift.
4.8 Auxiliary voltage
source
27. 20-220 V DC. Separate, independent
output for auxiliary voltage (DC) to the
object being tested. Can be varied from 20
to 220 V DC using knob (28).
28. Knob used for auxiliary voltage (27).
29. 20-130 / 130-220 switch. This is used to
toggle between the 20-130 V and 130-
220 V DC auxiliary voltage ranges.
30. I/O. ON/OFF switch used for the auxiliary
voltage source (27).
