MELAG Vacuklav 41 B+ Evolution - Service Hatch; Symbols on the Device

4 Description of the device
13
35 34 3233
29
30
28
31

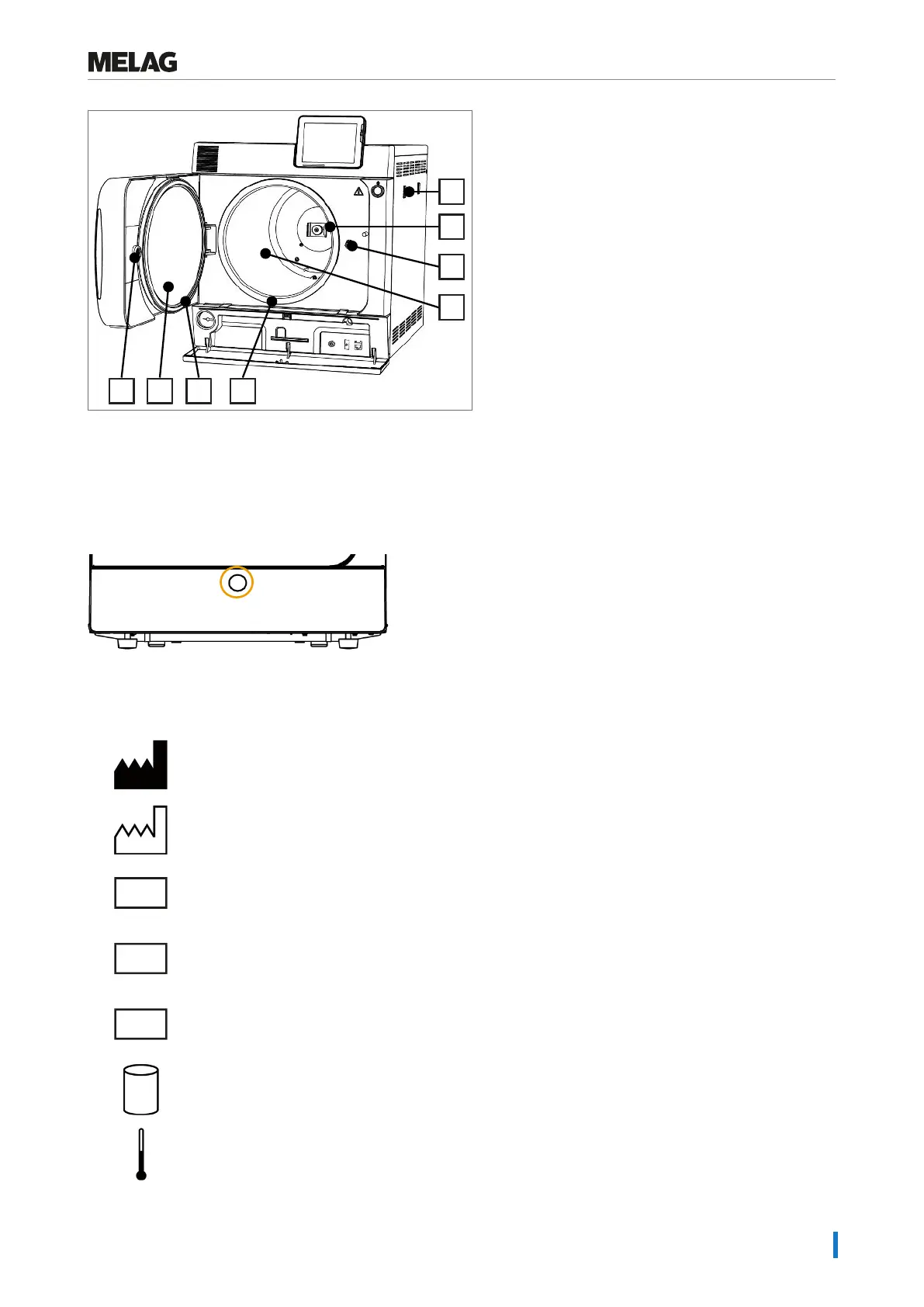

Fig.3: View from front, door open
28 Mount for the water treatment unit
MELAdem
29 Spring clip for fixing the mount
“Plus”
30 Door spindle
31 Sterilization chamber
32 Chamber sealing face
33 Door seal
34 Round blank
35 Bushing
Service hatch
The service hatch is opened by pressing on the recess. The service hatch is closed again by closing and
pressing on the recess.
Fig.4: Opening and closing the service hatch
Symbols on the device
Manufacturer of the medical device
Date of manufacture of the medical device
MD
Identifies a medical device
SN
Medical device serial number from the manufacturer
REF
Article number of the medical device
Information about the chamber volume
Operating temperature of the device
