Working with the machine
9b
2
1
8
7
4
3
Left
3
1
4
2
Right
7
5
8
6
9b
9a

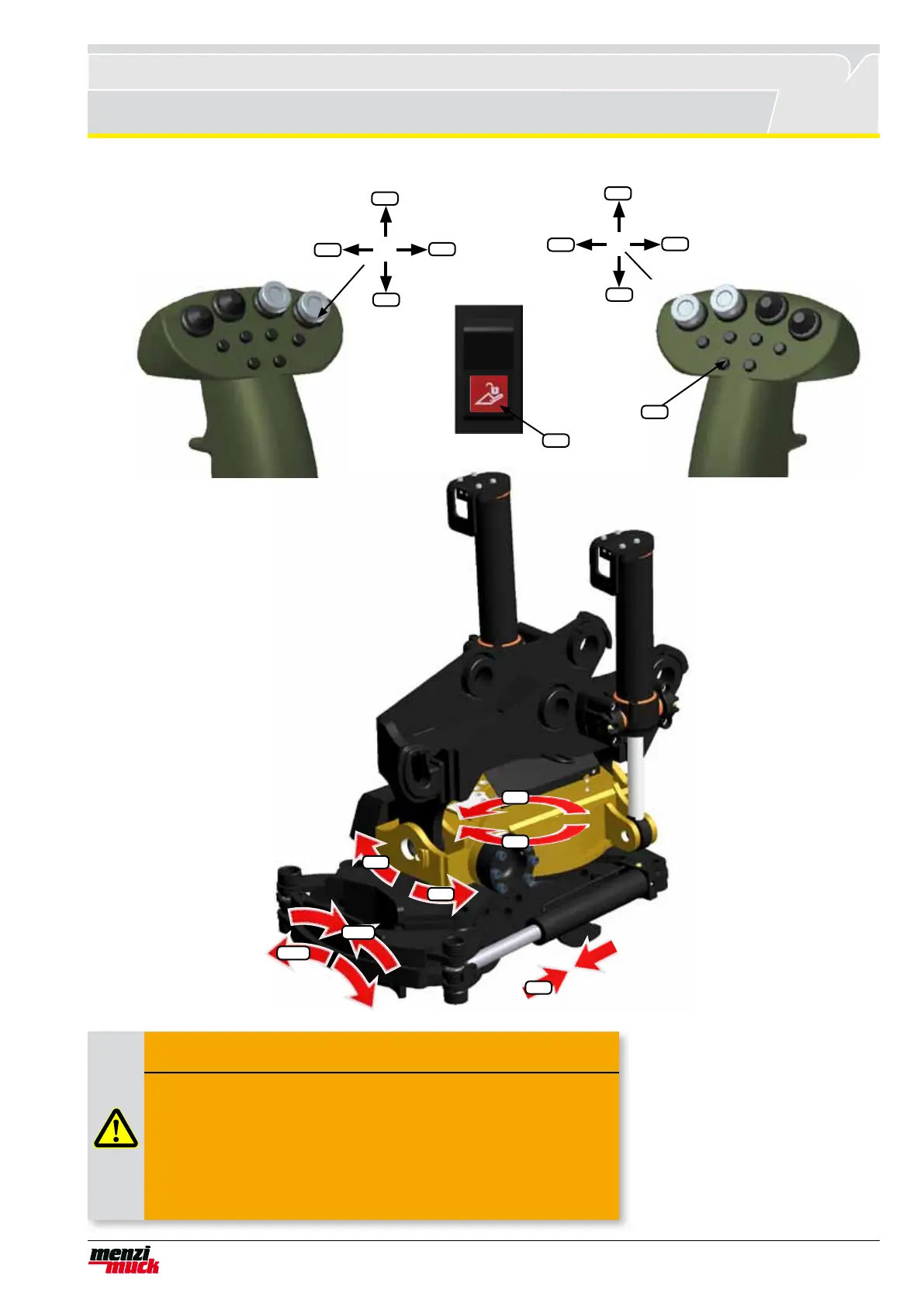

5 = Auxiliary grappler - open
6 = Auxiliary grappler - close
9a = Activate hydr. quick changer
9b = Open hydr. quick changer
7.8.2 Tiltrotator Engcon
Warning !
Incorrect locking of quick changer
• Can result in death or severe injuries.
• When closing the quick changer, perform a function of the
tilt rotator under pressure to ensure that the quick changer is
securely closed. Lock the quick changer as described in the
Engcon operator's manual.
