Operation Manual Menzi Muck A91 Page 161
Maintenance and Care
8.7 Gears
8.7.1 Wheel hub
The rear wheels are driven by two (four) hydrostatic wheel-hub drives lled with gear oil. The wheel-hub drives are
equipped with an automatic parking brake that also runs in an oil bath. The brake is adjustment and maintenance-
free.
Oil level check: daily check for leaks and level check after 500 operating hours.
Oil replacement: every 1000 operating hours or annually.
1. Align the wheel as shown in the corresponding diagram to the left.
2. Provide a suitable catch container.
3. Remove the plug(s).
4. Allow the gear oil to drain completely.
5. Mount the plug(s).
6. Align the wheel as shown in the corresponding diagram to the right.
7. Fill gear oil at the top plug (A) until it runs up to the level plug (B).
8. Mount the plug(s).
Attention !
Fast-llingthegearoil
• Can result in damage to the drive mechanism.
• Fill the gear oil slowly to avoid bubbles. This prevents incor-
rect measurements.
Capacities wheel hub
Machine Type Capacities in l
A91 Mobil Trasmital 606W2B 2.5
A91 Mobil Reggiana RRWD1601DB 1.8
A91 4x4 Trasmital 606W2B 2.5
A91 4x4 Trasmital 605W2 1.4
A91 4x4 Plus O&K F30 2.5

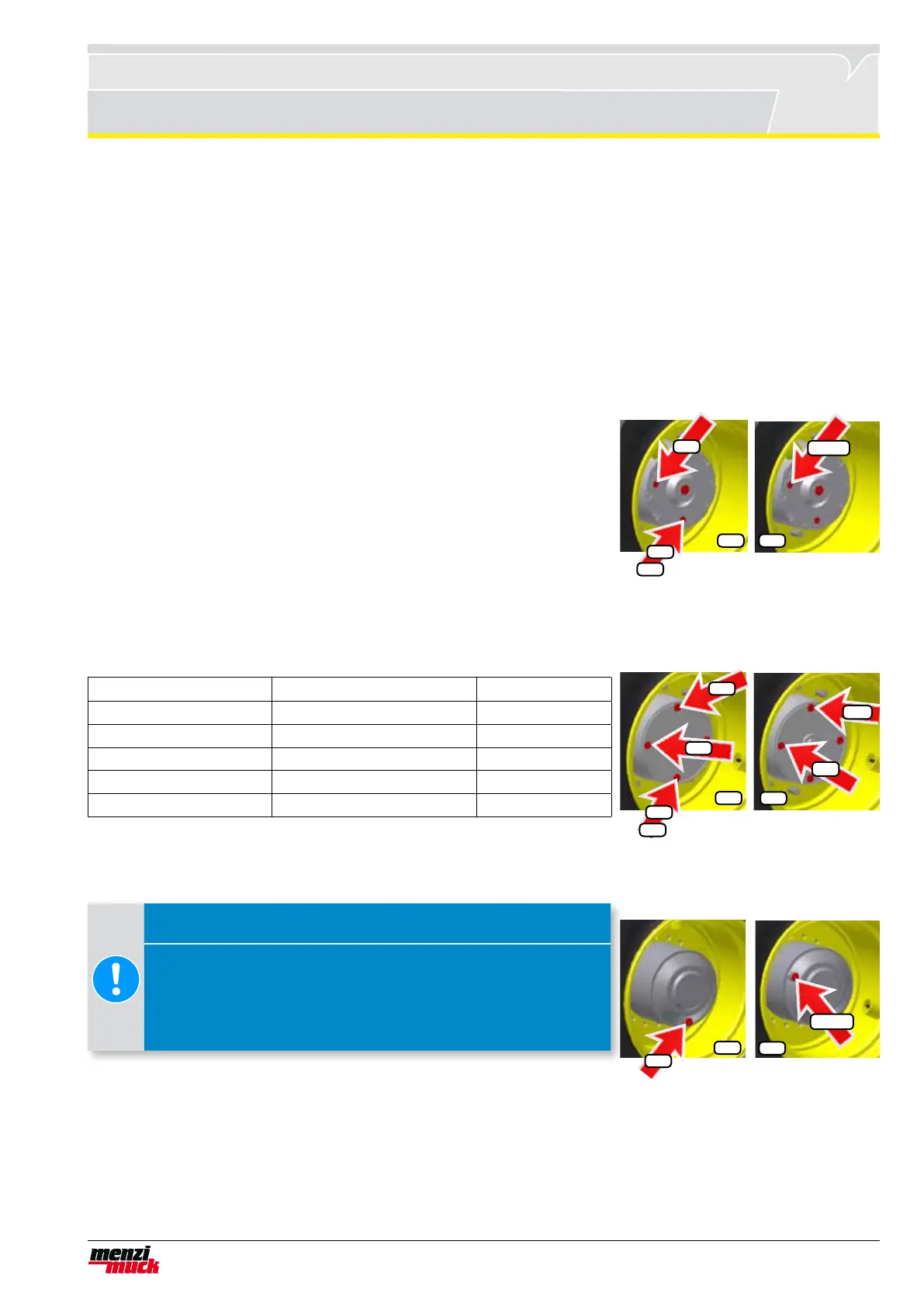

Wheel hub Trasmital
Wheel hub Reggiana
Wheel hub O&K
Filling and con-
trol oil
6
7A/B
Drain oil
3
1
Drain oil
Filling and con-
trol oil
7A/B
6
3
3
1
5
Drain oil
Filling and con-
trol oil
7B
7A
6
3
3
3
1
5
