Maintenance and Care

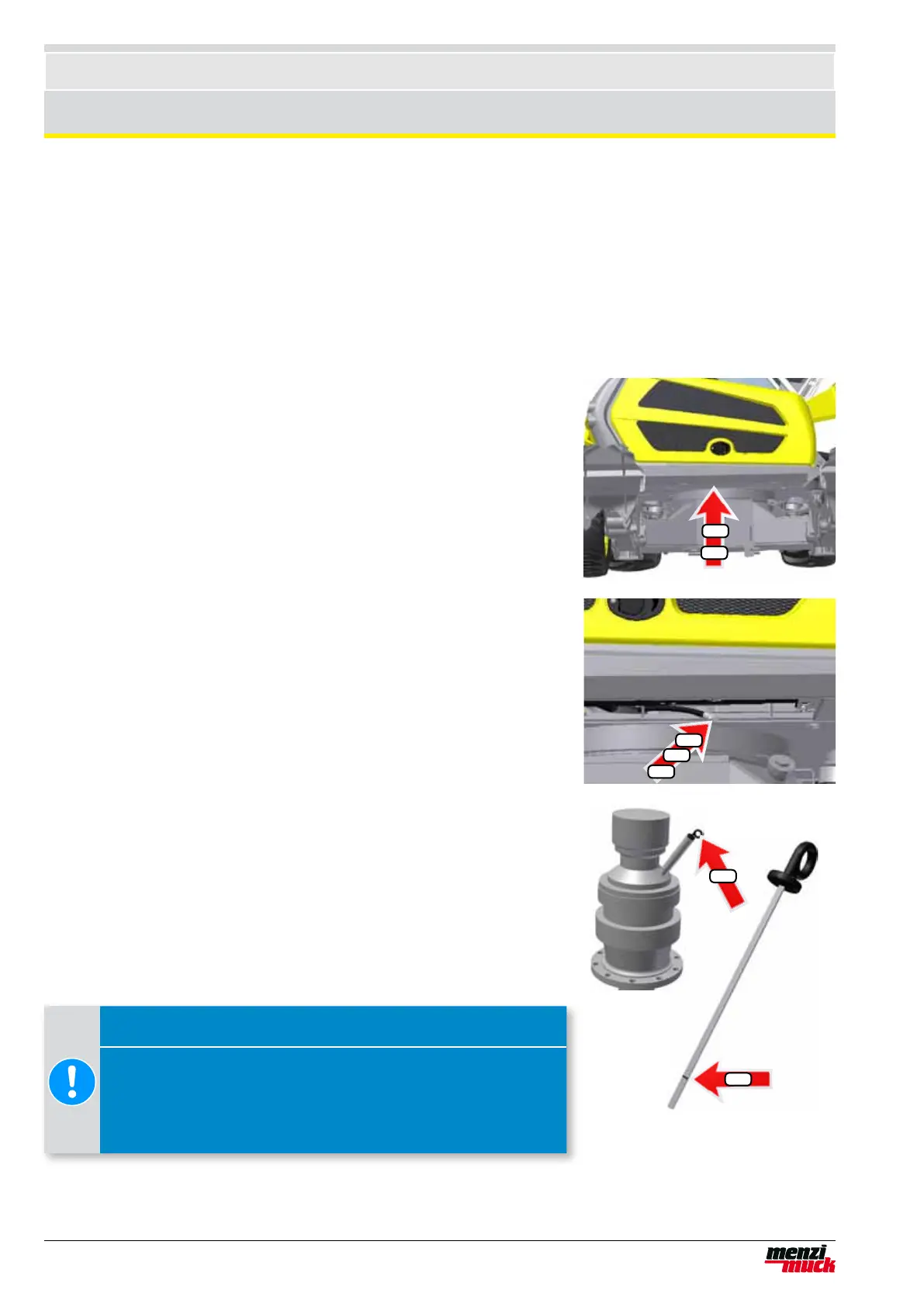

8.7.2 Swing gear
A hydromotor and a multiple disc brake are mounted on the swing gear. The hydromotor powers the swing gear
which has the function of reducing the hydromotor speed to attain the necessary swing torque to allow the up-
per structure to rotate. The upper structure will be braked from the swinging motion over the swing gear and the
hydromotor and held by the automatically braking multiple-plate brake. The swing gear has two planetary gear
stages.
Oil level check: daily check for leaks and level check after 500 operating hours.
Oil replacement: every 1000 operating hours or annually.
1. Tilt the cab.
2. Remove the panel underneath the radiator.
3. Provide a suitable catch container.
Attention !
Fast-llingthegearoil
• Can result in damage to the swivel gear.
• Fill the gear oil slowly to avoid bubbles. This prevents incor-
rect measurements.
4. Remove the locking screw cap.
5. Allow the gear oil to drain completely.
6. Mount the locking screw cap.
7. Fill in the prescribed amount of gear oil at the measuring plug or the
drain hose.
8. Check the level on the dipstick.
9. Mount the panel underneath the radiator.
10. Lower the cab.
Capacity swing gear: 2.5 liters
7
8
2
9
4
6
7
