Menzi Muck A91 - 4. Machine Structure and Components; 4.1 Menzi Muck A91 Mobil Component Identification

Page 30 www.menzimuck.com
Structure
30
29
28
27
31
32
33

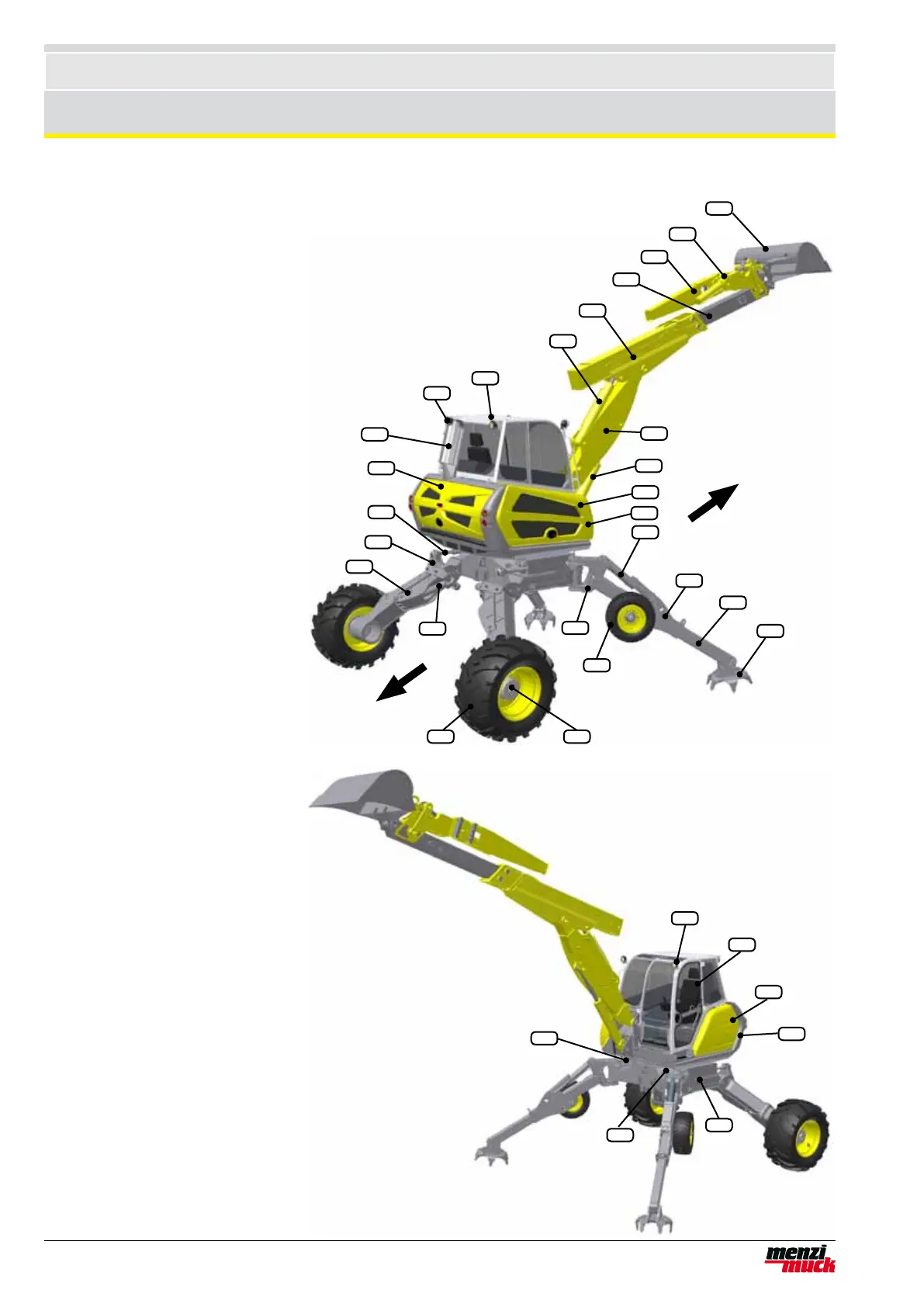

4. Structure
4.1 Menzi Muck A91 Mobil
1. Bucket
2. Bucket cylinder
3. Hose pipe
4. Telescope arm / cylinder
5. Dipper
6. Dipper cylinder
7. Cab
8. Headlight - rear
9. Mufer / Particulate lter
10. Fearing - rear
11. Stabilizer cylinder - rear
12. Revolving head
13. Stabilizer - rear
14. Adjustment cylinder
15. Hub drive
16. Hub engine
17. Swivel base
18. Steering wheel
19. Pad
20. Telescopic stabilizer /
Shearing cylinder
21. Stabilizer - front
22. Stabilizer cylinder - front
23. Fearing - right
24. Diesel tank
25. Boom cylinder
26. Boom
27. Headlight - front
28. Operator's seat
29. Fearing - left
30. Center part
31. Chassis
32. Reserve tank
33. Swivel cylinder
Direction of work
Direction of travel
