Menzi Muck A91 - 4.2 Menzi Muck A91 4 x4 Structure

Operation Manual Menzi Muck A91 Page 31
Structure

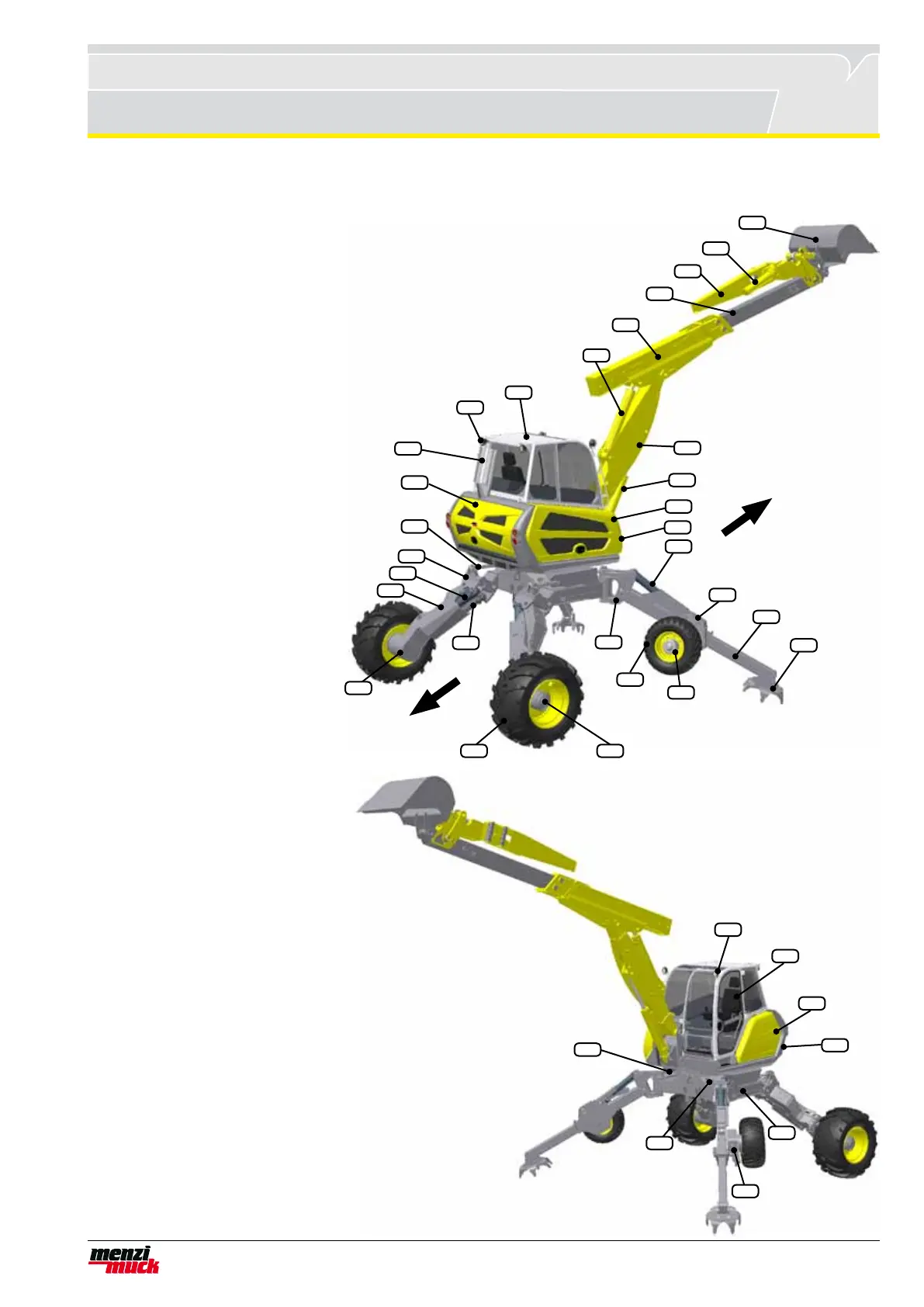

4.2 Menzi Muck A91 4x4 with lift axle and steered hub drive
1. Bucket
2. Bucket cylinder
3. Hose pipe
4. Telescope arm / cylinder
5. Dipper
6. Dipper cylinder
7. Cab
8. Headlight - rear
9. Mufer / Particulate lter
10. Fearing - rear
11. Stabilizer cylinder - rear
12. Revolving head
13. Steering cylinder - rear
14. Stabilizer - rear
15. Axle pivot - rear
16. Adjustment cylinder
17. Hub drive
18. Hub engine - rear
19. Swivel base
20. Steering wheel
21. Hub engine - front
22. Pad
23. Telescopic stabilizer /
Shearing cylinder
24. Stabilizer - front
25. Stabilizer cylinder - front
26. Fearing - right
27. Diesel tank
28. Boom cylinder
29. Boom
30. Headlight - front
31. Operator's seat
32. Fearing - left
33. Center part
34. Chassis
35. Lift axle / cylinder
36. Reserve tank
37. Swivel cylinder
Direction of work
Direction of travel
1
4
2
3
6
16
7
8
9
10
12
11
14
23
17
19
25
20
18
24
22
26
27
28
29
5
13
15
21
33
32
31
30
34
37
35
36
