Menzi Muck A91 - 4.3 Menzi Muck A91 4 x4 Plus Structure

Page 32 www.menzimuck.com

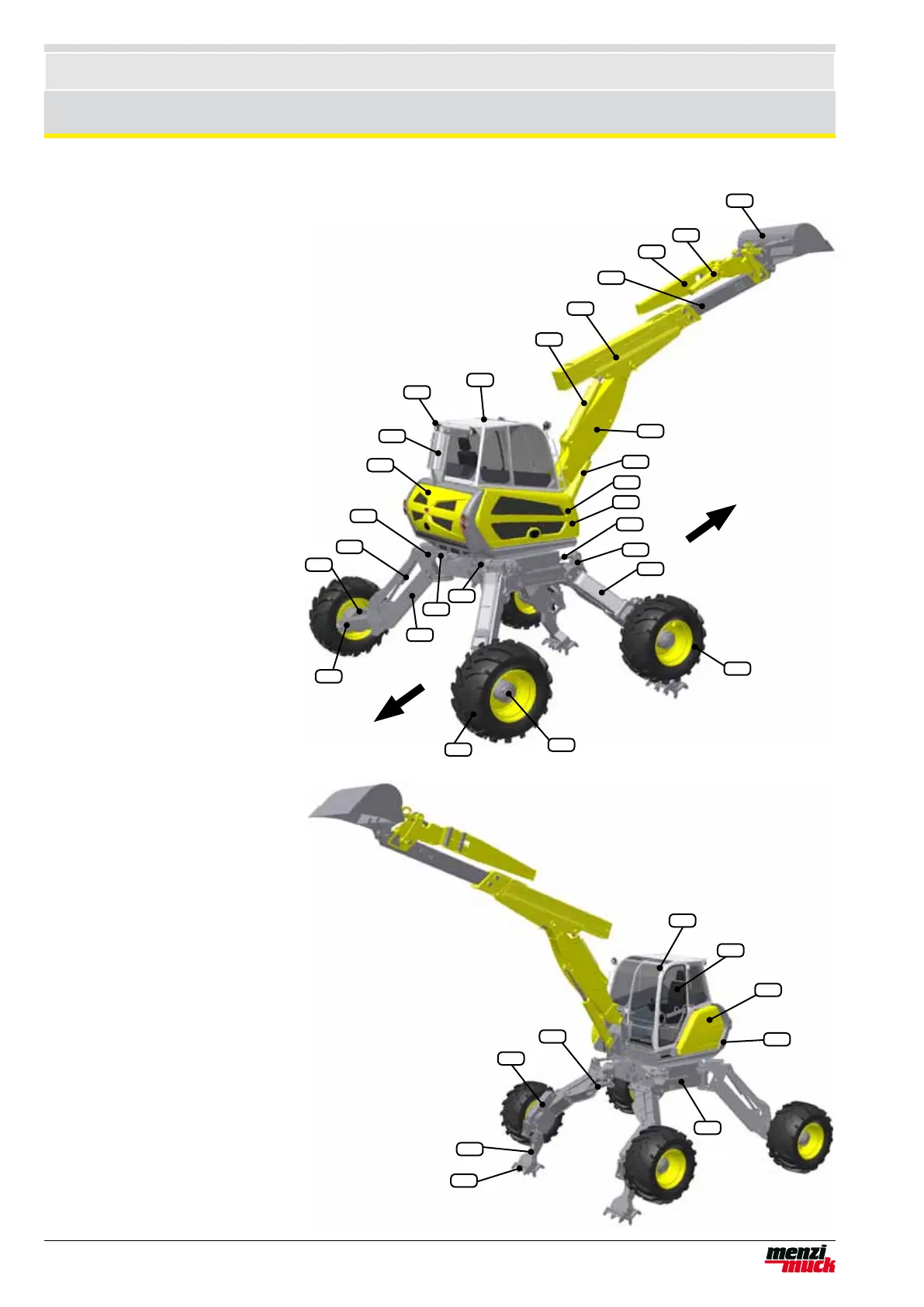

Structure
4.3 Menzi Muck A91 4x4 Plus
1. Bucket
2. Bucket cylinder
3. Hose pipe
4. Telescope arm / cylinder
5. Dipper
6. Dipper cylinder
7. Cab
8. Headlight - rear
9. Mufer / Particulate lter
10. Fearing - rear
11. Swivel base
12. Stabilizer cylinder - front
13. Axle pivot
14. Steering cylinder - front
15. Stabilizer - front
16. Stabilizer cylinder
17. Reserve tank
18. Hub drive - front
19. Hub engine
20. Hub drive - rear
21. Stabilizer - rear
22. Revolving head
23. Stabilizer cylinder - rear
24. Fearing - right
25. Diesel tank
26. Boom cylinder
27. Boom
28. Headlight - front
29. Operator's seat
30. Fearing - left
31. Center part
32. Chassis
33. Pad mountain stabilizer
34. Mountain stabilizer
35. Mountain stabilizer cylinder
36. Adjustment cylinder
