Menzi Muck A91 - Page 46

Page 46 www.menzimuck.com
Transport, packaging and storage
2
3
4
5
6
7 8
2
5
3
4
6
7
8
9

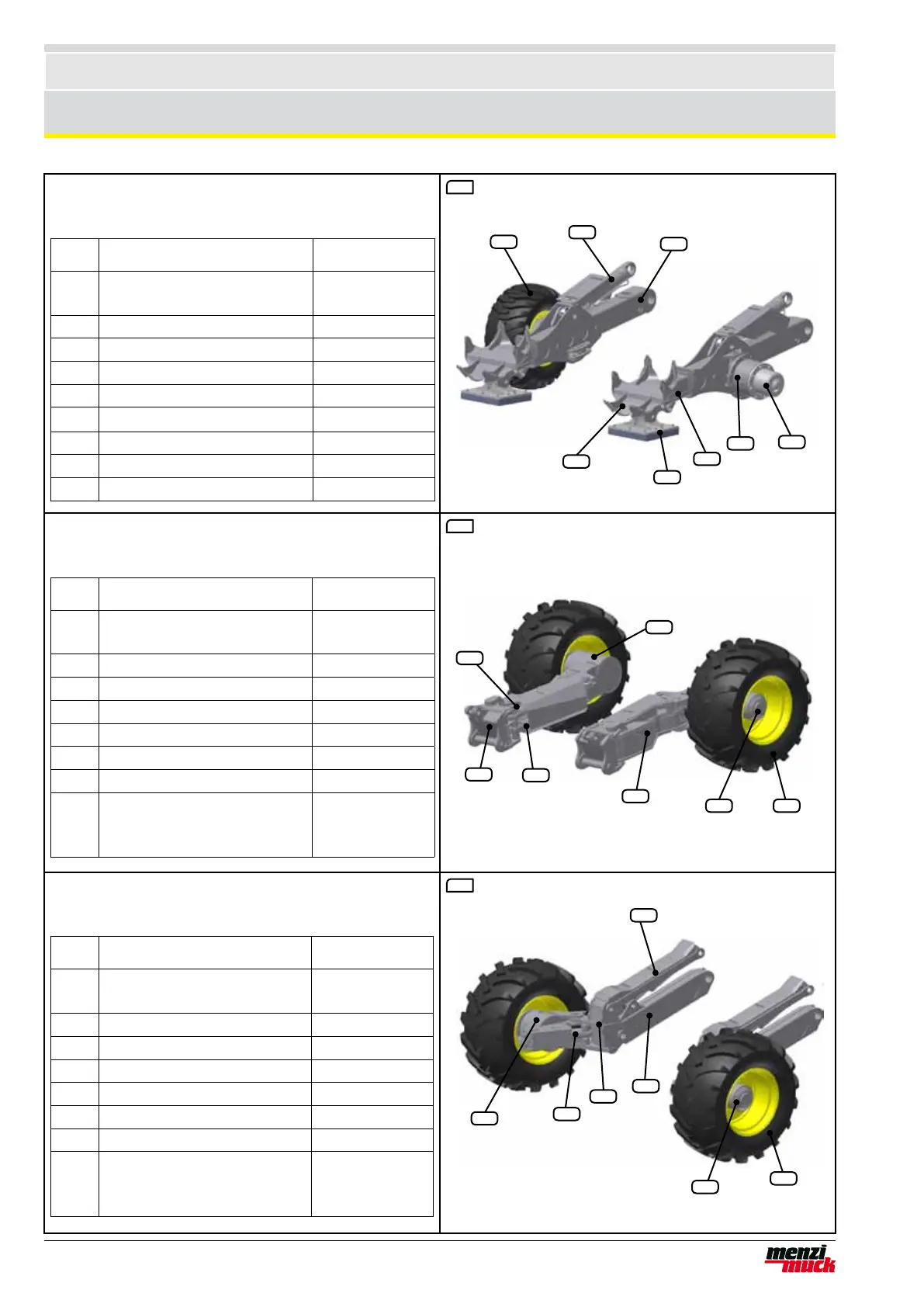

Front stabilization 4x4
Pos. Part Weight (kg/lbf)
1 2x Stabilizers 4x4 cpl.
incl. wheel 400/55-17.5
1450 / 3197
2 2x Wheels 400/55-17.5 165 / 364
3 2x Stabilizer cylinders 100 / 220
4 2x Stabilizers - outside beam 360 / 794
5 2x Steel pads 120 / 265
6 2x Rubber pads 85 / 187
7 2x Stabilizers - inner beam 180 / 397
8 2x Pivots 120 / 265
9 2x Hub drives 160 / 353
1
Rear stabilization 4x4 Plus 4RL
Pos. Part Weight (kg/lbf)
1 2x Stabilizers 4x4 Plus 4RL cpl.
incl. wheel 600/55-26.5
1900 / 4189
2 2x Pivots 240 / 529
3 2x Steering cylinders 100 / 220
4 2x Revolving heads 230 / 507
5 2x Adjustment cylinders 100 / 220
6 2x Stabilizers 360 / 794
7 2x Hub drives 190 / 419
8 2x Wheels 600/55-26.5
2x Wheels 600/50-22.5
2x Wheels 600/65-R23
570 / 1257
440 / 970
550 / 1213
1
Front stabilization 4x4 Plus P-Matik
Pos. Part Weight (kg/lbf)
1 2x Stabilizers 4x4 Plus P-Matik front
cpl. incl. wheel 600/55-26.5
1800 / 3968
2 2x Parallel guides 150 / 331
3 2x Stabilizers 300 / 661
4 2x Oil drain spacers 200 / 441
5 2x Steering cylinders 100 / 220
6 2x Pivots 160 / 353
7 2x Hub drives 190 / 419
8 2x Wheels 600/55-26.5
2x Wheels 600/50-22.5
2x Wheels 600/65-R23
570 / 1257
440 / 970
550 / 1213
1
2
6
5
4
3
7
8
