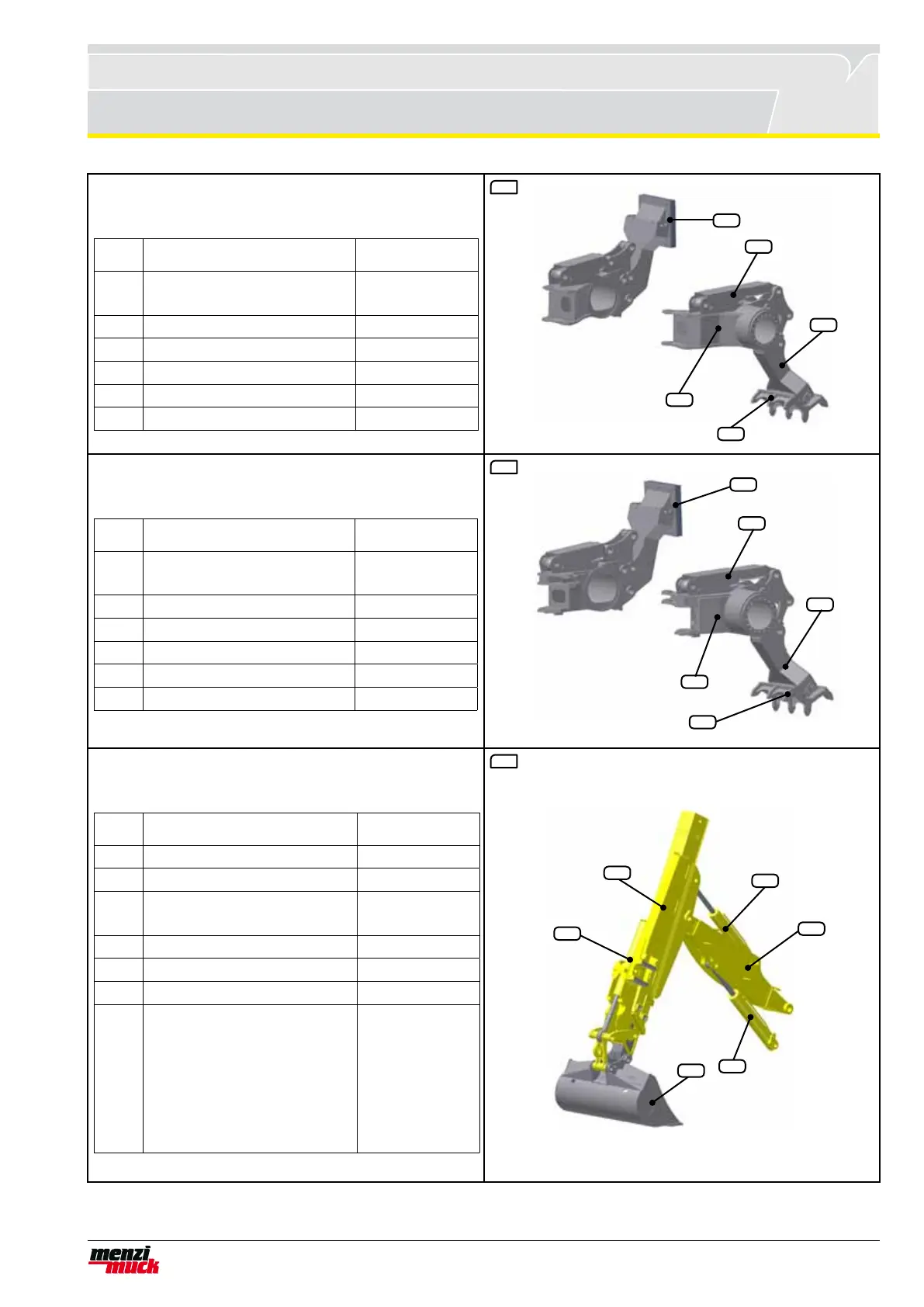

Transport, packaging and storage
Mountain stabilizer 4x4 Plus
Pos. Part Weight (kg/lbf)
1 2x Mountain stabilizers cpl. with
pivots
900 / 1984
2 2x Rubber pads 100 / 220
3 2x Mountain stabilizer cylinders 80 / 176
4 2x Supports mountain stabilizer 120 / 265
5 2x Steel pads 100 / 220
6 2x Pivots 350 / 772
1
Mountain stabilizer 4x4 Plus 4RL
Pos. Part Weight (kg/lbf)
1 2x Mountain stabilizers cpl. with
pivots
930 / 2050
2 2x Rubber pads 100 / 220
3 2x Mountain stabilizer cylinders 80 / 176
4 2x Supports mountain stabilizer 120 / 265
5 2x Steel pads 100 / 220
6 2x Pivots 380 / 838
1
Boom
Pos. Part Weight (kg/lbf)
1 Boom cpl. without bucket 2000 / 4409
2 Bucket cylinder 120 / 265
3 Dipper / telescopic arm cpl. with tele-
scope, arm brace and push rod
1200 / 2645
4 Dipper cylinder 130 / 287
5 Rear boom 400 / 882
6 Boom cylinder 140 / 309
7 400 Standard bucket
600 Standard bucket
800 Standard bucket
1000 Standard bucket
1250 Grading bucket
1500 Grading bucket
1350 Grading swiveling bucket
211 / 465
271 / 597
330 / 728
390 / 860
360 / 794
420 / 926
615 / 1356
