Control and Display elements

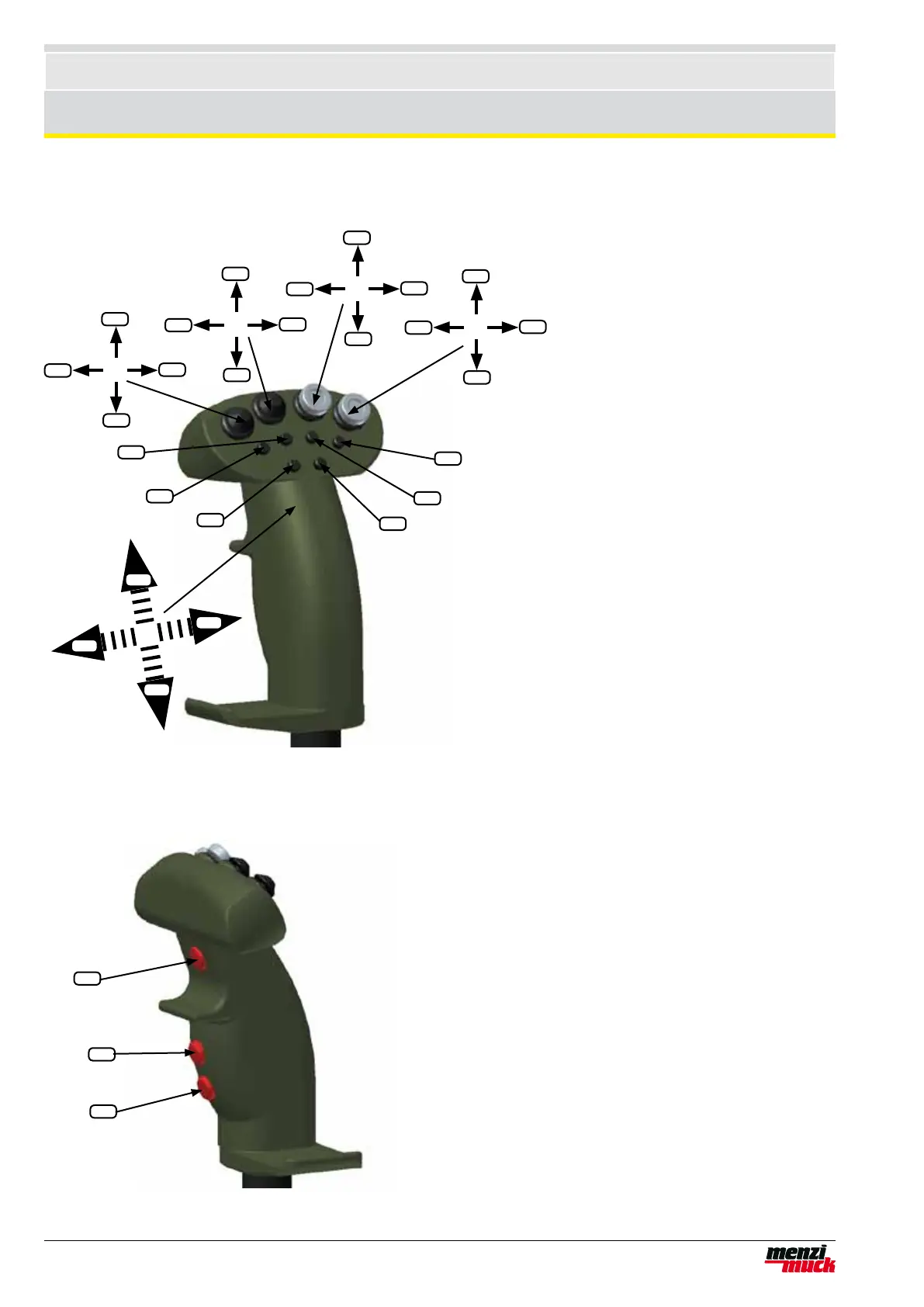

6.4.5 A91 4x4 Plus forest sensor steering
Refer to the chapter "Working with the machine" for a description of the joystick assignment for drive switchover.
27
28
29
Left
1
2
3
4
7
5
8
6
11
9
12
10
15
13
16
14
19
17
20
18
23
24
26
21
22
25
1. Dipper - out
2. Dipper - in
3. Swivelling - left
4. Swivelling - right
5. Feed slow
6. Roller open - close
7. Grappler - open
8. Grappler - close
9. Stabilizator rear left - up
10. Stabilizator rear left - down
11. Stabilizator rear left - outwards
12. Stabilizator rear left - inwards
13. Stabilizator front left - up
14. Stabilizator front left - down
15. Stabilizator front left - outwards
16. Stabilizator front left - inwards
17. Mountain stabilizer left - up *
18. Mountain stabilizer left - down *
19. Hub drive left front - outwards
20. Hub drive left front - inwards
21. Automatic felling position
22. Feed unit up / down
23. Powerline *
24. Additional hydr. circuit 80 l/min
25. Position head / oating position
26. Hydr. quick changer - open
27. Commutation direction - pivots to stabilizers
28. Interval windshield wiper
29. Additional hydr. circuit 40 l/min *
* optional
