Operation Manual Menzi Muck A91 Page 71

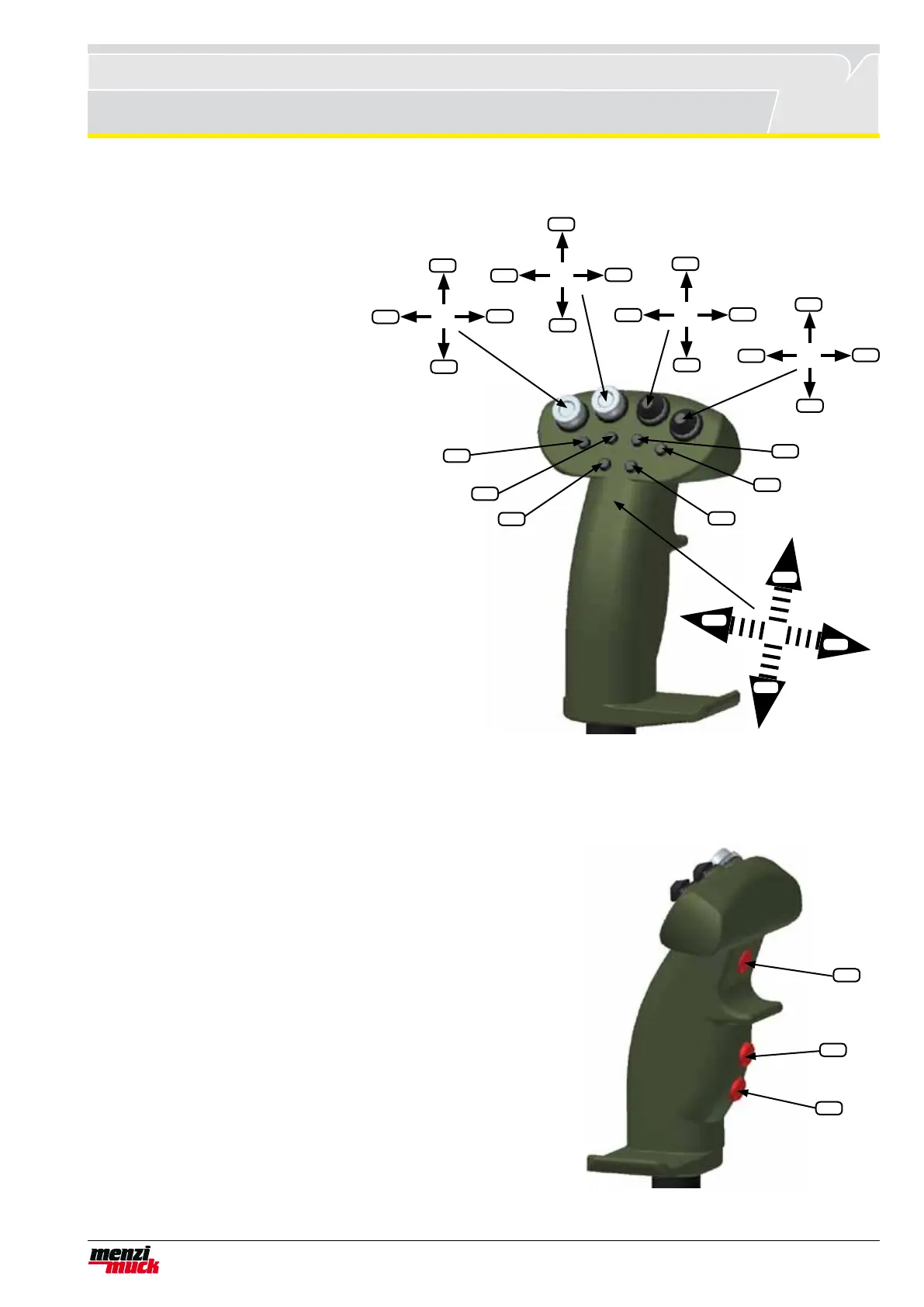

Control and Display elements
1. Boom - down
2. Boom - up
3. Bucket - close
4. Bucket - open
5. Roller feed forward
6. Roller feed back
7. Rotator - turning anticlockwise
8. Rotator - turning clockwise
9. Stabilizator rear right - up
10. Stabilizator rear right - down
11. Stabilizator rear right - inwards
12. Stabilizator rear right - outwards
13. Stabilizator front right - up
14. Stabilizator front right - down
15. Stabilizator front right - inwards
16. Stabilizator front right - outwards
17. Mountain stabilizer right - up *
18. Mountain stabilizer right - down *
19. Hub drive right front - inwards
20. Hub drive right front - outwards
21. Auto - on / off
22. Saw
23. Reduce pressure of grappler
24. Additional hydr. circuit 80 l/min
25. Fix head / oating position
26. Reset idling speed
27. Commutation - bucket to direction of pivots
28. Commutation - direction of pivots front/rear
29. Additional hydr. circuit 40 l/min *
* optional
27
28
29
22
21
26
24
23
25
19
17
20
18
15
13
16
14
11
9
12
10
7
5
8
6
1
2
4
3
Right
