Control and Display elements

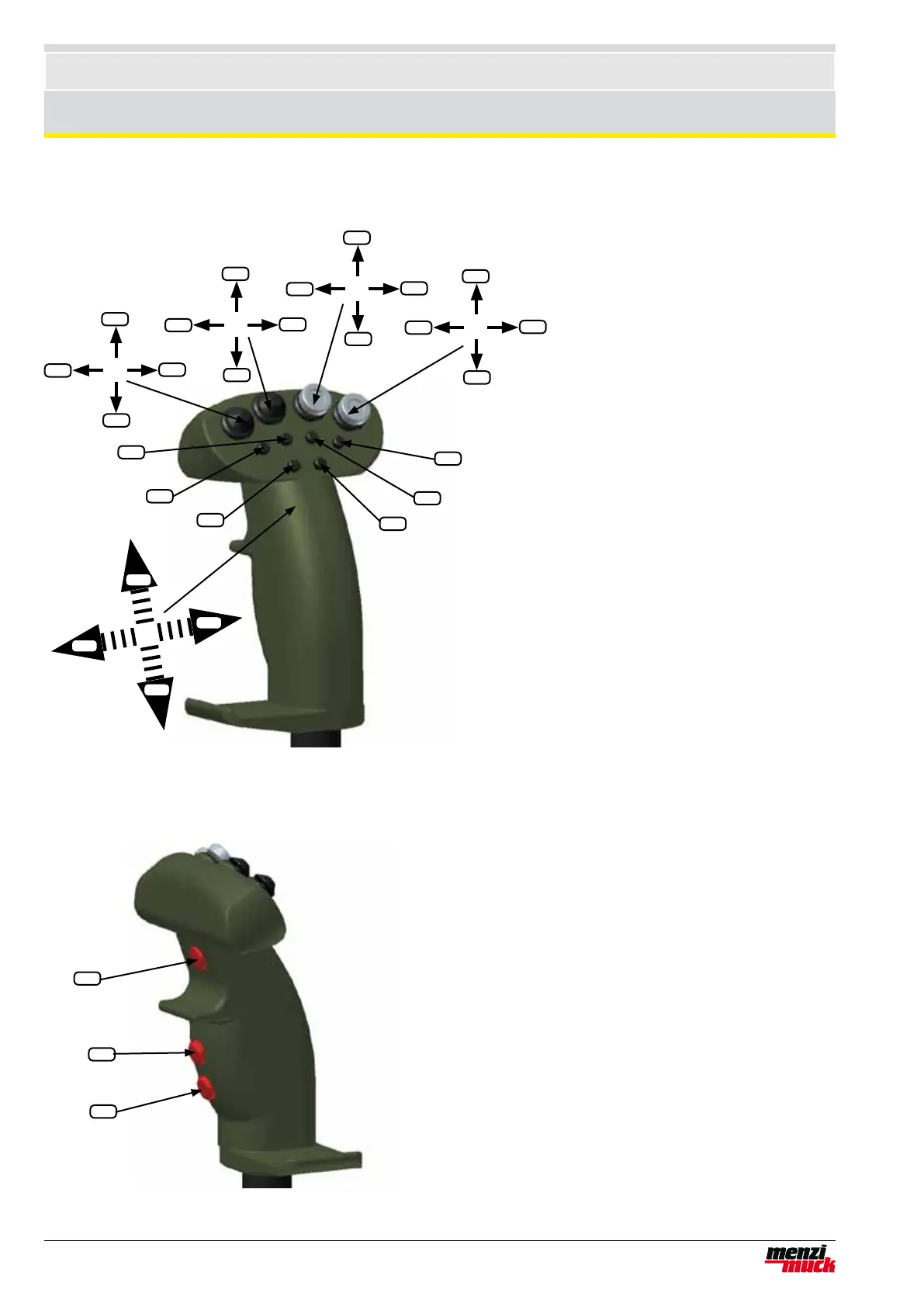

6.4.6 A91 4x4 lift axle and steered hub drive
27
28
29
Left
1
2
3
4
7
5
8
6
11
9
12
10
15
13
16
14
19
17
20
18
23
24
26
21
22
25
1. Dipper - out
2. Dipper - in
3. Swivelling - left
4. Swivelling - right
5. Grappler of tiltrotatorgreifer - open *
6. Grappler of tiltrotatorgreifer - close *
7. Tiltrotator swivelling - left *
8. Tiltrotator swivelling - right *
9. Stabilizator rear left - up
10. Stabilizator rear left - down
11. Stabilizator rear left - outwards
12. Stabilizator rear left - inwards
13. Stabilizator front left - up
14. Stabilizator front left - down
15. Stabilizator front left - outwards
16. Stabilizator front left - inwards
17. Telescopic stabilizer left - out and
lift axle left - up
18. Telescopic stabilizer left - in and
lift axle left - down
19. Hub drive left - outwards
20. Hub drive left - inwards
21. Additional hydr. circuit 80 l/min
22. Additional hydr. circuit 80 l/min
23. Powerline *
24. Horn
25. reserve
26. Interval windshield wiper
27. Commutation direction - pivots to stabilizators
28. Commutation - telescopic stabilizer to lift axle
29. reserve
* optional
