Operation Manual Menzi Muck A91 Page 73

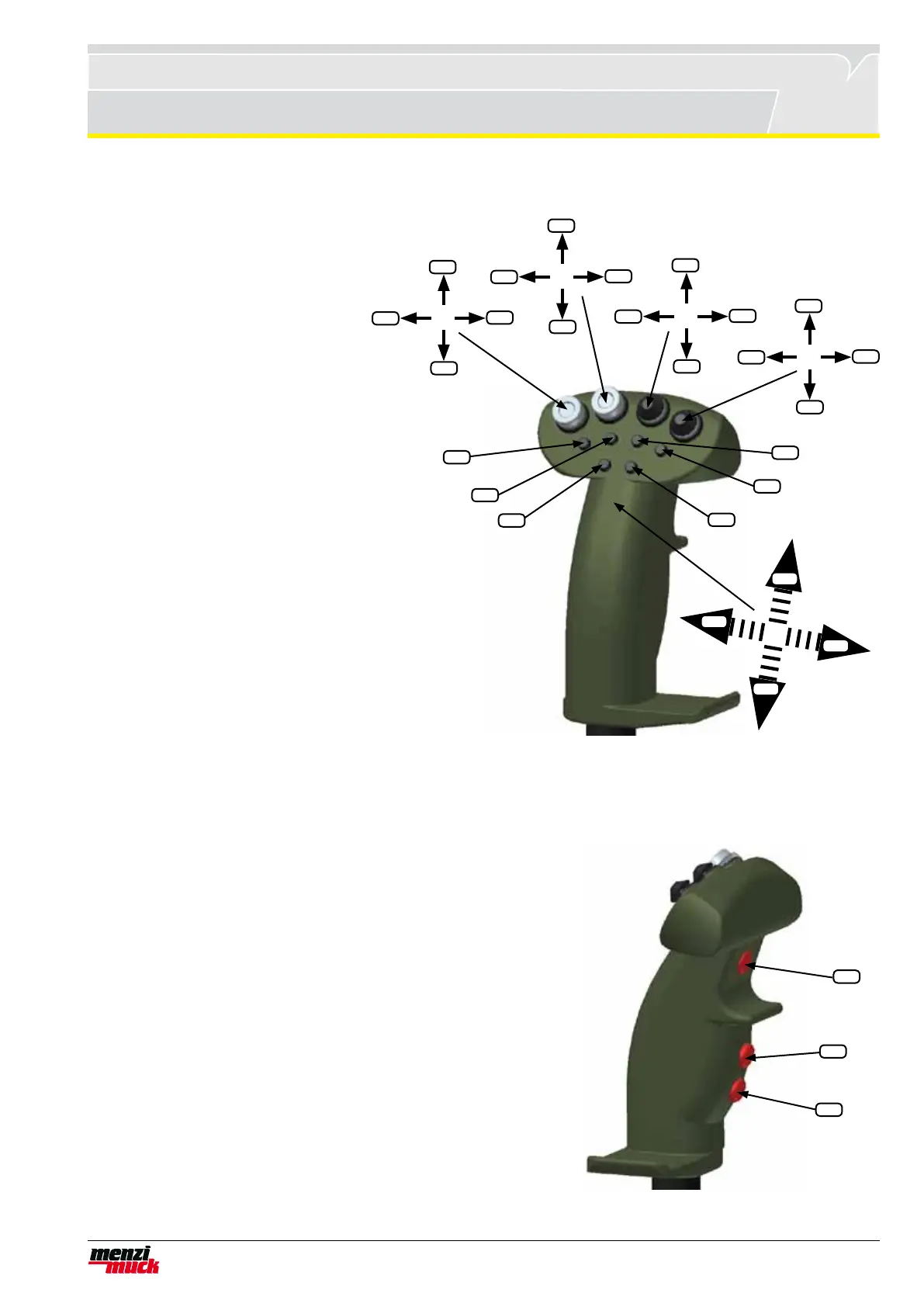

Control and Display elements
27
28
29
22
21
26
24
23
25
19
17
20
18
15
13
16
14
11
9
12
10
7
5
8
6
1
2
4
3
Right
1. Boom - down
2. Boom - up
3. Bucket - close
4. Bucket - open
5. Grappler - open *
6. Grappler - close *
7. Tiltrotator - turning anticlockwise *
8. Tiltrotator - turning clockwise *
9. Stabilizator rear right - up
10. Stabilizator rear right - down
11. Stabilizator rear right - inwards
12. Stabilizator rear right - outwards
13. Stabilizator front right - up
14. Stabilizator front right - down
15. Stabilizator front right - inwards
16. Stabilizator front right - outwards
17. Telescopic stabilizer right - out and
lift axle right - up
18. Telescopic stabilizer right - in and
lift axle right - down
19. Hub drive right - inwards
20. Hub drive right - outwards
21. Additional hydr. circuit 40 l/min *
22. Additional hydr. circuit 40 l/min *
23. reserve
24. reserve
25. Hydr. quick changer - open *
26. Reset idling speed
27. Commutation from bucket to stabilisator direction
28. Hydr. freewheel *
29. reserve
* optional
