Cooling System
90-863758060 AUGUST 2006 Page 7A-19

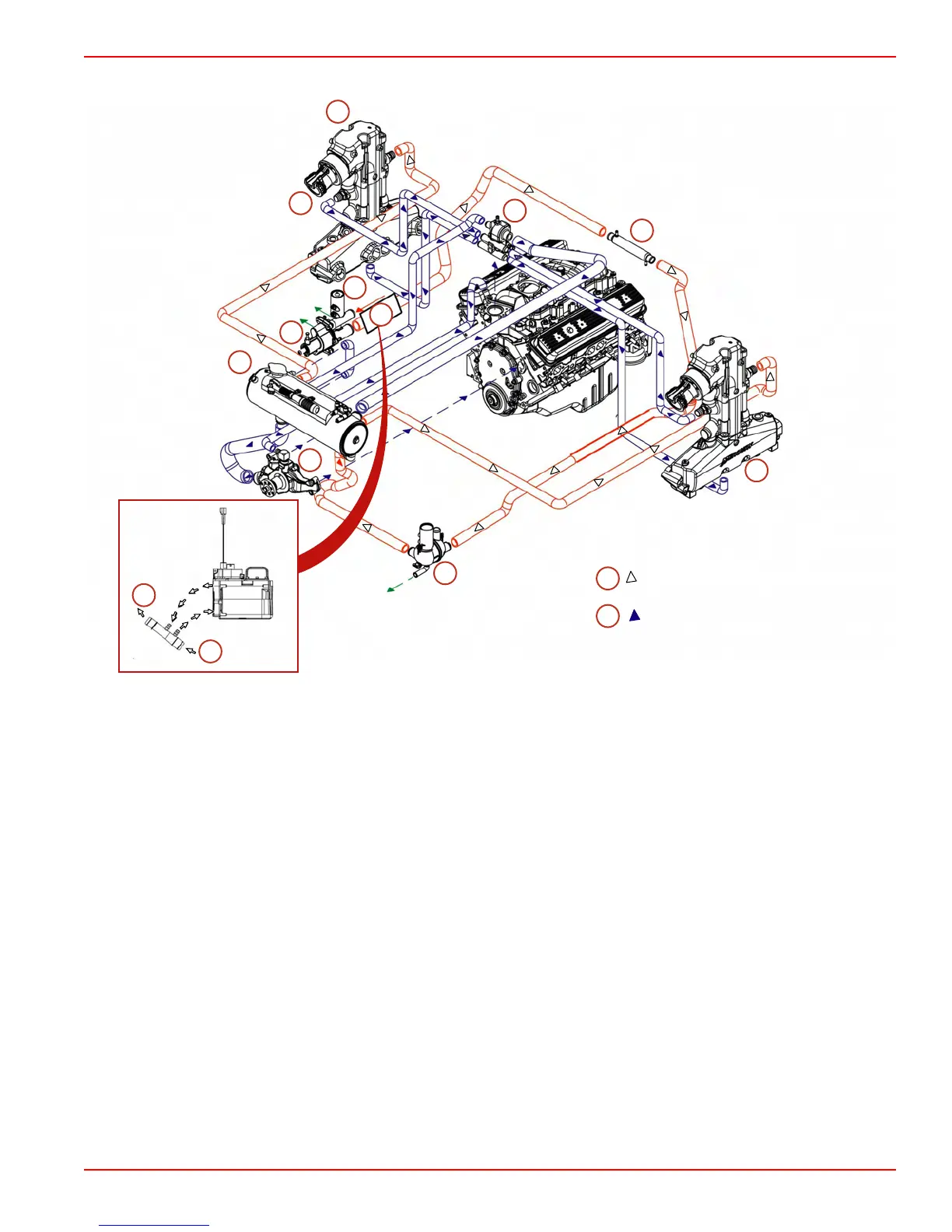

CLOSED COOLED V-DRIVE EXHAUST MODELS
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
8183
a - Seawater inlet
b - Transmission cooler
c - Gen III Cool Fuel module
d - Exhaust and seawater outlet
e - Exhaust manifold
f - Distribution housing
g - Water circulating pump
h - Thermostat housing
i - Exhaust elbow
j - Seawater pump
k - Heat exchanger
l - To transmission cooler
m -From seawater pump
n - Seawater
o - Ethylene glycol mix
