Mercury MERCRUISER - Page 117

Cooling System
Page 7A-20 90-863758060 AUGUST 2006

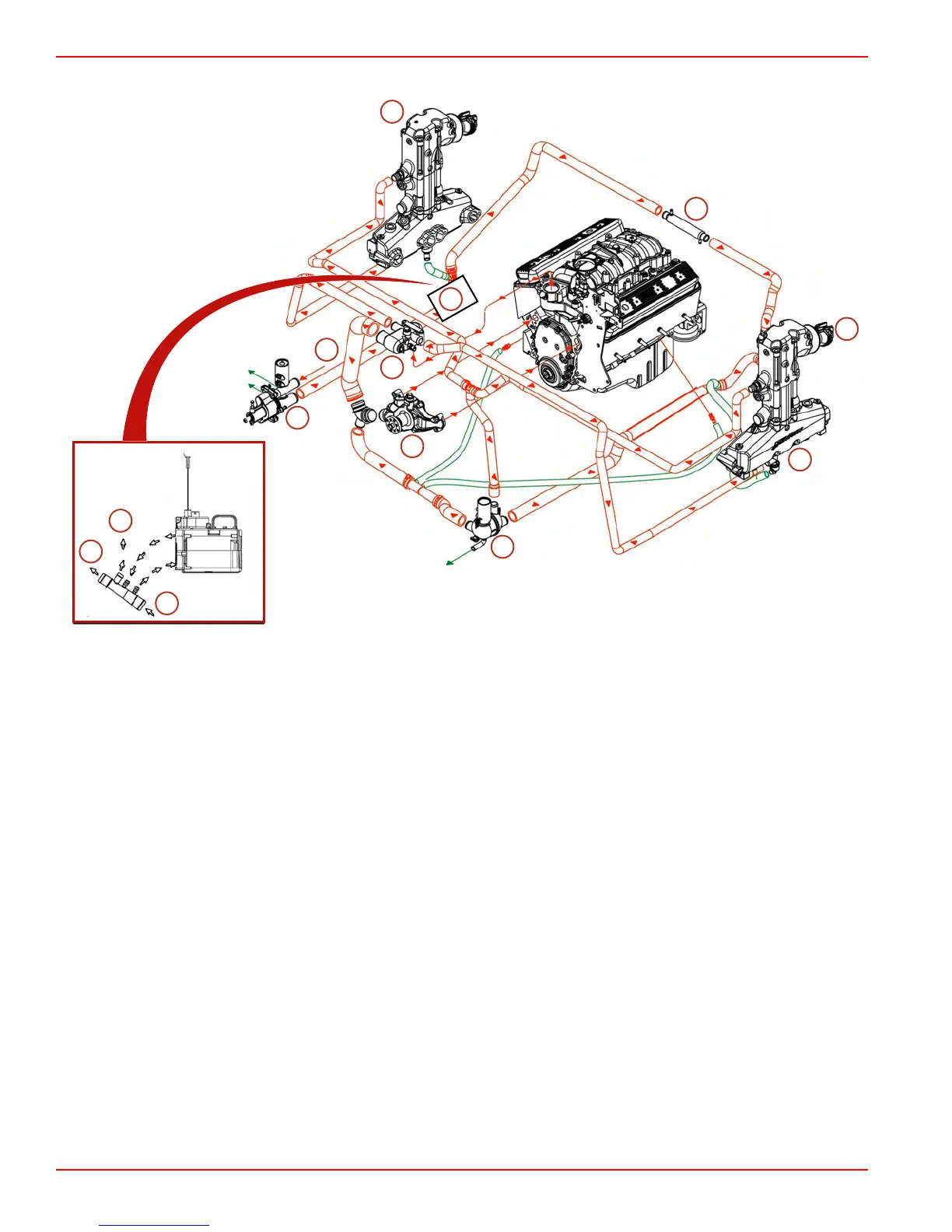

SEAWATER COOLED MODELS
a
b
d
e
f
g
h
i
j
l
k
m
c
8184
a - Seawater inlet
b - Transmission cooler
c - Gen III Cool Fuel module
d - Exhaust and seawater outlet
e - Exhaust manifold
f - Distribution housing
g - Water circulating pump
h - Thermostat housing
i - Exhaust elbow
j - Seawater pump
k - Drain from starboard exhaust
manifold
l - To power steering cooler
m -From seawater pump
