Section 5 - Maintenance
Page 94 90-8M0069751 eng APRIL 2012
Transom Assembly

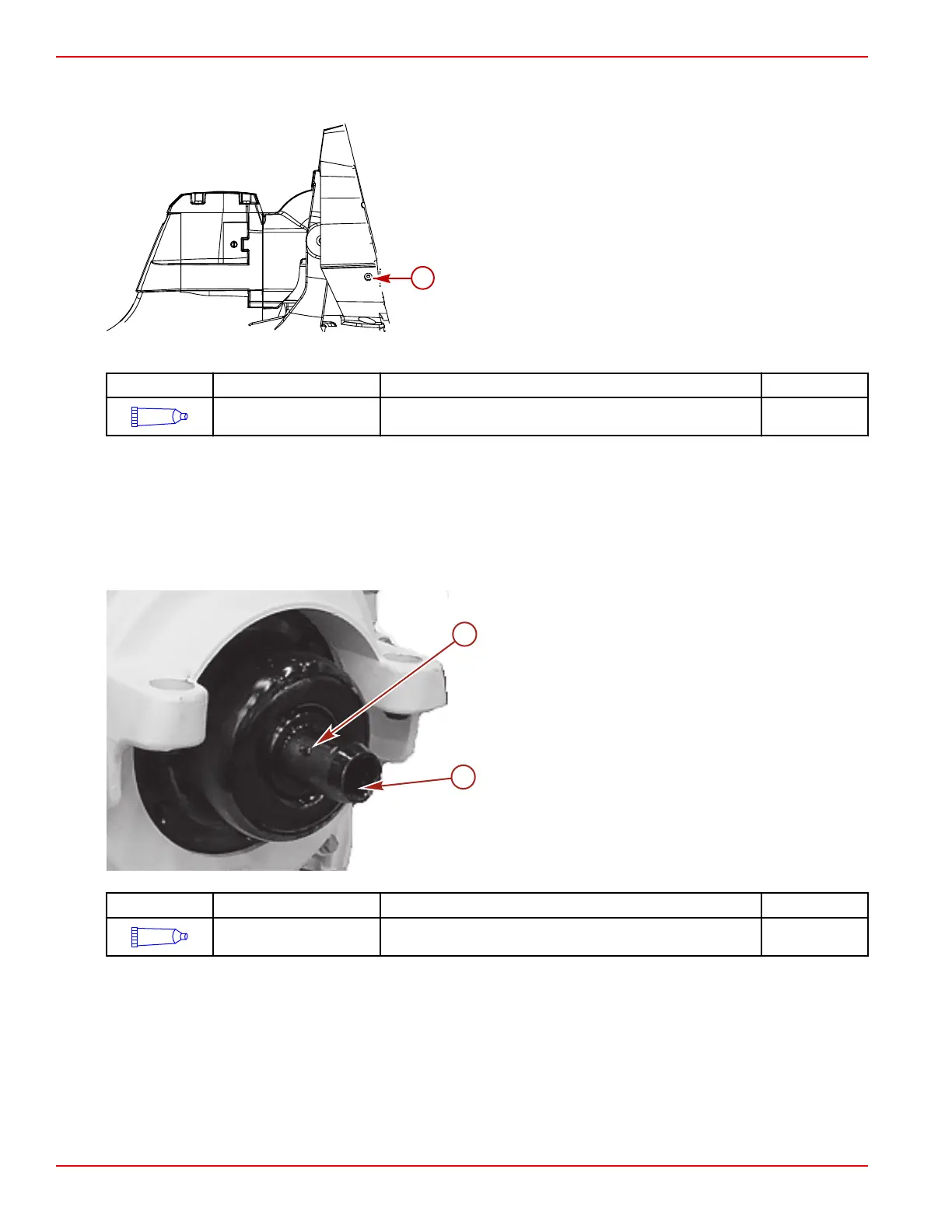

1. Lubricate the gimbal bearing by applying approximately 8‑10 pumps of grease from a typical hand‑operated grease gun.
a - Gimbal bearing grease insert
Tube Ref No. Description Where Used Part No.
42
U-joint and Gimbal
Bearing Grease
Gimbal bearing grease insert 92-802870A1
Engine Coupler
IMPORTANT: These engines are equipped with a sealed engine coupler. The sealed coupler and the shaft splines can be
lubricated without removing the sterndrive.
1. Lubricate the engine coupler splines through the grease fitting on the coupler by applying approximately 8‑10 pumps of
Engine Coupler Spline Grease from a typical hand‑operated grease gun.
NOTE: If the boat is operated at idle for prolonged periods of time, the coupler should be lubricated on Bravo models every
50 hours.
a - Grease fitting
b - Coupler splines
Tube Ref No. Description Where Used Part No.
91
Engine Coupler Spline
Grease
Engine coupler and shaft splines 92-802869A 1
Driveshaft Extension Models
1. Lubricate the transom end grease fitting and engine end grease fitting by applying approximately 10–12 pumps of grease
from a typical hand‑operated grease gun.
a
19979
a
b
23500
