Section 5 - Maintenance
90-8M0069751 eng APRIL 2012 Page 65

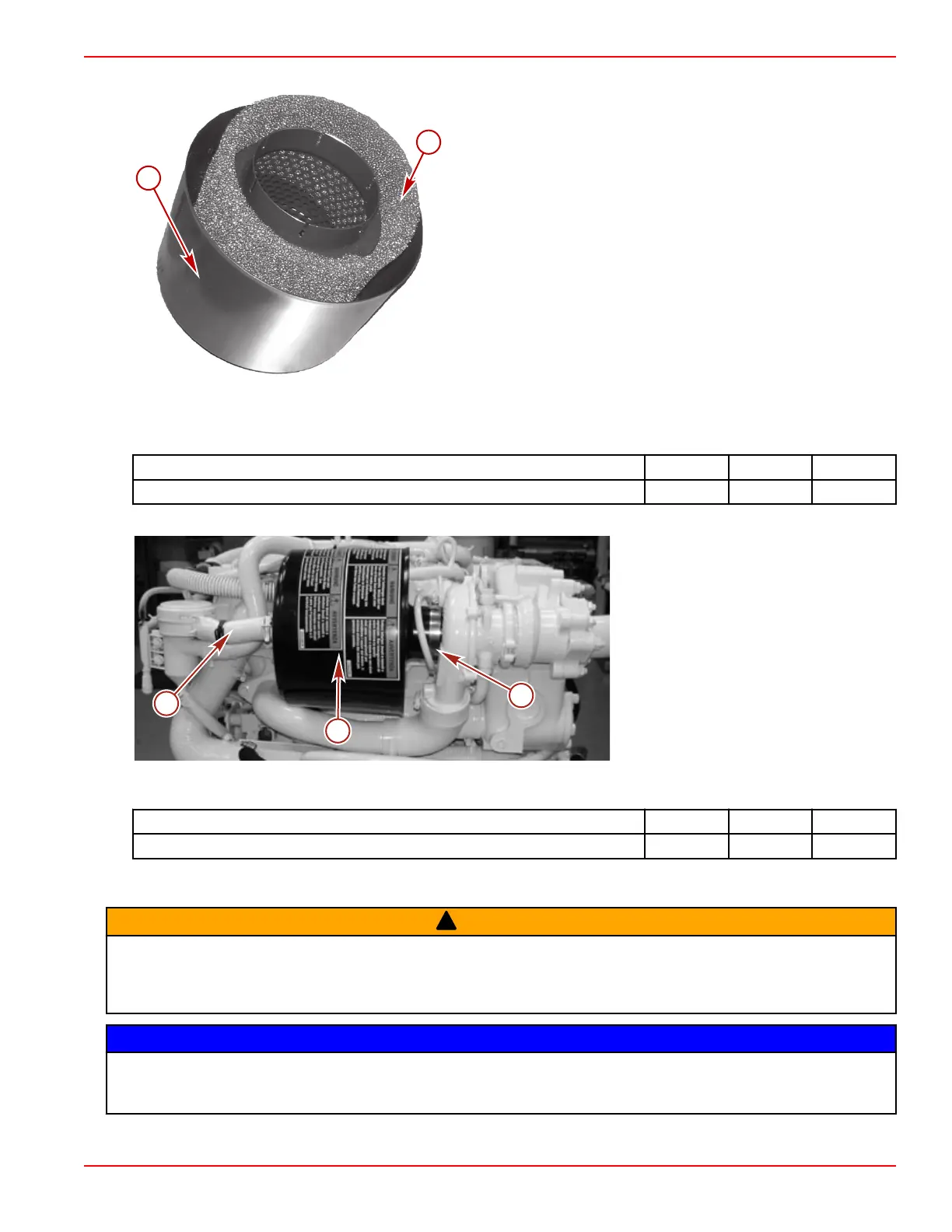

1. Slide the filter element into the air filter housing. Ensure that the element is seated fully into the air filter housing.
a - Air filter housing
b - Air filter element
NOTE: The warning labels on the air filter housing must be visible after the air filter housing is installed.
2. Install the air filter housing on to the turbocharger inlet.
3. Tighten the air filter housing clamp to specification.
Description
Nm lb–in. lb–ft
Air filter housing clamp 5.6 50 –
4. Install the oil separator vent hose. Tighten the oil separator vent hose clamp securely.
Air filter housing
a - Air filter housing
b - Oil separator vent hose
c - Air filter retaining clamp
5. Tighten the oil separator vent hose clamp to specification.
Description
Nm lb–in. lb–ft
Oil separator vent hose clamp 5.6 50 –
Water‑Separating Fuel Filter
!
WARNING
Fuel is flammable and explosive. Ensure that the key switch is off and the lanyard is positioned so that the engine cannot
start. Do not smoke or allow sources of spark or open flame in the area while servicing. Keep the work area well ventilated
and avoid prolonged exposure to vapors. Always check for leaks before attempting to start the engine, and wipe up any
spilled fuel immediately.
NOTICE
Water entering the fuel injection system will cause corrosion and rusting of the injectors and other components, disabling the
fuel injection system. Check daily for water in the water‑separating fuel filter and have the engine inspected immediately if
there is evidence of water in the fuel system.
