Section 2 - Getting to Know Your Power Package
Page 12 90-8M0069751 eng APRIL 2012

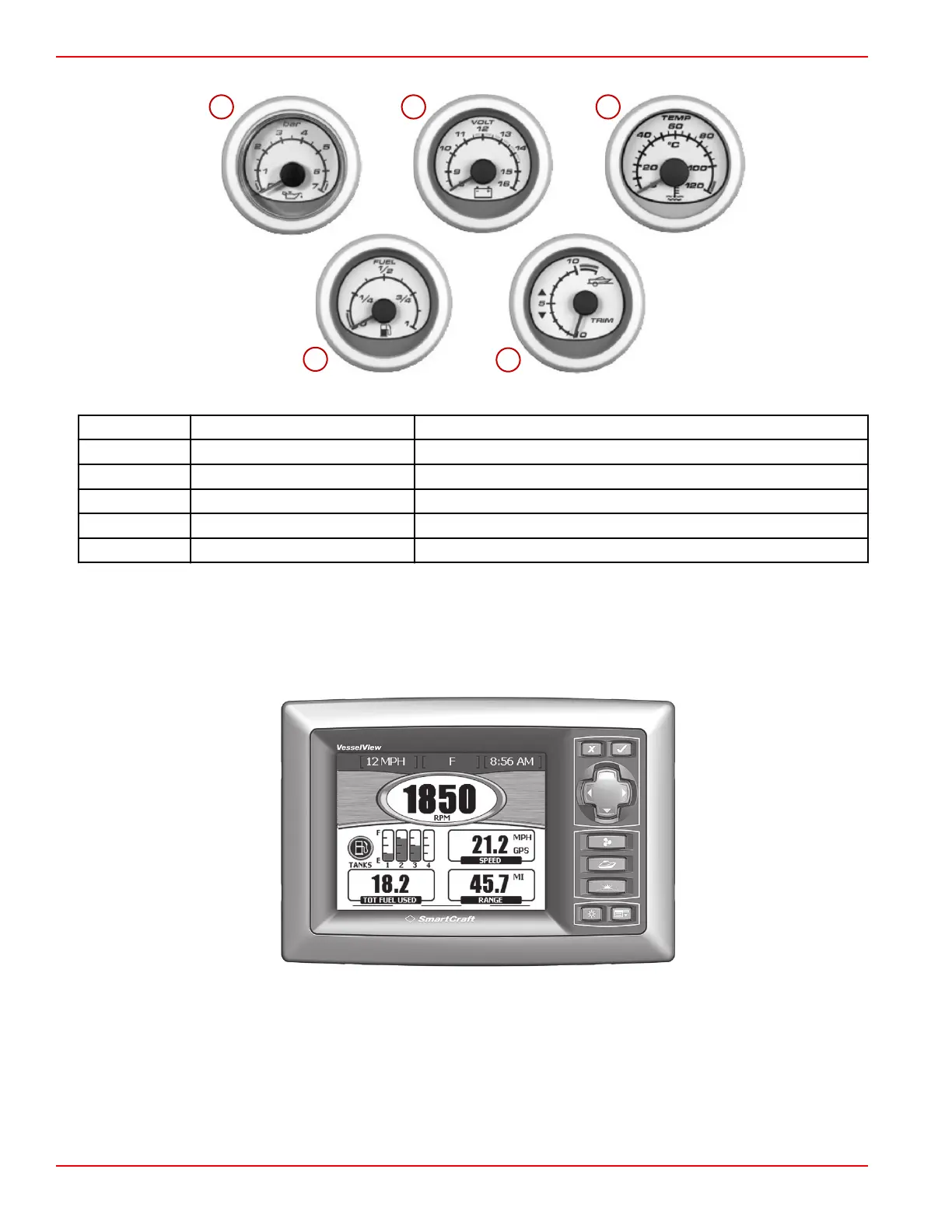

The following types of gauges may be included with your power package.
Typical gauges
Reference Gauge Function
a Oil pressure gauge Indicates engine oil pressure.
b Battery meter Indicates battery voltage.
c Coolant temperature gauge Indicates engine operating temperature.
d Fuel gauge Indicates quantity of fuel in tank.
e Power trim gauge Indicates sterndrive angle (trim up [out] and down [in]).
VesselView (if equipped)
Your power package may be connected to a SmartCraft VesselView display. The interactive VesselView display continuously
reports real‑time information about speed and performance, engine fault codes, fuel status, water temperature and depth, and
other operating data. When VesselView detects a problem with any connected system, it displays an alarm message to the
boat operator.
Typical VesselView display
VesselView may also be connected to other vessel systems such as GPS, generators, and cabin environmental controls. This
vessel integration allows the operator to monitor and control a wide range of vessel systems from a single display.
Refer to your VesselView operations manual for detailed instructions on how to operate this display.
