Mercury Sterndrive QSD 2.0 User Manual

Section 5 - Maintenance
Page 48 90-8M0069751 eng APRIL 2012
2. Remove the dipstick. Wipe clean and reinstall into the dipstick tube.

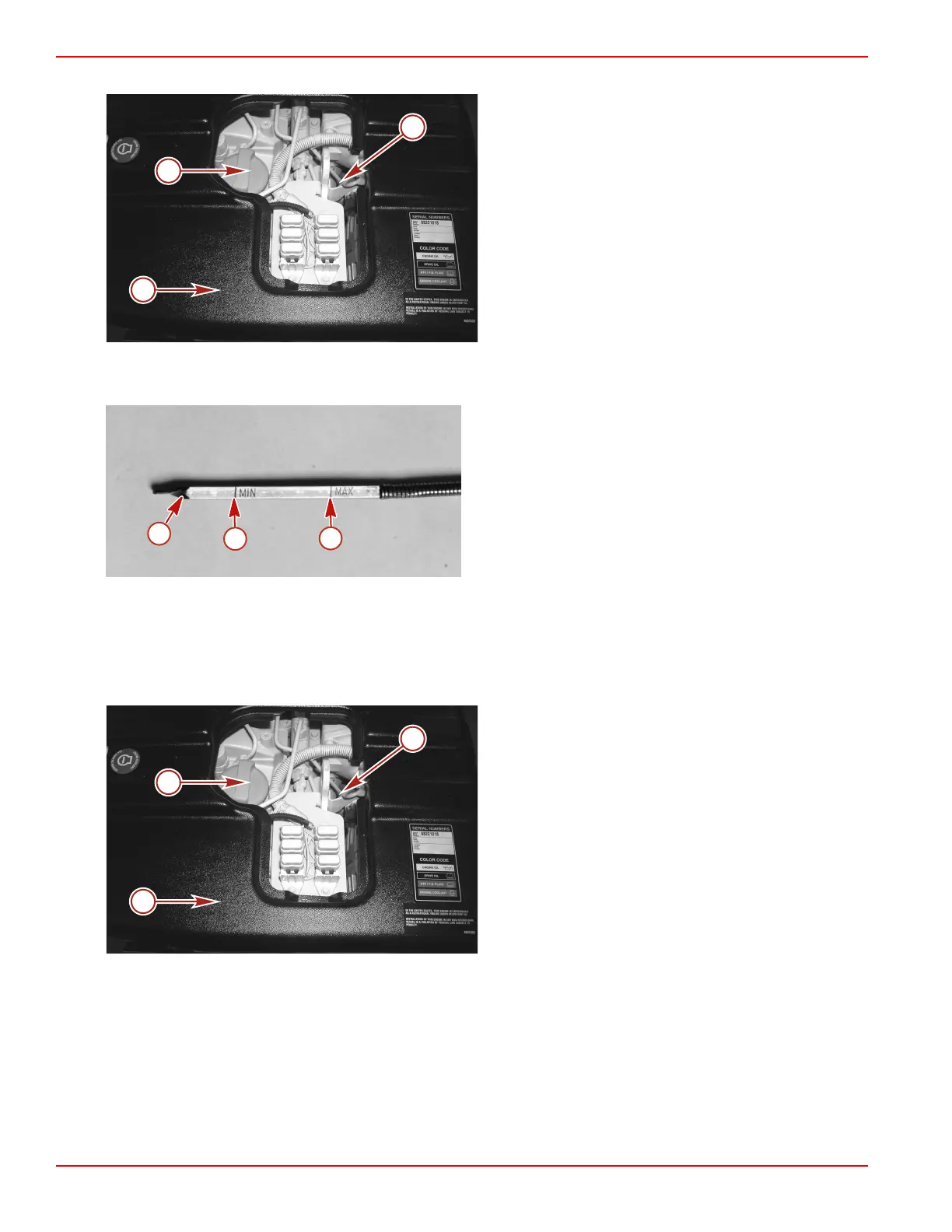

QSD 2.0L engine oil service
a - Engine cover with access panel removed
b - Engine oil fill cap
c - Engine oil dipstick
3. Remove the dipstick and observe the oil level. The oil level must be between the marks on the dipstick. If necessary, add
oil. See Filling.
Engine oil level markings
a - Dipstick
b - Minimum operating level
c - Full mark and maximum operating level
4. Install engine oil dipstick
Filling
IMPORTANT: Do not overfill the engine with oil.
1. Remove the oil fill cap.
QSD 2.0L engine oil service
a - Engine cover with access panel removed
b - Engine oil fill cap
c - Engine oil dipstick
a
b
c
27986
14624
a
b
c
a
b
c
27986
