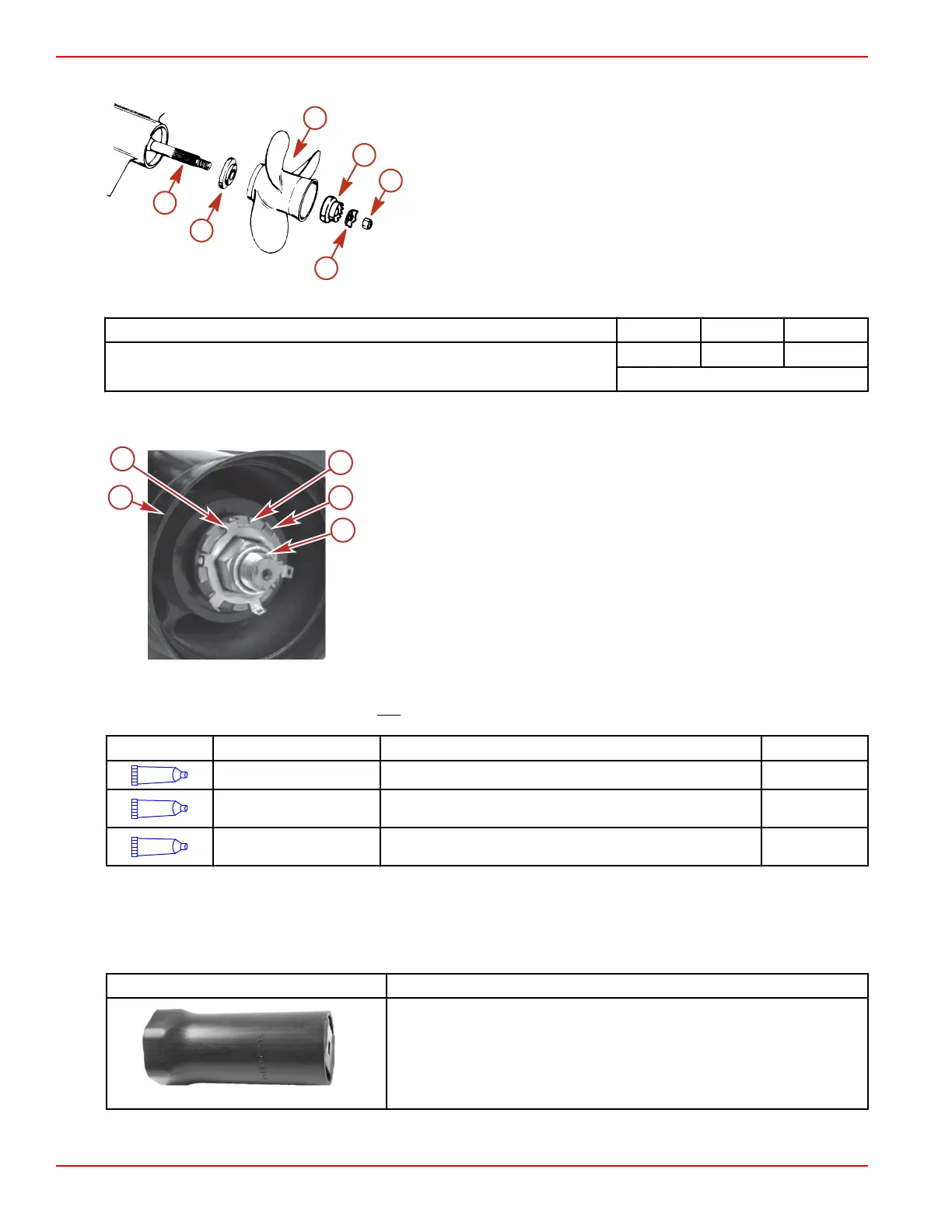

Section 5 - Maintenance
Page 104 90-8M0069751 eng APRIL 2012
3. Torque the propeller nut.
Bravo Two
a - Propeller shaft splines
b - Forward thrust hub
c - Propeller
d - Spline washer
e - Tab washer
f - Propeller nut
NOTE: The propeller torque stated is a minimum torque value.
Description
Nm lb–in. lb–ft
Bravo Two propeller nut
81 60
Then align tabs with groves
4. Continue to tighten the propeller nut until the three tabs on the tab washer align with the grooves on the spline washer.
5. Bend the three tabs down into the grooves.
a - Prop
b - Tab washer
c - Drive sleeve adapter
d - Tab bent down
e - Propeller nut
Bravo Three
1. Liberally coat the propeller shaft spline with one of the following Quicksilver lubricants.
Tube Ref No.
Description Where Used Part No.
34
Special Lubricant 101 Propeller shaft splines 92-802865Q02
95
2-4-C Marine Lubricant
with PTFE
Propeller shaft splines 92-802859A 1
95
2-4-C Marine Lubricant
with PTFE
Propeller shaft splines 92-802859A 1
NOTE: Anti‑corrosion grease is for saltwater applications only.
2. Slide the forward thrust hub onto the propeller shaft with the tapered side toward the propeller hub.
3. Align splines and place front propeller on propeller shaft.
4. Install the front propeller locknut and torque using the Propeller Nut Tool.
Propeller Nut Tool
91‑805457T 1
10677
Aids in the removal and installation of the front propeller nut.
8566
a
b
c
f
d
e
a
b
c
d
e
4750
