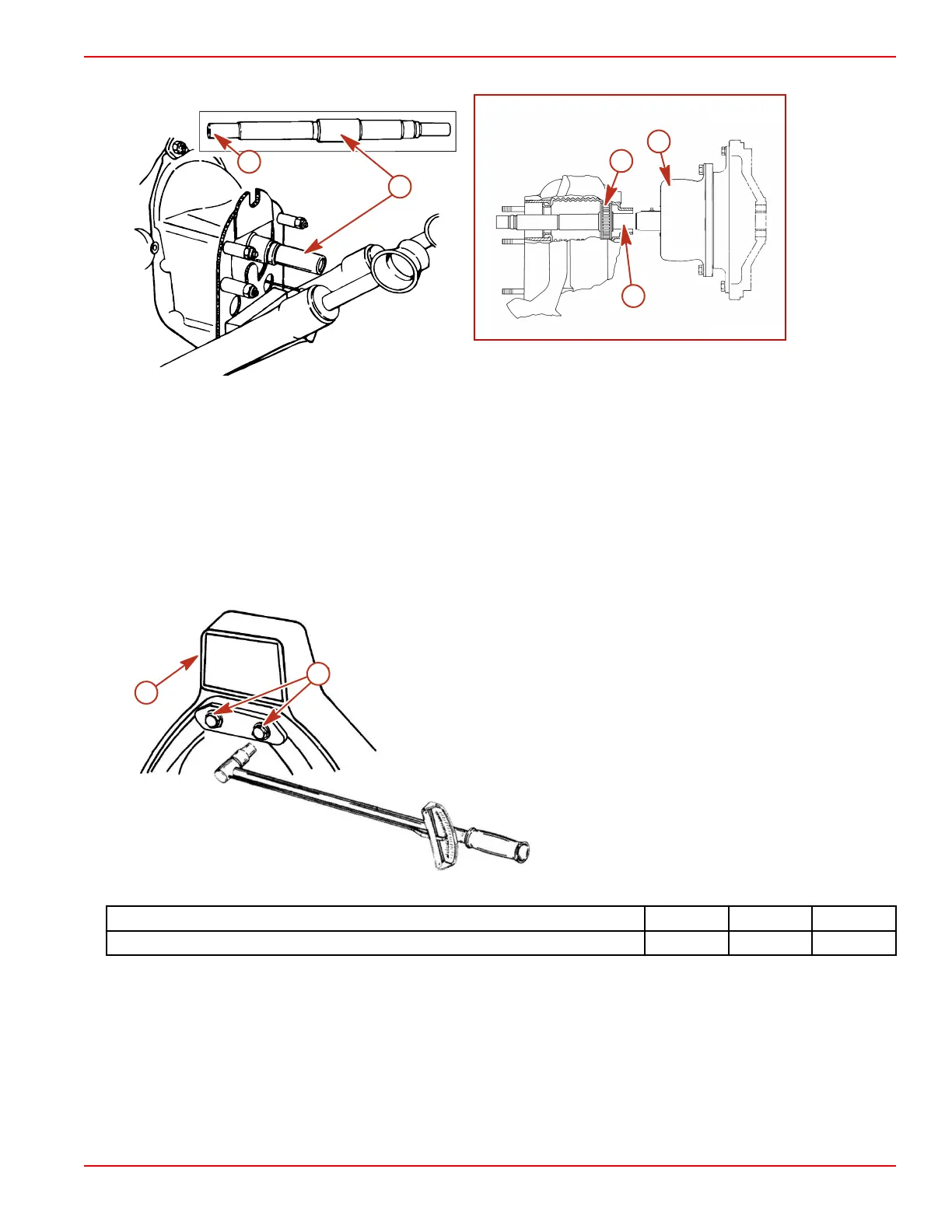

5. Check the engine alignment.
a - Alignment tool
b - End of alignment tool to insert through gimbal housing assembly
c - Gimbal bearing
d - Engine coupler
Maintaining Torques
Alpha Gimbal Ring Clamp Bolt
NOTE: The gimbal ring is a component of the transom assembly.
Torque the gimbal ring clamp bolts.
a - Transom assembly
b - Gimbal ring clamp bolts
Description Nm lb. in. lb. ft.
Gimbal ring clamp bolts 74 55
Bravo Gimbal Ring U‑bolt Nuts
NOTE: The gimbal ring is a component of the transom assembly.
b
a
7936
c
d
a
19624
a
b
