Section 2 - Getting to Know Your Power Package
90-8M0069751 eng APRIL 2012 Page 13

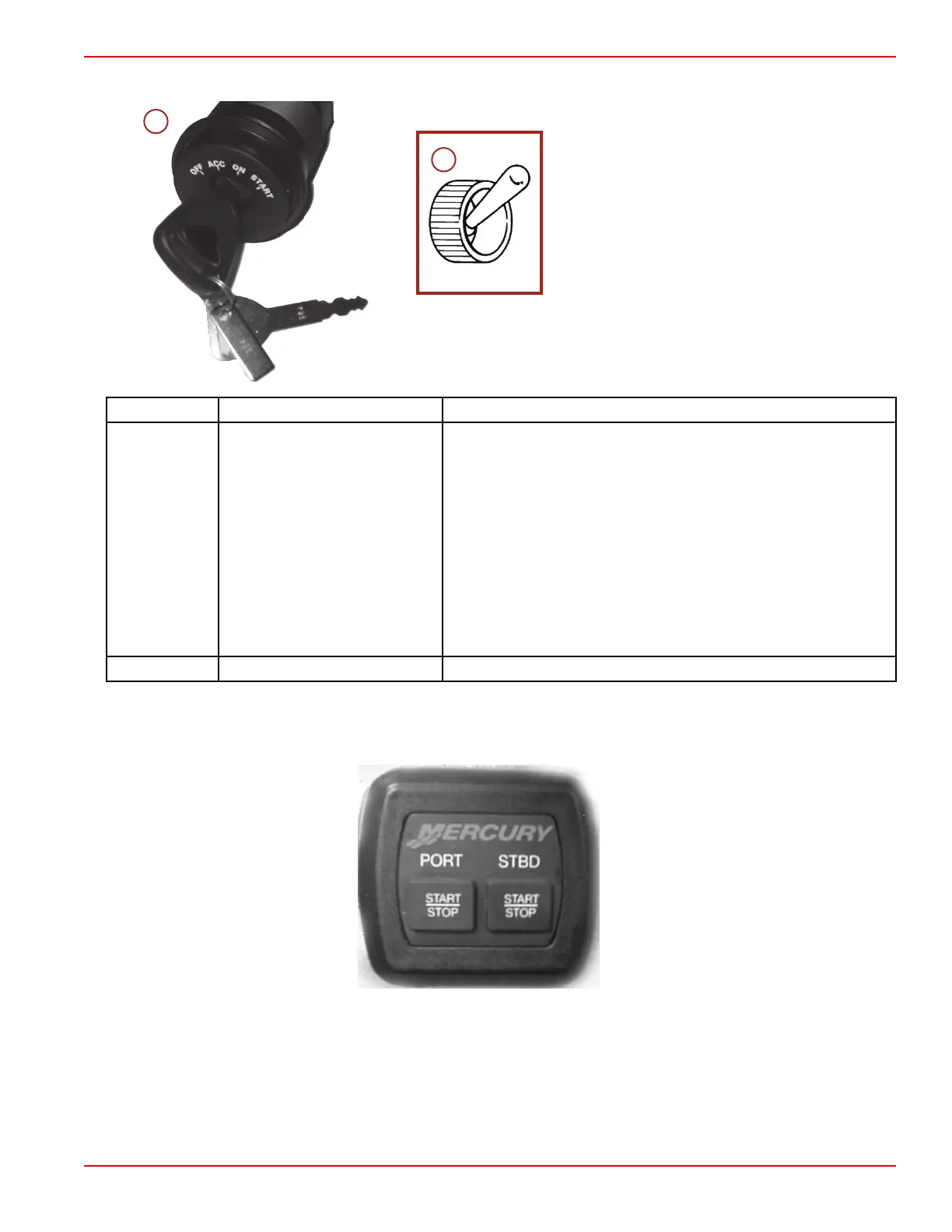

Switches
a - Key switch
b - Bilge blower switch (if equipped)
Reference Switch Function
a Key switch Has four positions.
1.
"OFF." In the "OFF" position, all electrical circuits are off and the
engine cannot be started. The engine is stopped when the key
switch is turned to the "OFF" position.
2.
"ACC." In the "ACC" position, any accessory connections to the
electrical circuits can be operated. The engine will not operate
with the key switch in the "ACC" position.
3.
"ON." In the "ON" position, all electrical circuits and instruments
are operational.
4.
"START." In the "START" position the engine can be started.
NOTE: The key can only be removed with the key switch in the "OFF"
position.
b
Bilge blower switch (if equipped) Operates the bilge blower, if equipped
Start/Stop Panel
The start/stop panel allows the operator to start or stop an engine with the press of a single button. In dual engine applications,
each engine is controlled independently. For the start/stop panel to function, the key switch must be in the "ON" position.
28082
Dual engine start/stop panel, single engine similar
In single helm applications, the start/stop panel is optional.
In dual helm applications, a start/stop panel is optional at the main station and required at secondary stations. The ignition key
switch connector will be capped at helm 2.
