Section 2 - Getting to Know Your Power Package
90-8M0069751 eng APRIL 2012 Page 17
Remote Controls
Your boat may be equipped with a Mercury Precision Parts or Quicksilver remote control. All controls may not have all features
shown. Consult your dealer for a description or demonstration of your remote control.

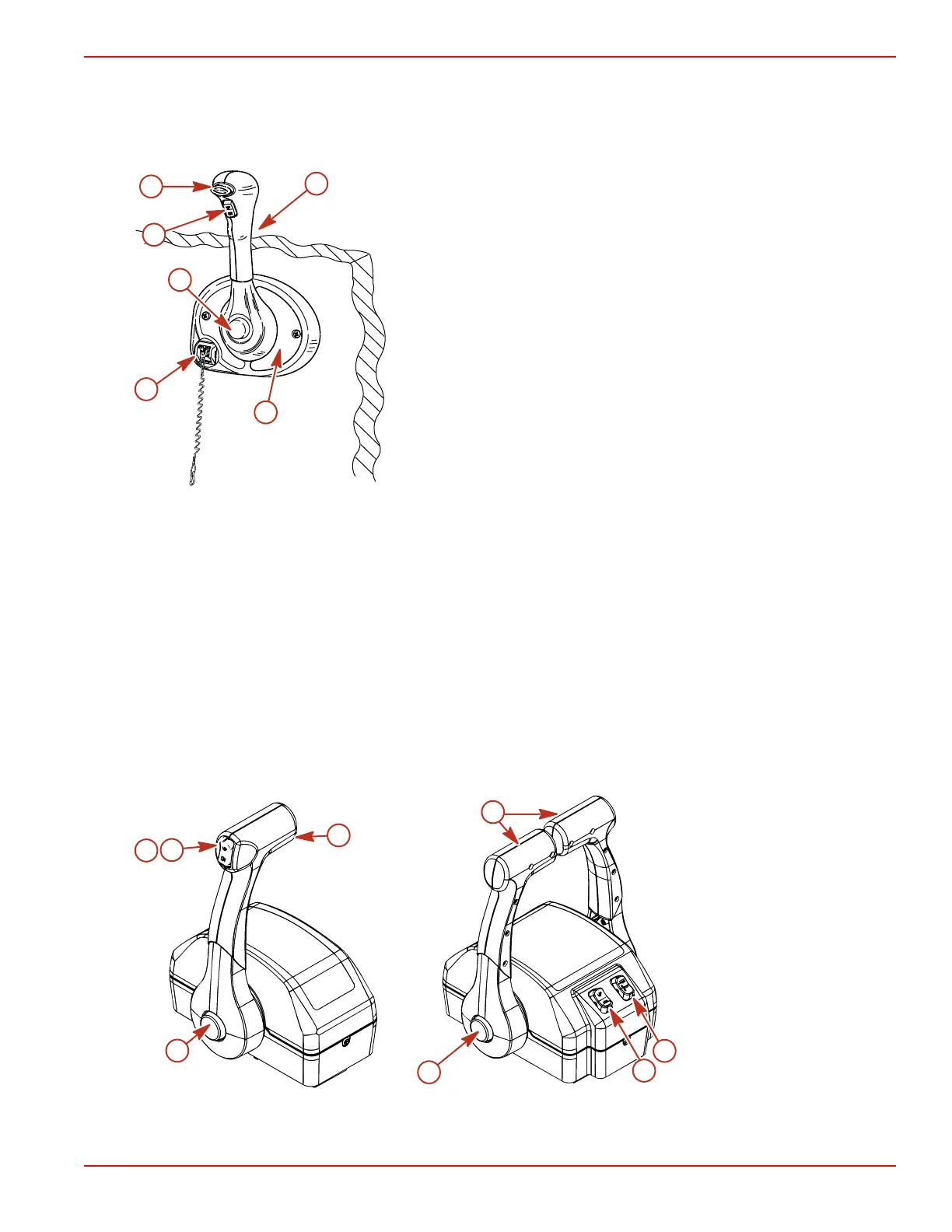

Panel Mount Features
a - Neutral lock button
b - Throttle–only button
c - Lanyard stop switch
d - Control handle tension adjustment screw
e - Control handle
f - Trim/tilt button
Neutral Lock Button. Prevents accidental shift and throttle engagement. Neutral lock button must be pushed into move the
control handle out of neutral.
Throttle–Only Button. Allows engine throttle advancement without shifting the engine. This is done by disengaging the shift
mechanism from the control handle. The throttle–only button can be depressed only when the remote control handle is in the
neutral position, and should only be used to assist in starting the engine.
Lanyard Stop Switch. Provides an emergency engine shut down if the boat operator (when attached to the lanyard) moves far
enough away from the operator's position to pull the lanyard key that activates the engine stop switch.
Control Handle. Operation of the shift and throttle are controlled by the movement of the control handle. Push the control
handle forward from neutral with a quick, firm motion to the first detent for forward gear. Continue pushing forward to increase
speed. Pull the control handle back from neutral with a quick, firm motion to the first detent for reverse gear and continue
pushing back to increase speed.
Control Handle Tension Adjustment Screw (not visible). This screw is used to adjust the effort required to move the remote
control handle. Refer to the instructions provided with the remote control for complete adjustment instructions.
Trim/Tilt Button. Refer to Power Trim.
Console Mount Features
a - Throttle–only button
b - Control handle
c - Power trim switch
d - Trailer switch
