Mercury Sterndrive QSD 2.0 User Manual

Section 5 - Maintenance
90-8M0069751 eng APRIL 2012 Page 105
Description Nm lb–in. lb–ft
Bravo Three front propeller nut 136 – 100
5. Slide the aft thrust hub onto the propeller shaft with the tapered side toward the propeller hub.
6. Align the splines and install the aft propeller.
7. Install the propeller nut and torque.
NOTE: The propeller torque stated is a minimum torque value.
Description Nm lb–in. lb–ft
Bravo Three rear propeller nut 81 – 60
8. Install the propeller shaft anode and screw and torque.

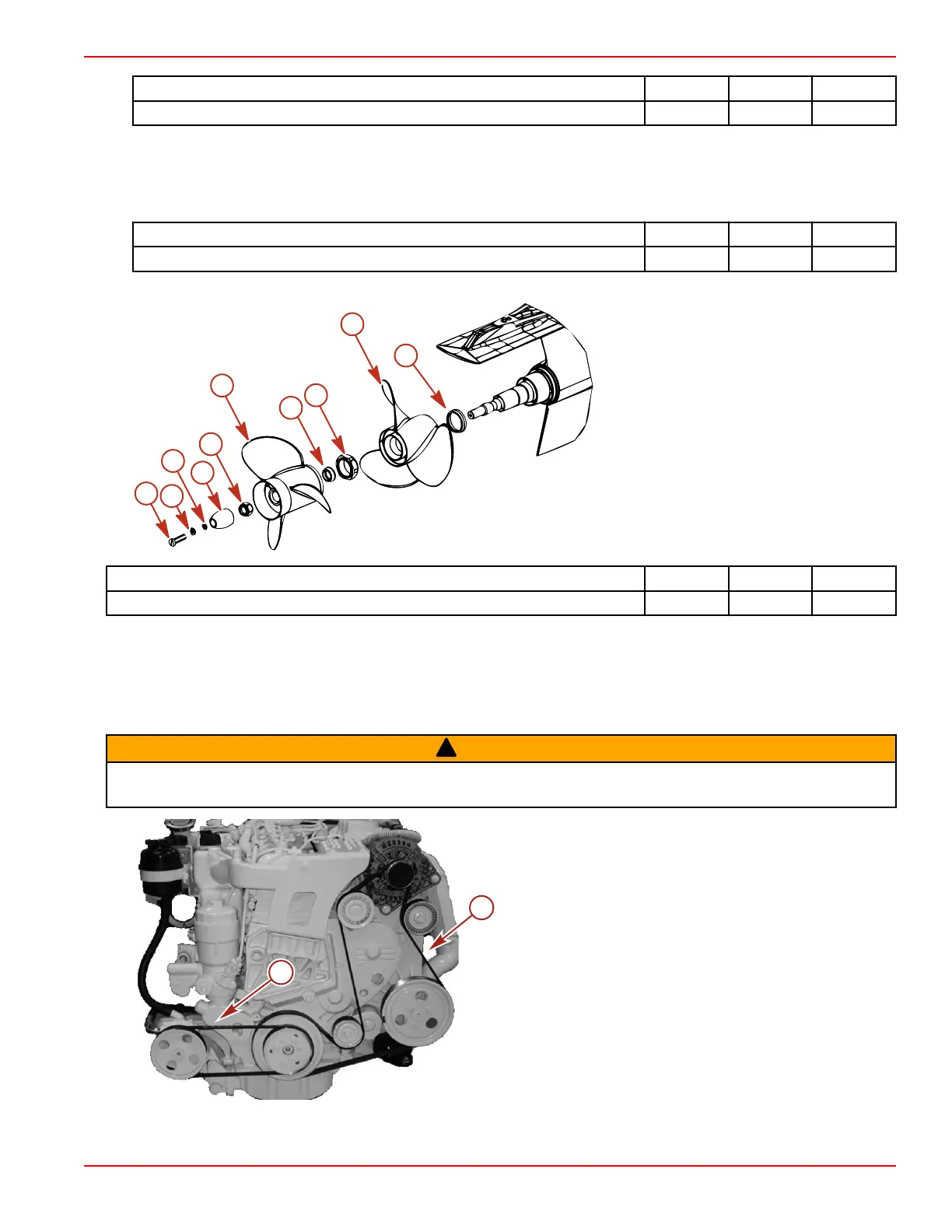

Bravo Three
a - Rear propeller nut
b - Rear propeller
c - Rear propeller thrust hub
d - Front propeller nut
e - Front propeller
f - Front propeller thrust hub
g - Propeller shaft anode screw
h - Flat washer
i - Star washer
j - Propeller shaft anode
Description Nm lb–in. lb–ft
Propeller shaft anode screw 19 168 –
Drive Belts
QSD 2.0 Drive Belts
All drive belts must be periodically inspected for tension and condition, such as excessive wear, cracks, fraying, or glazed
surfaces.
!
WARNING
Inspecting the belts with the engine running may cause serious injury or death. Turn off the engine and remove the ignition
key before adjusting tension or inspecting belts.
QSD 2.0L front cover removed
a - Serpentine belt
b - Power assisted steering belt
e
f
a
b
c
d
5304
g
h
i
j
a
b
25603
